Intel® Server System M50CYP1UR Family System Integration and Service Guide
61
5. System Service – System Features Overview
This chapter provides service personnel a reference to identify and locate the features associated with the
Intel® Server System M50CYP1U family.
5.1 Front Drive Bay Options

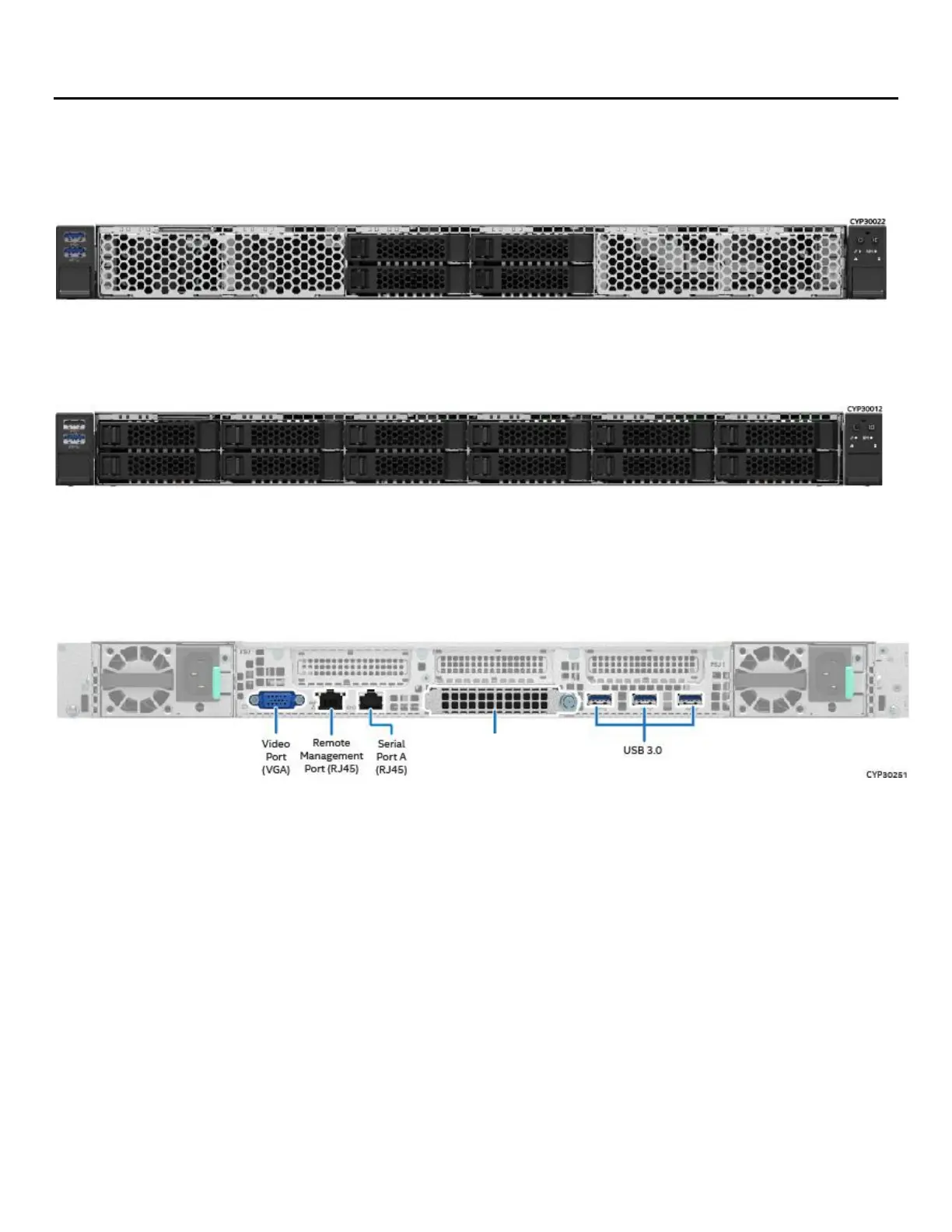

Figure 63. 4 x 2.5” Front Drive Bay Configuration
Figure 64. 12 x 2.5” Front Drive Bay Configuration
5.2 Back Panel, Front Control Panel, Front I/O Features
Figure 65. Back Panel Features
