3.8.2 Intel® SAS Interposer Card Removal

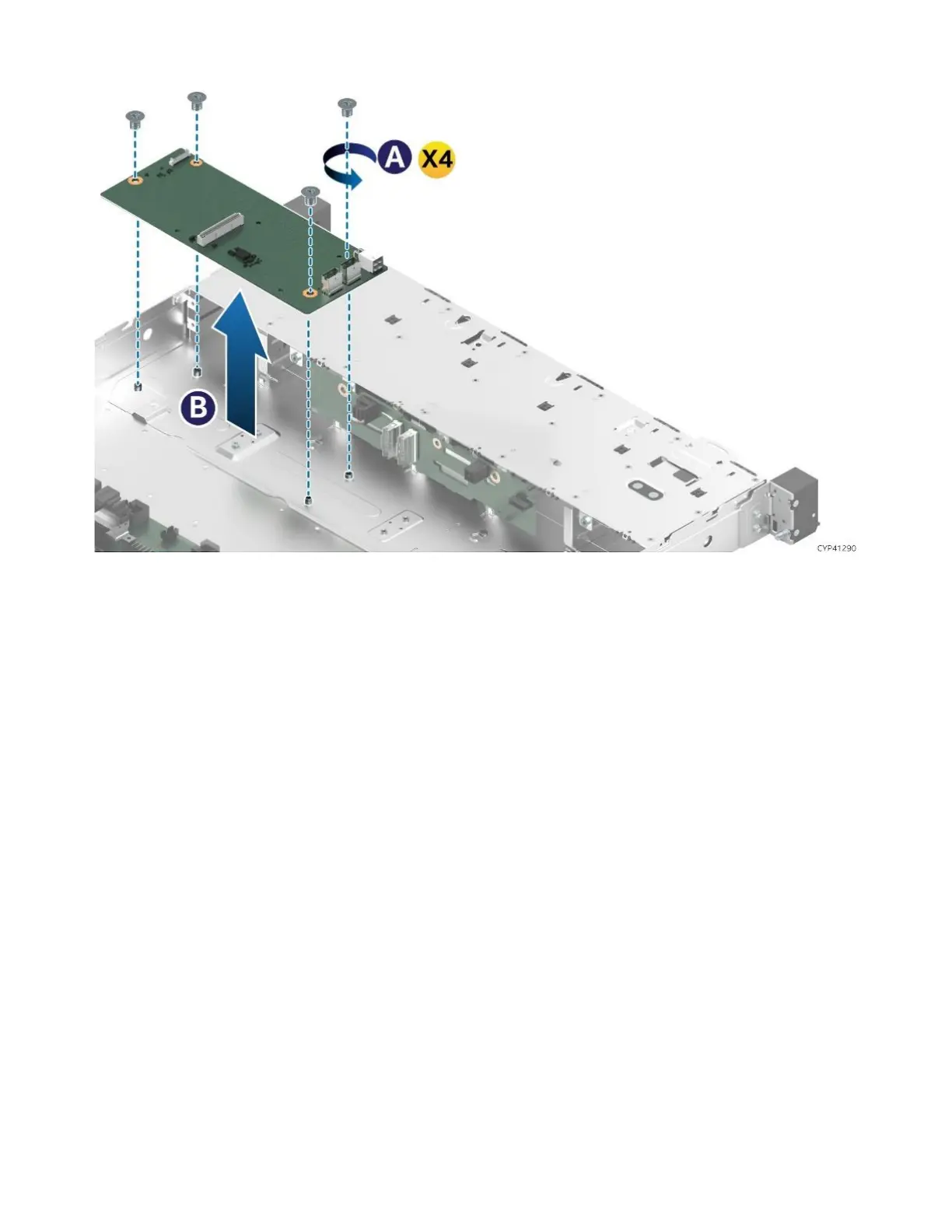

Figure 56. Intel® SAS Interposer Card Removal
1. Power off the system and disconnect the power cable(s).
2. Remove the system top cover (see Section 3.1.1).
3. If an installed RAID module needs to be removed (see Section 3.8.4).
4. Disconnect all the connectors attached to the SAS interposer card.
5. Unscrew the four screws on the SAS interposer card (see Letter A).
6. Lift the SAS interposer card from the chassis all the way out (see Letter B).
7. Reinstall the system top cover (see Section 3.1.2).
