3.1 System Cover Removal / Installation
The system top cover consists of two panels – one over the front half of the system and one over the back
half of the system. To maintain system thermals, both top cover panels must always be in place when the
system is operational.
Required Tools and Supplies
• Anti-static wrist strap and conductive workbench pad (recommended)
• Phillips* head screwdriver #1
3.1.1 System Cover Removal
Removal of both top cover panels is necessary when installing or replacing any system component within the
server chassis. Before removing the top cover, power down the system and unplug all peripheral devices and
the power cable(s).

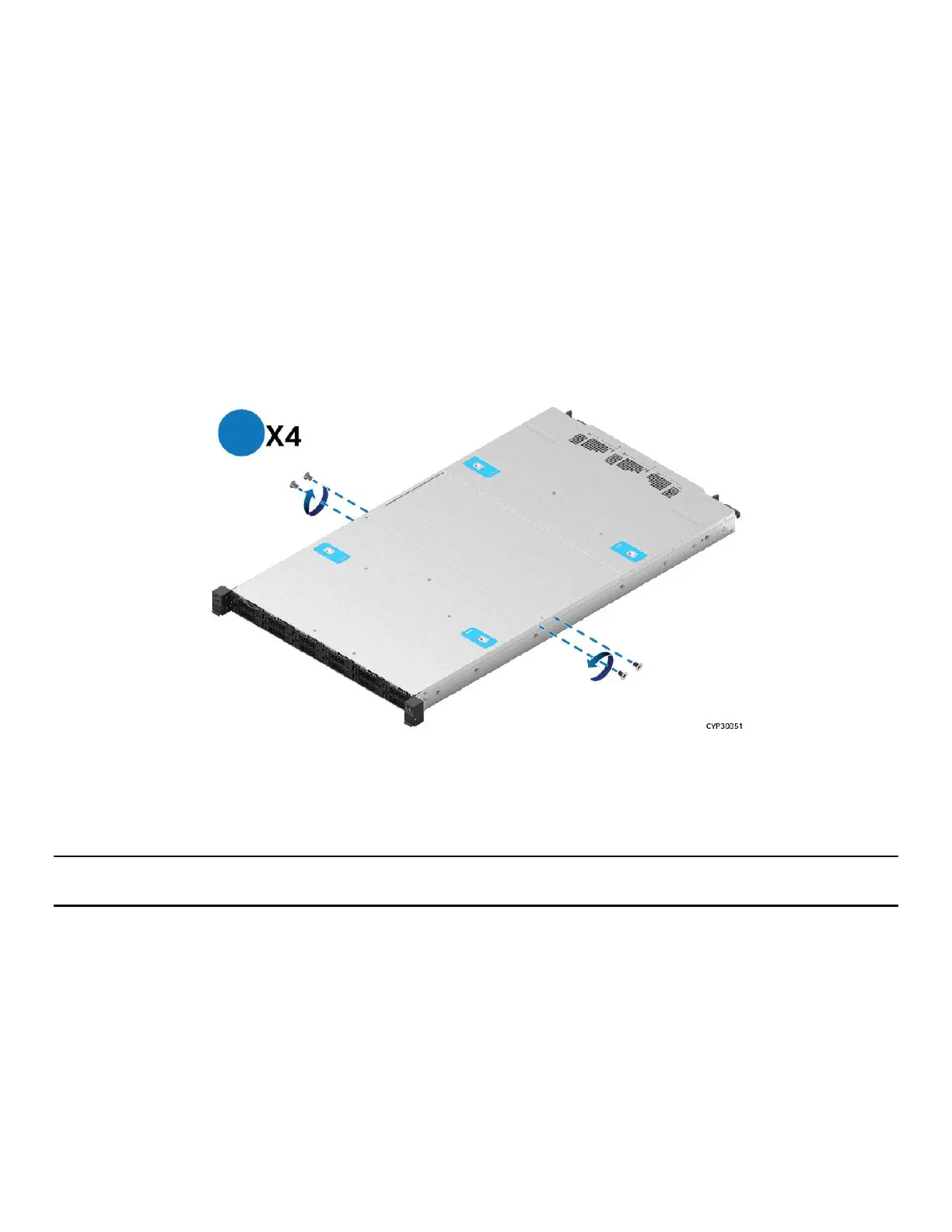

Figure 19. System Top Cover Panel Shipping Screws
The system ships from the factory with the front system cover panel and back system cover panel screwed
to the chassis. A total of four screws, one on each side of the front panel and one on each side of the back
panel, need to be removed to detach both top cover panels from the chassis.
Note: A non-skid surface or a stop behind the server system may be needed to prevent the server system
from sliding on the work surface.
