3.8.3 Intel® SAS RAID Module Installation
The Intel® SAS RAID Module installation requires that the SAS interposer card is already installed. See the
SAS interposer card installation steps in Section 3.8.1.

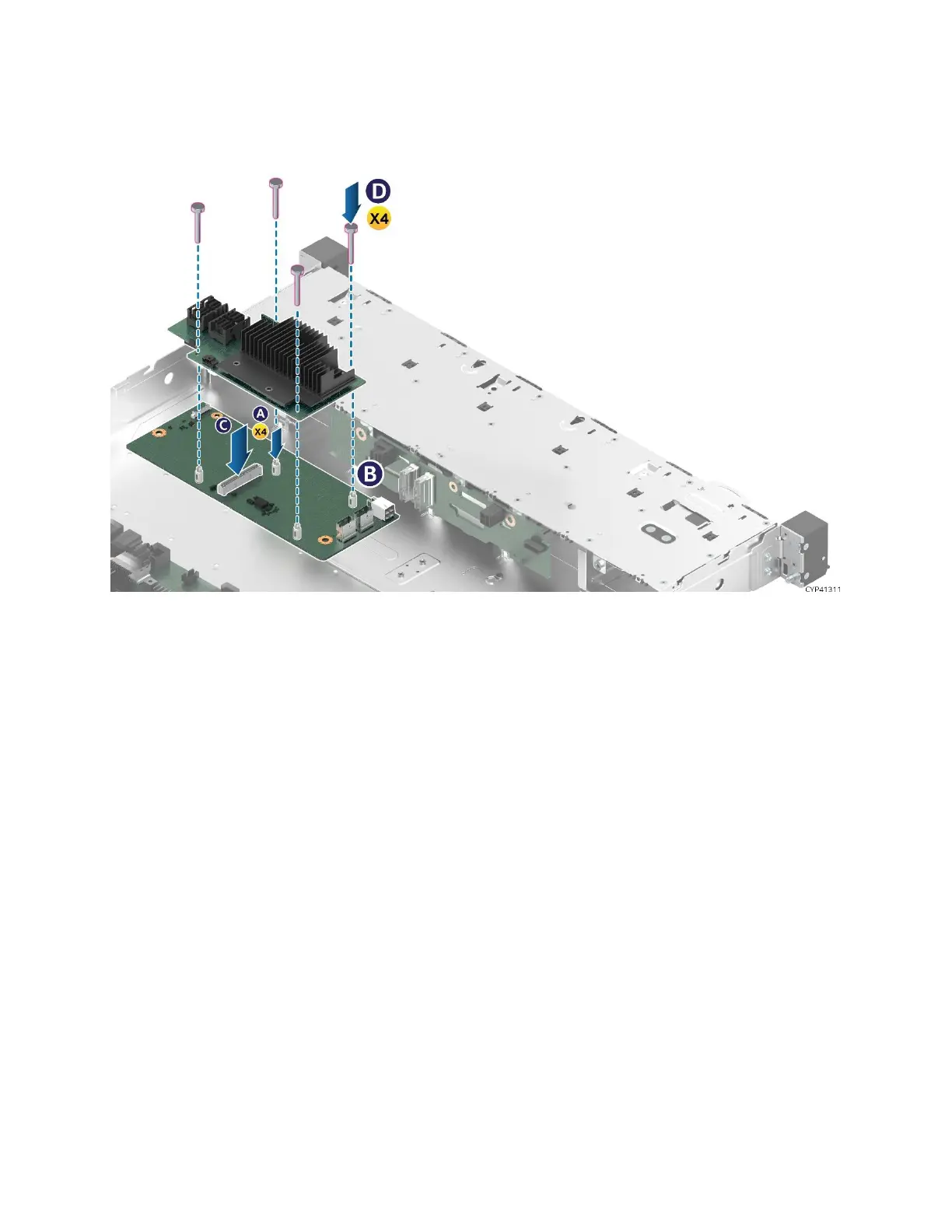

Figure 57. Intel® SAS RAID Module Installation
1. Power off the system and disconnect the power cable(s).
2. Remove the system top cover (see Section 3.1.1)
3. Remove the SAS RAID module from its packaging.
4. Insert the four plastic-barrel standoffs into the matching holes in the SAS interposer card (see Letter A).
5. Align the SAS RAID module mounting holes over the four standoffs (see Letter B).
6. Lower the SAS RAID module onto the SAS interposer card.
7. Press down firmly until the SAS RAID module connector is fully seated in the matching connector on the
SAS interposer card (see Letter C). The module should be firmly seated over each standoff.
8. Insert a locking pin into each standoff (see Letter D).
9. Attach all the connectors as required.
10. Reinstall the system top cover (see Section 3.1.2).
