Intel® Server System M50CYP1UR Family System Integration and Service Guide
22

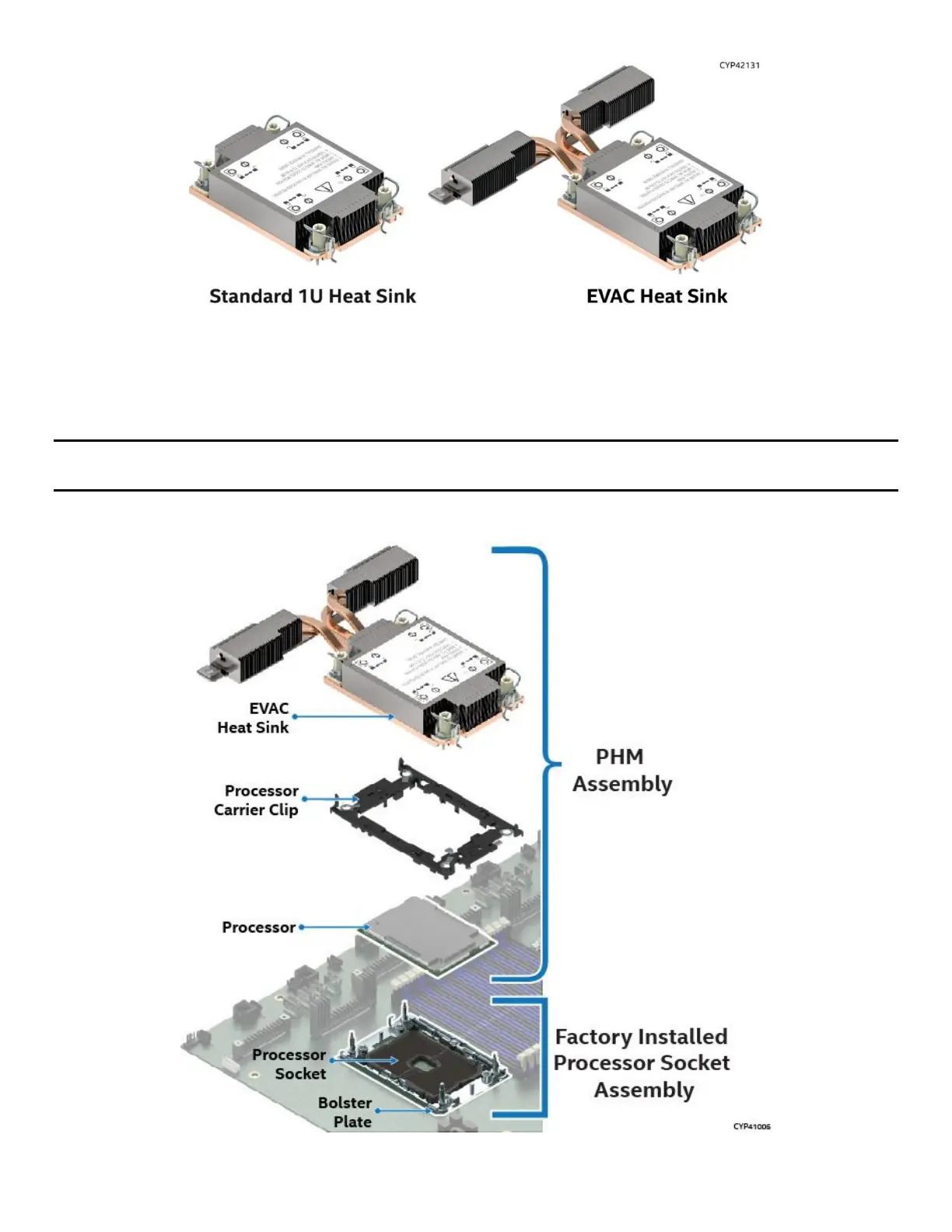

Figure 5. 1U Heat Sinks
A processor heat sink module (PHM) assembly and processor socket assembly are necessary to install a
processor to the server board. Figure 6 identifies each component associated with the PHM and processor
socket assemblies.
Note: The following sections show the EVAC heat sink in the figures, but the procedures described apply to
both heat sink types.
Figure 6. Processor Heat Sink Module (PHM) Reference Diagram
