Intel® Server System M50CYP1UR Family System Integration and Service Guide
36
3.2.1 Riser Card Bracket Removal
As shown in the figures above, there are multiple types of riser card brackets included with the system. The
instructions for installation are the same for each.

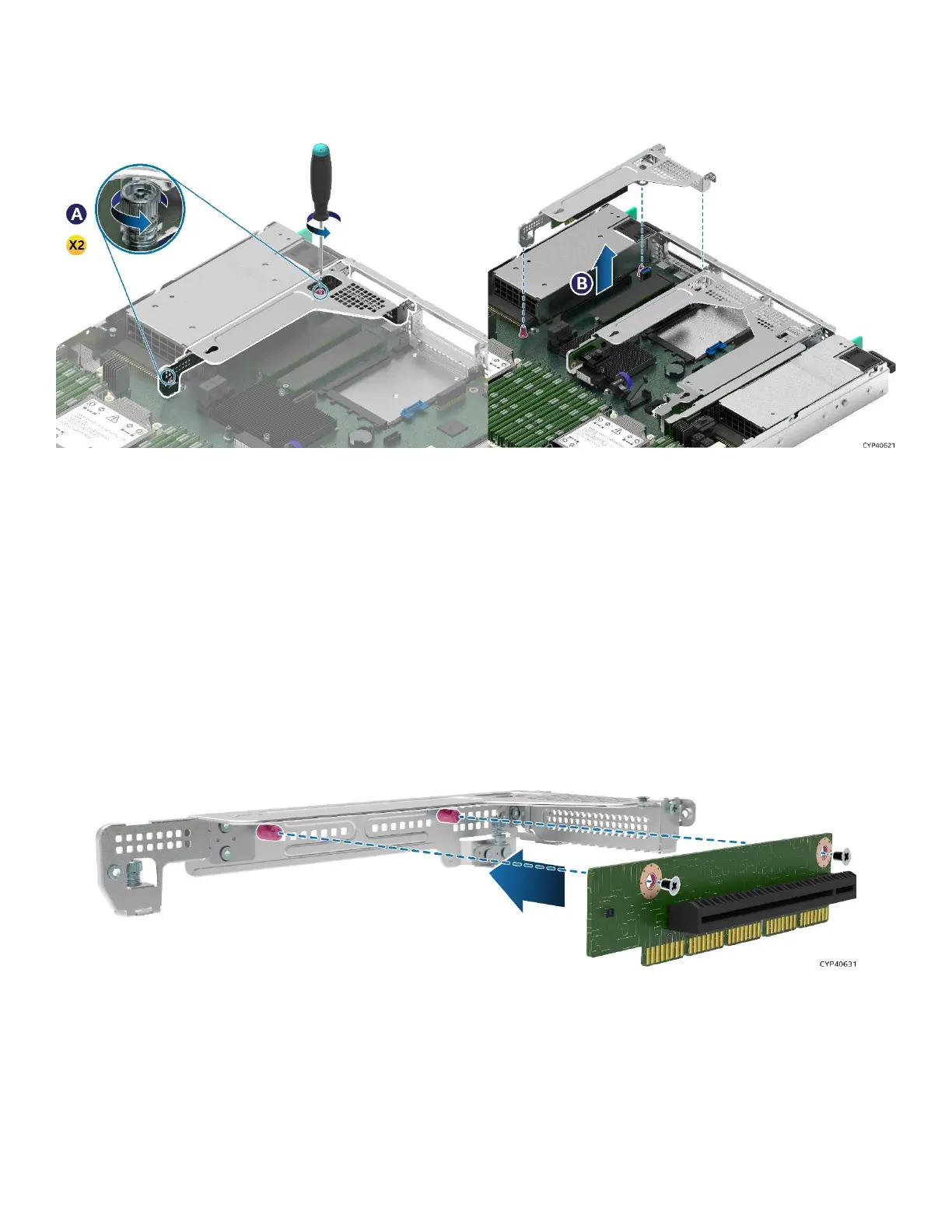

Figure 26. Riser Card Bracket Removal
1. Power off the system and disconnect the power cable(s).
2. Remove the system top cover (see Section 3.1.1).
3. If present, disconnect all cables (internal or external) that may be attached to the riser assembly.
4. Loosen the two screws on the side of the riser card bracket (see Letter A).
5. Grasp the riser card bracket with both hands and carefully pull it up and away from the chassis.
(see Letter B).
6. Reinstall the system top cover (see Section 3.1.2).
3.2.2 Riser Card Installation
The following installation instructions for riser card to bracket are the same for all included brackets and
supported riser card options.
Figure 27. Riser Card Installation onto the Bracket
1. Align and mount the riser card to the bracket using the mounting holes.
2. Using the fastener screws, secure the riser card to the bracket. Tighten to 5 in-lb.
