Intel® Server System M50CYP1UR Family System Integration and Service Guide
35

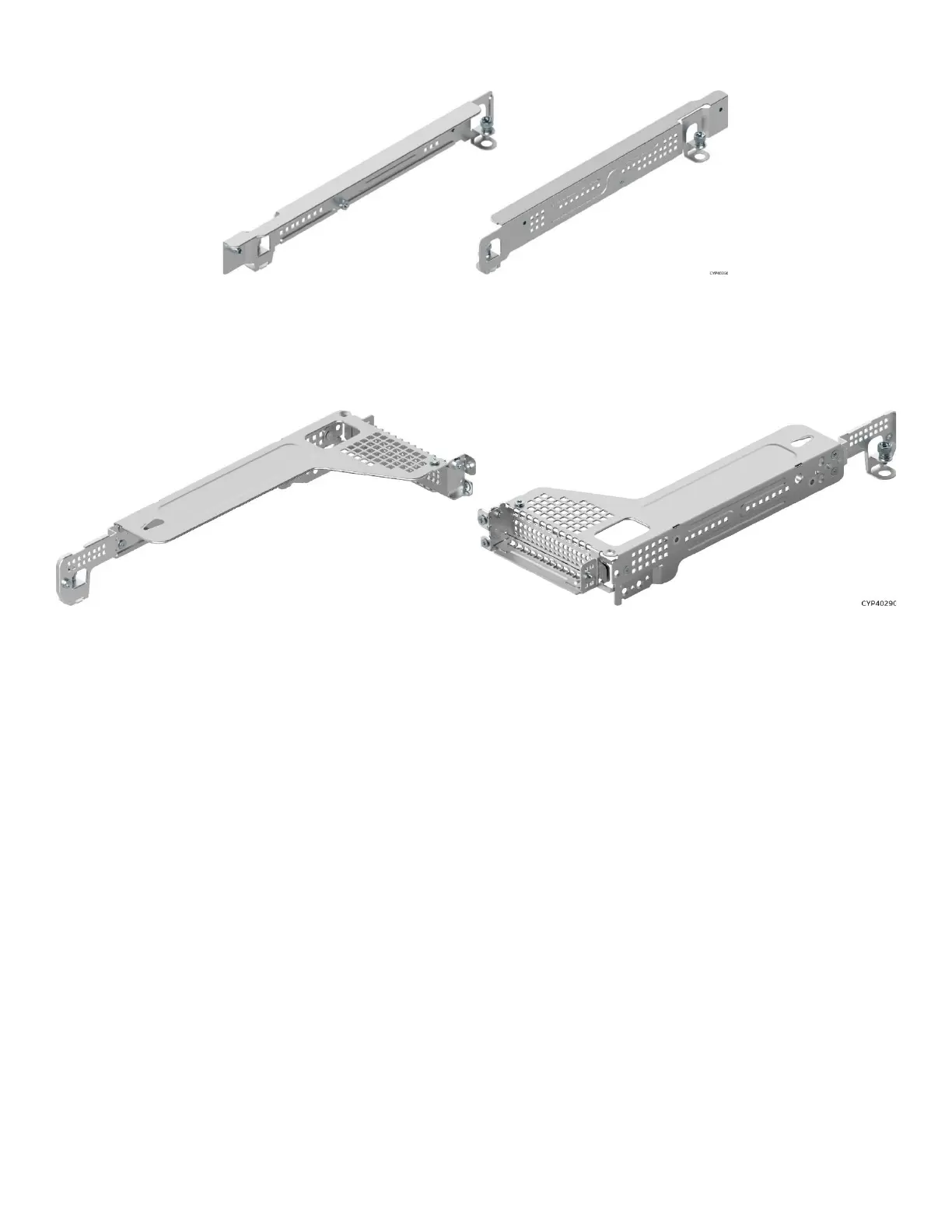

Figure 24. Bracket for Riser Card on Riser Slot #3– Two Views (Support for NVMe* Riser Only)
Figure 25. Bracket for PCIe* Interposer Riser Card – Two Views
Required Tools and Supplies
• Anti-static wrist strap and conductive workbench pad (recommended)
• Phillips* head screwdriver #1
For more information about the riser card options and supported add-in cards, see the Intel® Server System
M50CYP1UR Family Technical Product Specification and the Intel® Server M50CYP Family Configuration
Guide for ordering information.
