Intel® Server System M50CYP1UR Family System Integration and Service Guide
53
3.7.2 Intel® VROC 7.5 (VMD NVMe* RAID) Key Removal

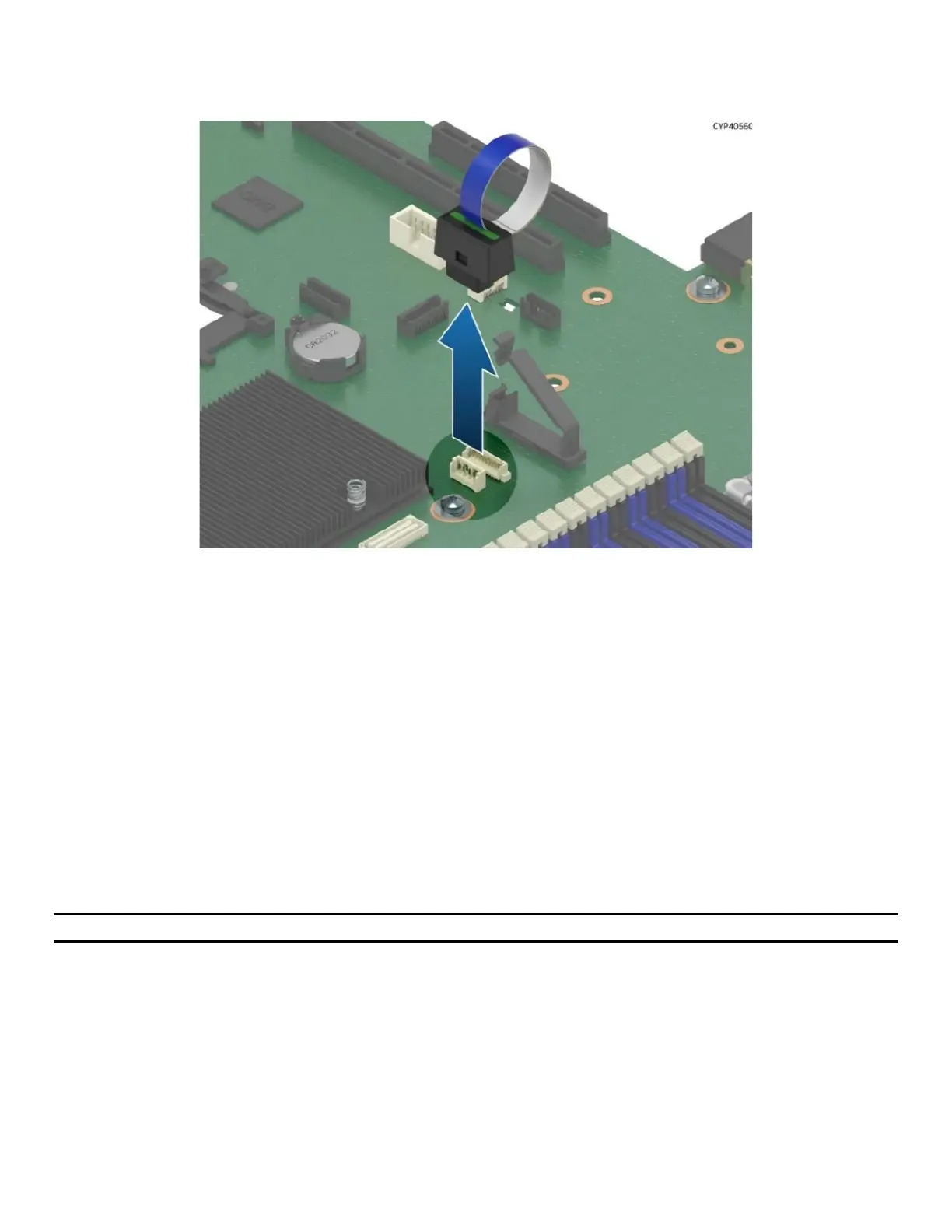

Figure 54. Intel® VROC Key Removal
1. Power off the system and disconnect the power cable(s).
2. Remove the system top cover (see Section 3.1.1).
3. Using the key pull tab, pull the key up until it disengages from the connector.
4. Reinstall the system top cover (see Section 3.1.2).
3.8 Intel® SAS Interposer Card and SAS RAID Module Installation / Removal
This section provides instructions to install / remove an Intel® SAS interposer card and Intel® SAS Raid
module. Refer to the Intel® Server M50CYP Family Configuration Guide for available options.
Required Tools and Supplies
• Anti-static wrist strap and conductive workbench pad (recommended)
• Phillips* head screwdriver #1
Note: A SAS interposer card needs to be installed before installing a SAS RAID module.
