Intel® Server System M50CYP1UR Family System Integration and Service Guide
52
3.7.1 Intel® VROC 7.5 (VMD NVMe* RAID) Key Installation

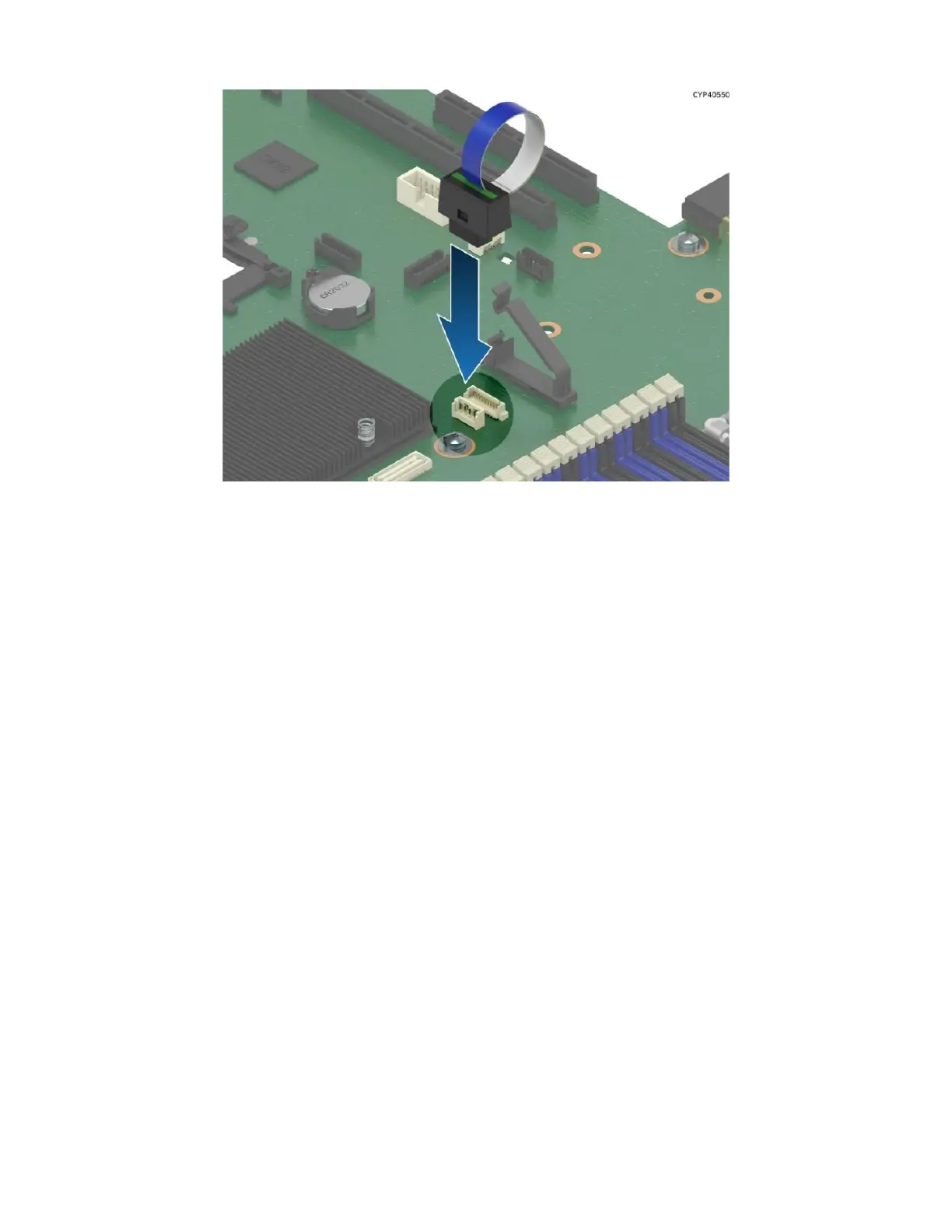

Figure 53. Intel® VROC Key Insertion
1. Power off the system and disconnect the power cable(s).
2. Remove the system top cover (see Section 3.1.1).
3. Remove the Intel® VROC Key from its packaging.
4. Locate the white 4-pin key connector near the CR2032 battery.
5. To install the key, place it over the connector and confirm the orientation of the key matches that of the
connector.
6. Press the key down onto the connector.
7. Reinstall the system top cover (see Section 3.1.2).
