Peripheral and Hard Drive Support Intel
®
Entry Server Chassis SC5299-E TPS
Revision 3.1
Intel order number D37594-005
118

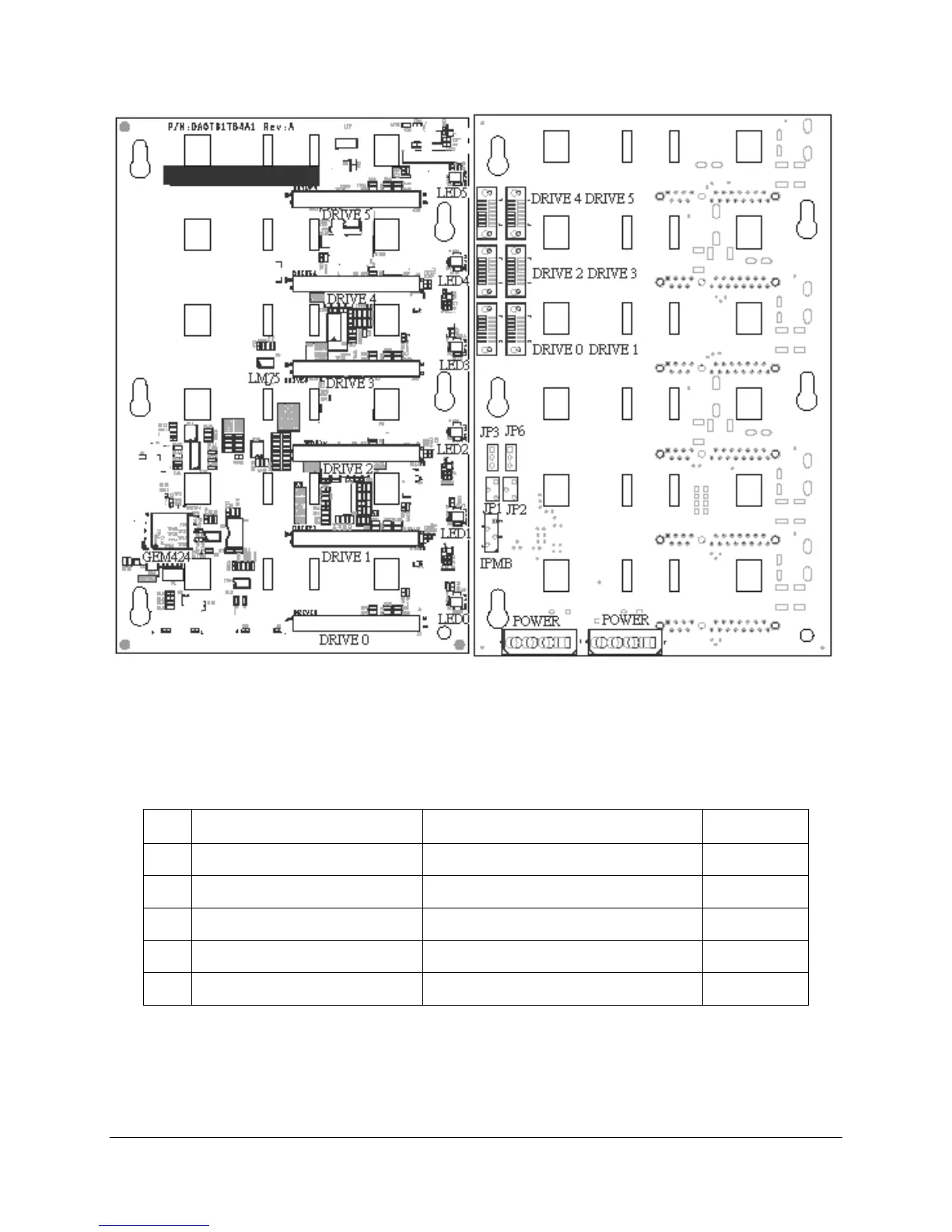

Figure 26. Intel
®
Entry Server Chassis SC5299-E 6HDD SATA Hot Swap Backplane Board Layout
4.3.2.13 Connector Specifications
Table 138. SATA Hot-swap Backplane Connector Specifications
Qty Manufacturer and Part Number Description Reference
6 Amphenol G16A2111 SMD 7-pin SATA Control J1 – J6
6 Foxconn LD28223-S03 THM 22-pin SATA Drive J7 – J12
1 Molex 22-43-6040 THM 4-pin Header – IPMB J13 J13
1 Molex 22-43-6030 THM 3-pin Header – I
2
C JP1, JP JP1
2 Molex 8981-04V THM 4-pin Connector – Power JP4, JP5
