Power Sub-system Intel
®
Entry Server Chassis SC5299-E TPS
Revision 3.1
Intel order number D37594-005
84
Notes:
1. All dimensions are in mm.
2. All tolerances are +15 mm/-0 mm
3. Install 1 tie wrap within 12mm of the power supply cage.
4. Mark reference designator on each connector.
5. Tie wrap each harness at approximately mid point.

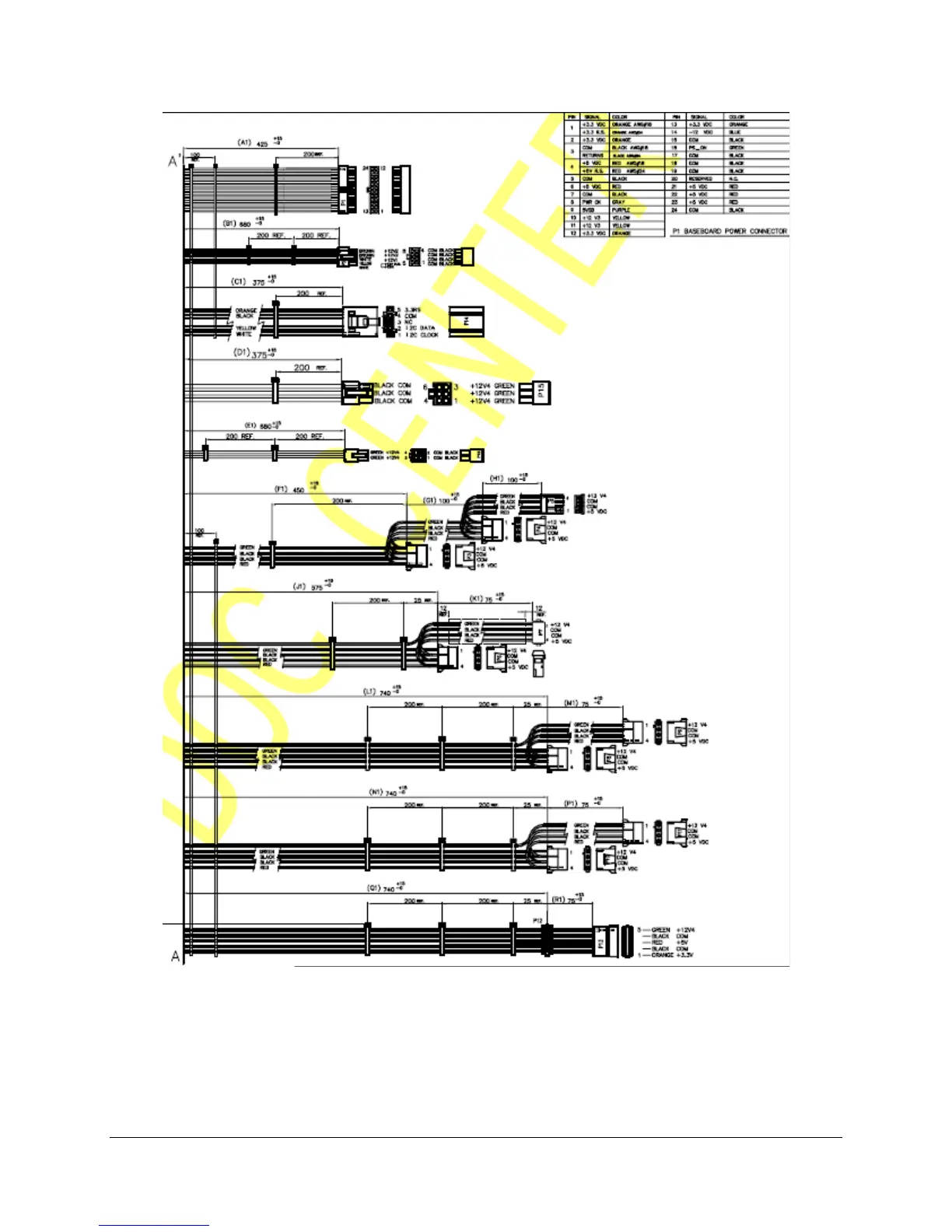

Figure 18. Output Harness for 670-W Power Supply
