Intel
®
Entry Server Chassis SC5299-E TPS Power Sub-system
Revision 3.1
Intel order number D37594-005
25
2.2.1 Mechanical Outline
16 mm
138 mm
150 mm
6 mm 114 mm
74 mm
AC
Inlet
Warning
Label
6x32 THREADED HOLE
(4x)
86 mm
140 mm
15 mm
97.2 mm
110 mm
130 mm
11 mm
146 mm
Label Area
Up
55 mm
12 mm
Airflow

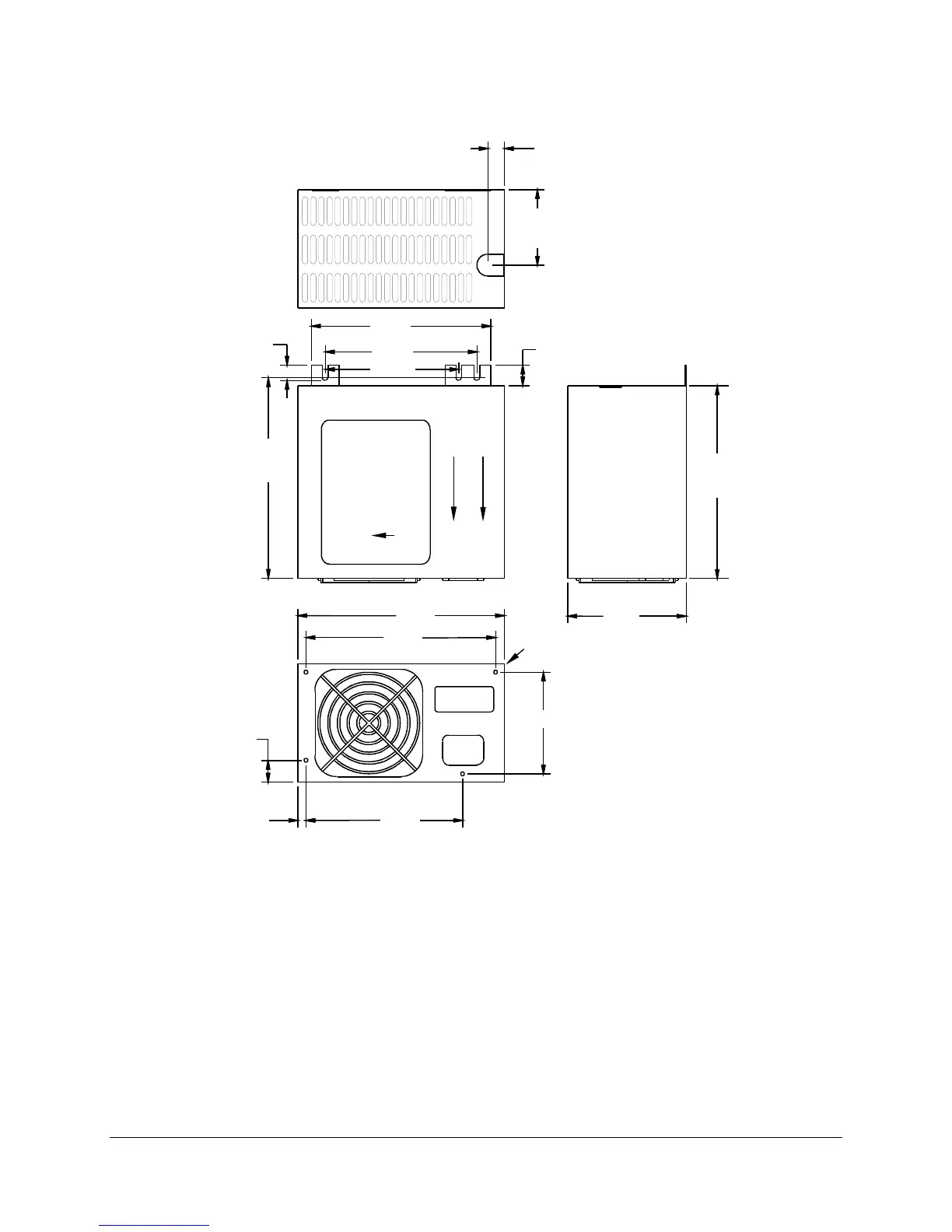

Figure 9. Mechanical Drawing for Power Supply Enclosure
2.2.1.1 Airflow Requirements
The power supply shall incorporate an 80-mm fan for self cooling and system cooling. The
airflow direction shall be from the wire internal face of the power supply to the external face. The
power supply shall have adequate airflow with the following system airflow restriction.
