Intermec EasyCoder 501 E – Installation & Operation Ed. 1130
Appendix 2 Media Specifi cations
Media, cont.

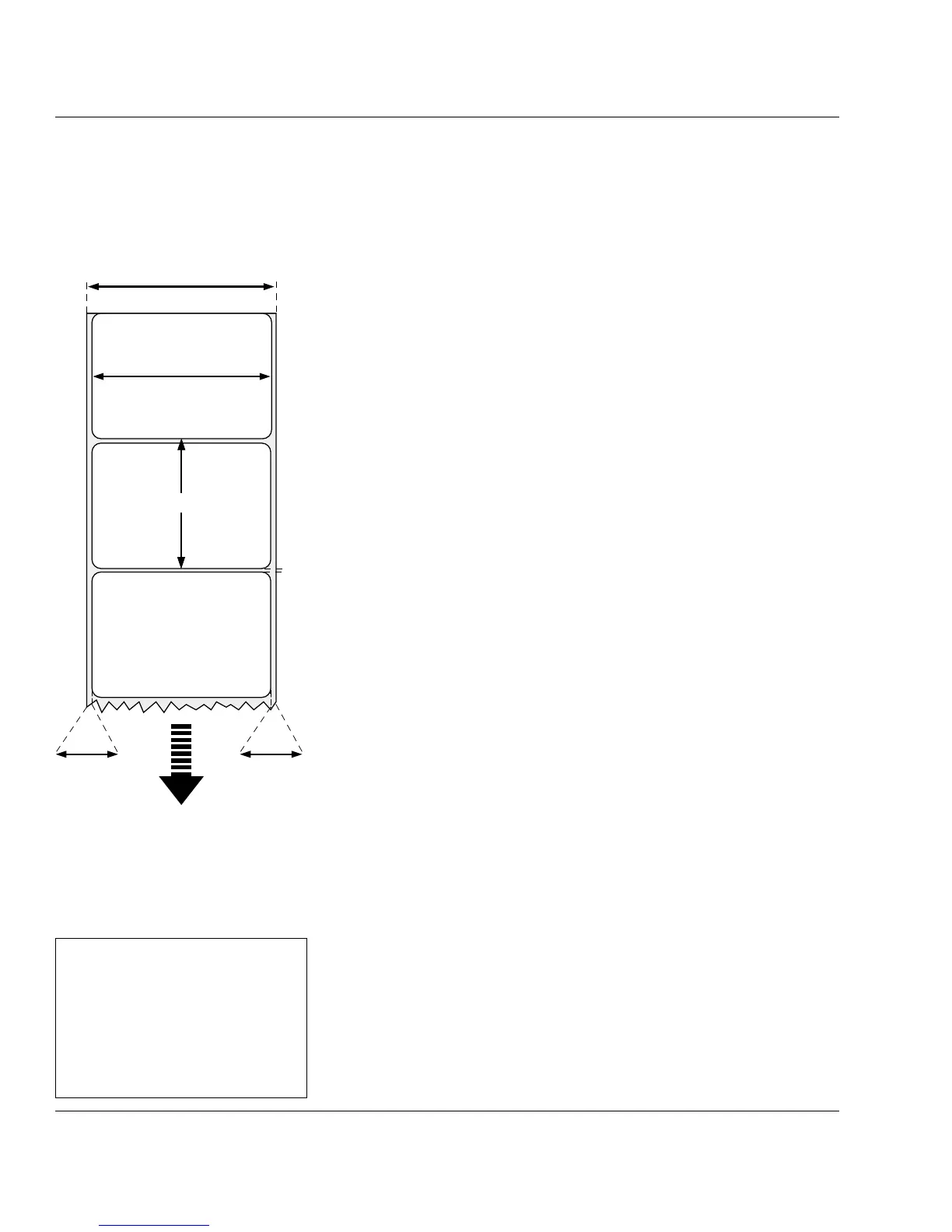

⇐ a ⇒ Media Width (including liner)
Maximum: 120.0 mm (4.72 inches)
Minimum: 25.4 mm (1.00 inches)
⇐ b ⇒ Liner
The liner must not extend more than a total of 1.6 mm (0.06
inches) outside the labels and should protrude equally on both side.
Recommended min. transparency: 40% (DIN 53147).
⇐ c ⇒ Label Width (excluding liner)
Maximum: 118.4 mm (4.66 inches)
Minimum: 23.8 mm (0.94 inches)
⇐ d ⇒ Label Length
Maximum (8 dots/mm)
1
: 1875 mm (73.8 inches)
Maximum (11.81 dots/mm)
1
: 1250 mm (49.2 inches)
Minimum (all): 10 mm (0.39 inches)
⇐ e ⇒ Label Gap
Maximum: 10.0 mm (0.39 inches)
Recommended: 1.6 mm (0.06 inches)
Minimum: 1.2 mm (0.05 inches)
The adjustable label stop sensor must be able to detect the extreme
front and rear edges of the labels. Therefore, do not use a larger inner
core radii than can be compensated for by adjusting the sensor’s
position, that is, approximately 50 mm (1.97 inches).
Media Type Setup
• Label (w gaps)
Self-Adhesive Labels
a
b
c
e
SELF-ADHESIVE
LABELS
b
d
FEED
DIRECTION
1
/. The last third of a label (or
the equivalent) cannot be used
for printing, that is, the maxi-
mum print length is 1250 mm
(49.2 inches) at 8 dots/mm and
833 mm (32.8 inches) at 11.81
dots/mm.
