New Line
Selects the character(s) transmitted from the printer to specify the
switching to a new line. There are three options:
• CR/LF ASCII 13 dec. + ASCII 10 dec. (default)
• LF ASCII 10 dec.
• CR ASCII 13 dec.
LSS Adjustment
The LSS is a photo-electric detection device that controls the media
feed. Situated inside the printing mechanism, it detects the front
edges of the labels, slits in tickets or tags, or the rear edges of black
marks on the back side of the media.
If the printer is set up for “Label (w gaps)”, “Ticket (w gaps)”,
“Fix length strip”, or “Var. length strip”, a narrow beam of light
is emitted from the upper part of the LSS and received by the
sensor in the lower part.
Non-transparent media will block the beam completely, whereas
semi-transparent liner between labels will allow some of the light
to pass through.
Detection gaps in the continuous stock cause no interference
at all.
An out-of-paper condition is assumed, when no interference to the
beam has been detected within a feed length corresponding to the
distance between the dot line on the printhead and the sensor.
Setup Parameters, cont.
Detection
• LSS Adjustment
• Feed Adjustment
Serial Communication,
cont.

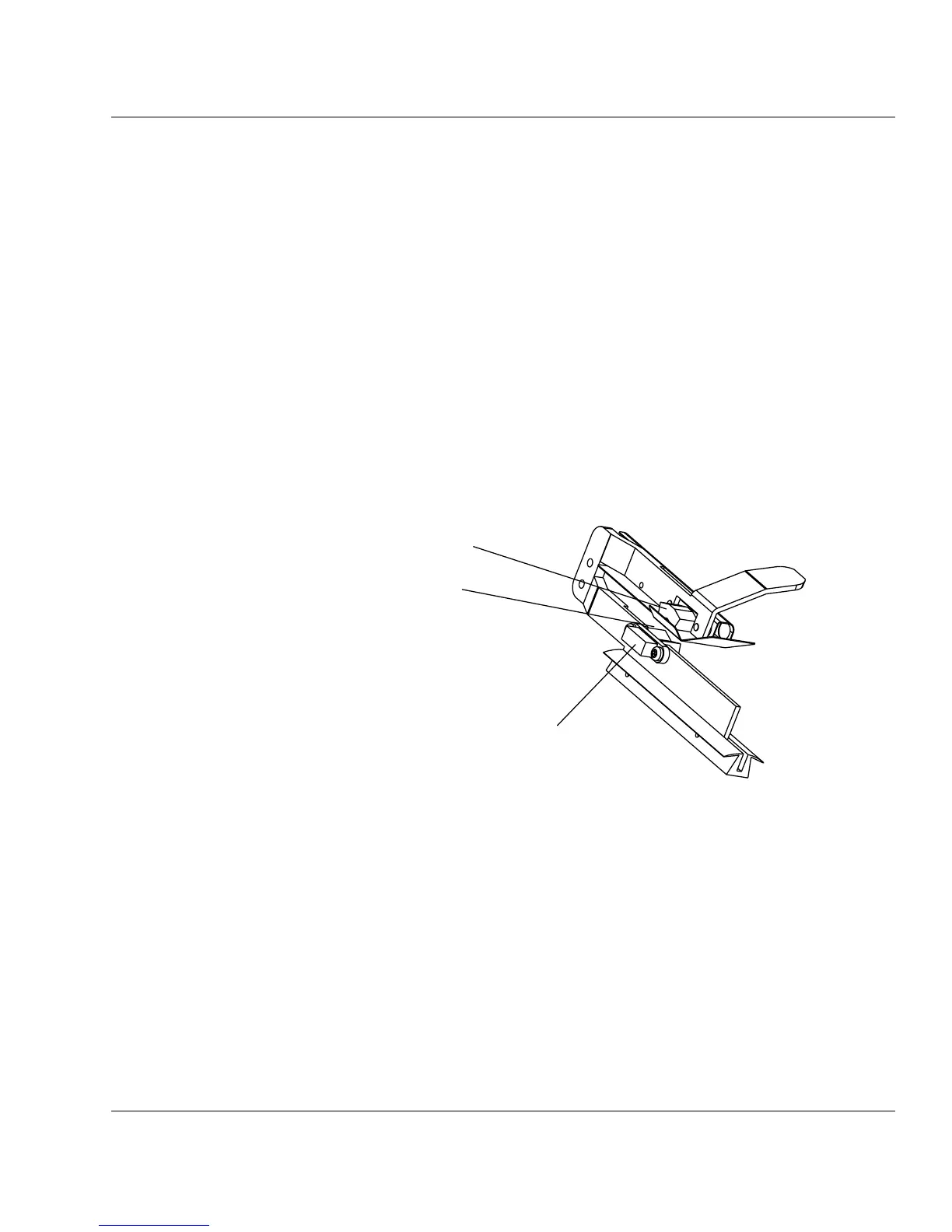

Light Emitter
Light Emitter and Receiver
Media Path
