Intermec EasyCoder 501 E – Installation & Operation Ed. 1132
Appendix 2 Media Specifi cations
Media, cont.

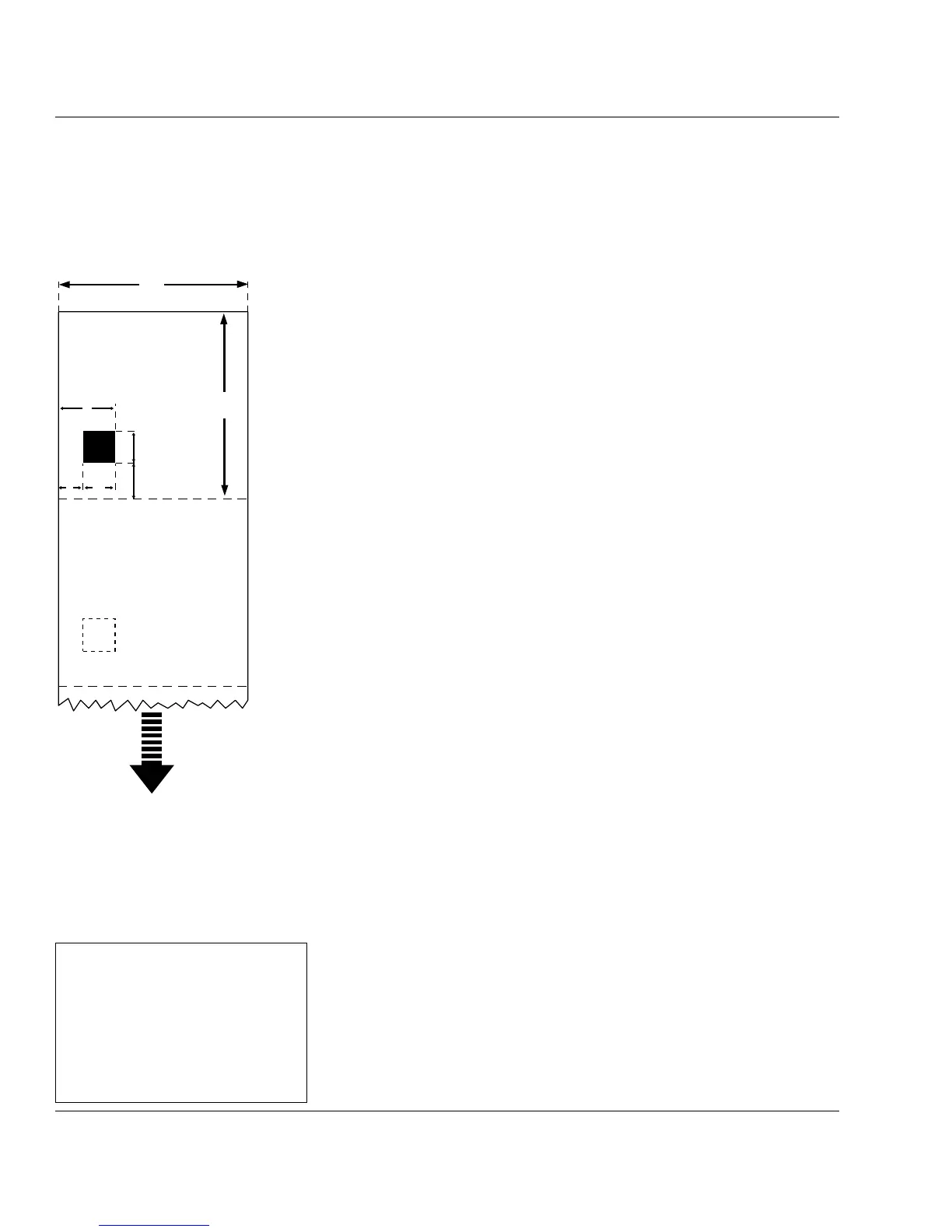

Tickets with Black Mark
⇐ a ⇒ Media Width
Maximum: 120.0 mm (4.72 inches)
Minimum: 25.4 mm (1.00 inches)
⇐ b ⇒ Copy Length
Maximum (8 dots/mm)
1
: 1875 mm (73.8 inches)
Maximum (11.81 dots/mm)
1
: 1250 mm (49.2 inches)
Minimum (all): 10 mm (0.39 inches)
⇐ c ⇒ Black Mark Offset
Max. offset: 40 mm (1.57 inches)
Min. offset: 0 mm (0.0 inches)
⇐ d ⇒ Black Mark Width
Minimum detectable width: 10 mm (0.4 inches)
⇐ e ⇒ Black Mark End
No restriction, but the LSS cannot detect the mark more than 50 mm
(1.97 inches) from the inner edge of the media.
⇐ f ⇒ Black Mark Height
Commonly used height: 12.5 mm (0.5 inches)
Minimum: 5.0 mm (0.2 inches)
⇐ g ⇒ Black Mark Y-Position
It is recommended to place the black mark as close to the front
edge of the ticket as possible and use a negative Stop Adjust value
to control the media feed, so the tickets can be properly torn or
cut off (see Chapter 7).
Perforation
It is recommended not to allow possible perforation to break the
edges of the media. Else there is a small risk that the web may be
partly separated before printing, causing a media jam.
Black Mark Color
The mark should be non-reflective carbon black on a whitish
background.
Important! Preprint that may interfere with the detection of the
black mark should be avoided on the back of the media. However,
the LBLCOND instruction allows the sensor to be temporarily
disabled to avoid unintentional detection, see Intermec Fingerprint
manuals.
Media Type Setup
• Ticket (w mark)
a
TICKETS
e
FEED
DIRECTION
f
dc
g
b
1
/. The last third of a label (or
the equivalent) cannot be used
for printing, that is, the maxi-
mum print length is 1250 mm
(49.2 inches) at 8 dots/mm and
833 mm (32.8 inches) at 11.81
dots/mm.
