Intermec EasyCoder 501 E User Manual

Intermec EasyCoder 501 E – Installation & Operation Ed. 1134
Appendix 3
WARNING!
Disconnect the power cord
before removing the cover.
Dangerous voltage!
CPU Board
The CPU board is situated in the electronics compartment on the left
side of the printer’s center section. To gain access to the electronics
compartment, proceed as follows:
• Switch off the printer and disconnect the power cord. The
CPU board contains power supply circuits with dangerous
voltage.

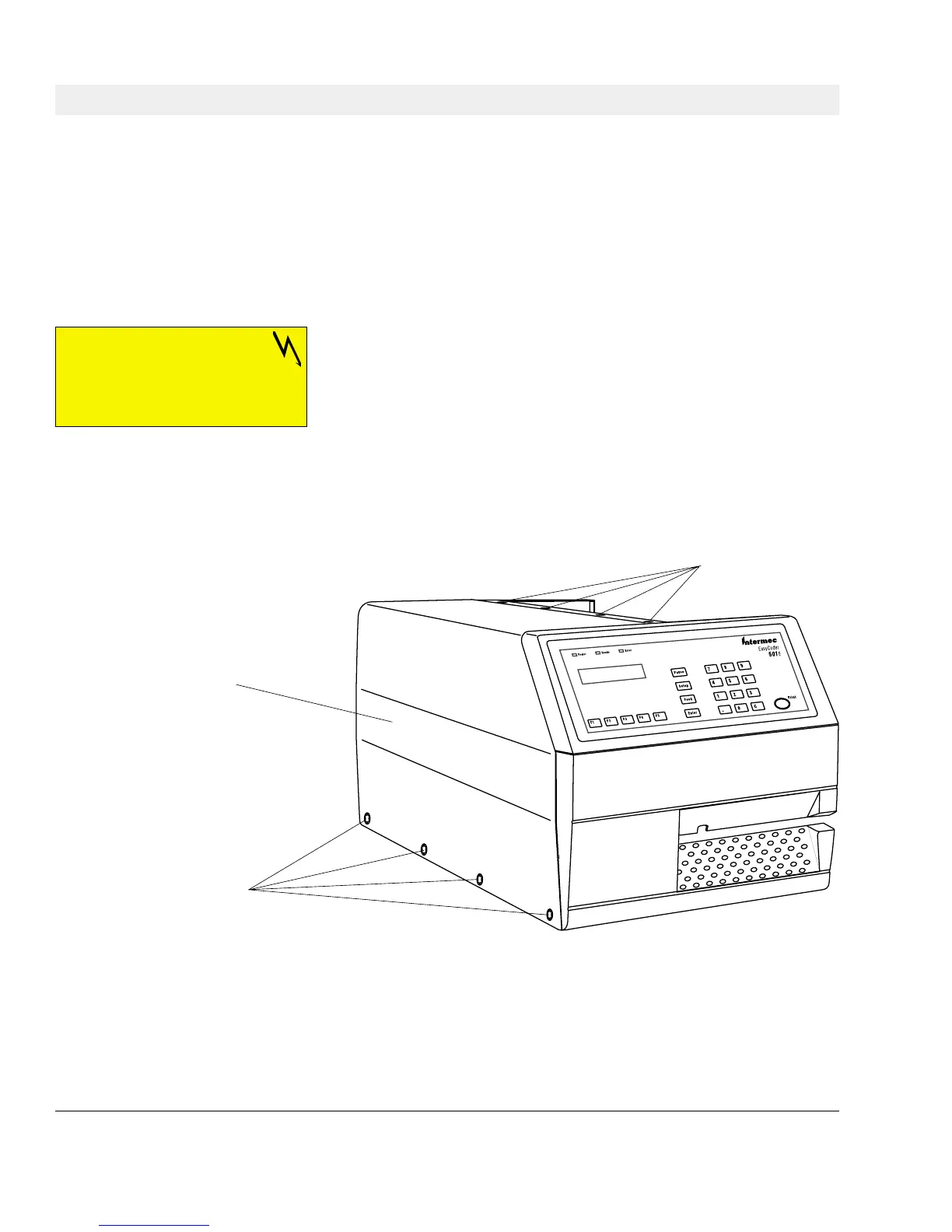

• Remove the four #T10 Torx screws situated along the lower edge of
the cover plate as indicated on the illustration below.
• Open the right-hand door and remove the four #T10 Torx screws
at the top of the cover plate.
• Remove the cover plate.
• Reassemble in reverse order.
Accessing the
CPU Board
4 Screws
Cover Plate
4 Screws
