Intermec EasyCoder 501 E – Installation & Operation Ed. 1 47
Chapter 5 Media Load
3 4
5 6
External Supply, cont.

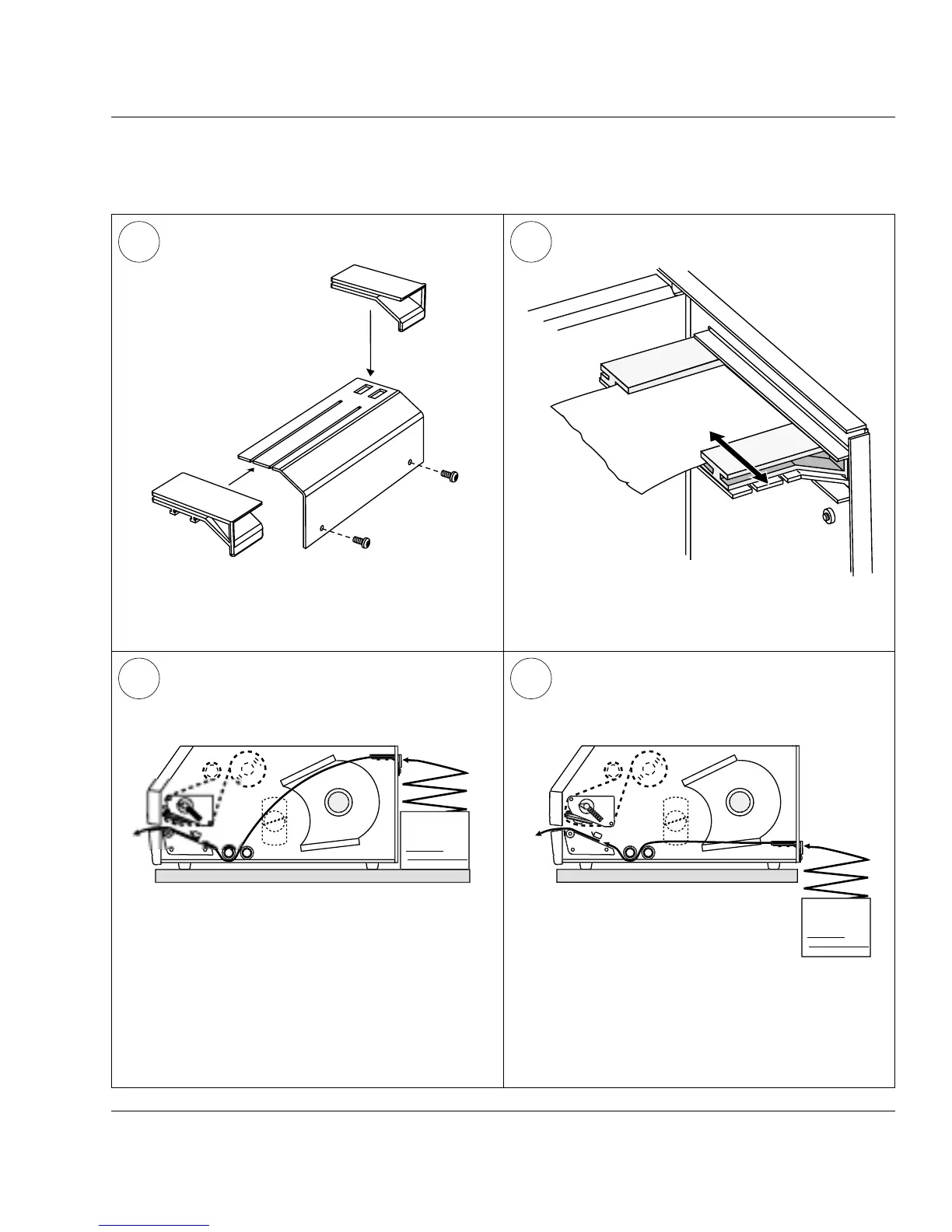

As an option, the printer can be fi tted with a
set of fan-fold guides in either slot.
The outer guide is adjustable for different
media widths (minimum 40 mm/1.575 inches).
The fan-fold guide can be supplemented with
an additional guide shaft and edge guide.
Thread the media between the shafts.
Here is the same arrangement but with the fan
fold guide fi tted at the lower slot.
