4. Data transmission settings RS-232
54
ScanPlus 1800 - Installation Manual
symbology identifier
[preamble] [symbology id] <data> [postamble]
AIM
[preamble] [symbology id] <data> [postamble]
- optional 3-character symbology identifiers standardized by the AIM Committee
Example: " ] A 0 " identifies standard Code 39 without check digit
- refer to the official AIM documentation on symbology identifiers for full information on the
different processing options supported
symbology
]
<sym
bo
logy_id>
<processing_opt
i
on>
Codabar ] F 0, 2, 4
Code 39 ] A 0, 1, 2, 4
Code 93 ] G 0
Code 128/EAN 128 ] C 0, 1
Interleaved 2 of 5 ] I 0, 1, 2
Matrix 2 of 5 ] X 0
Standard 2 of 5 ] S 0, 1, 2
MSI Code ] M 0, 1
PDF417 ] L 0
Plessey Code ] P 0
Telepen ] B 0, 1
UPC/EAN (1) ] E 0, 3, 4
UPC/EAN (2) ] X 0
(1) UPC/EAN "standard" lengths = 8, 13, 15 (add-on 2), 18 (add-on 5) characters
(2) UPC/EAN other lengths (no check digit, . . .)

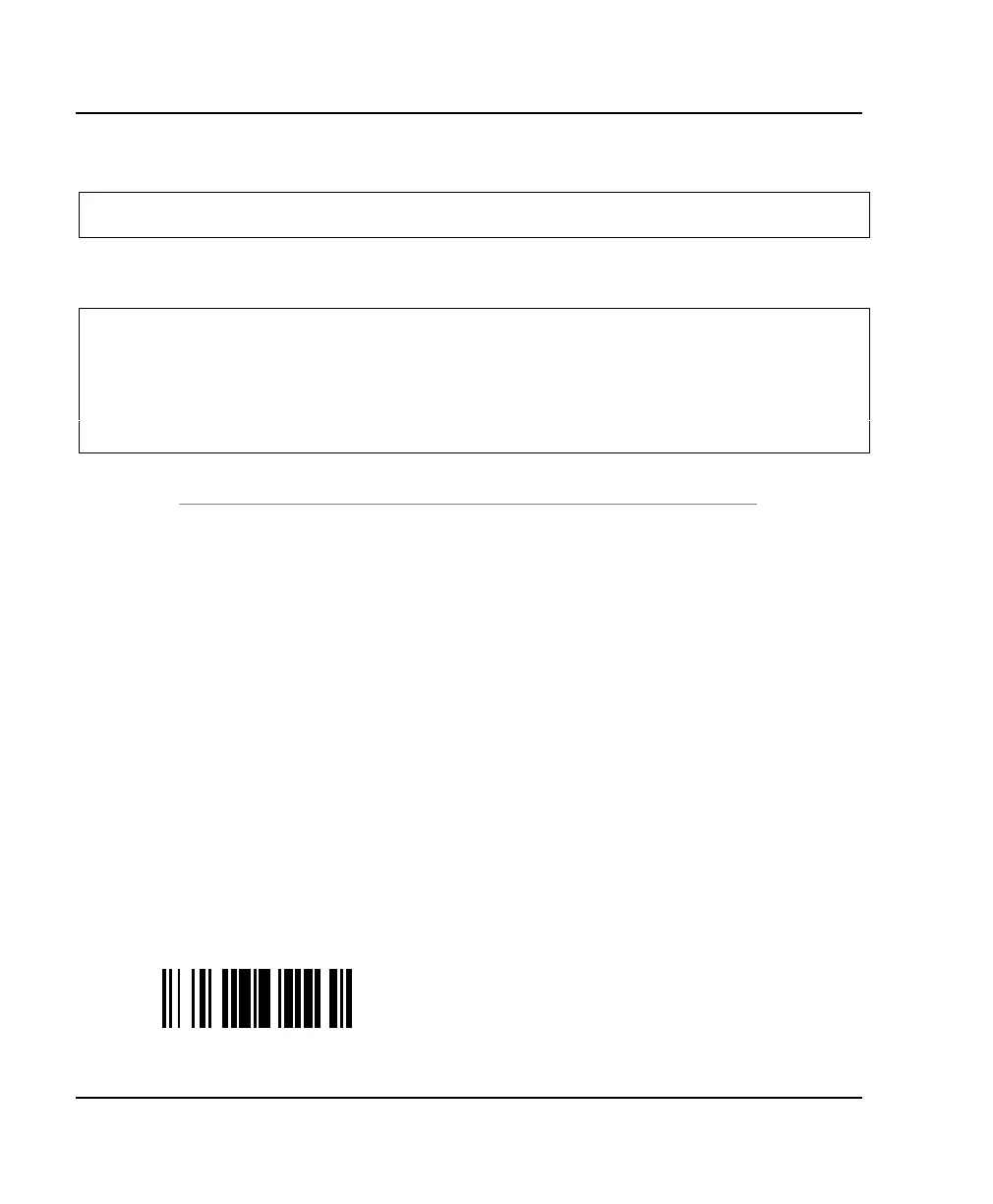

not transmitted (*)
\47\59\60
