4. Data transmission settings wand emulation
68
ScanPlus 1800 - Installation Manual

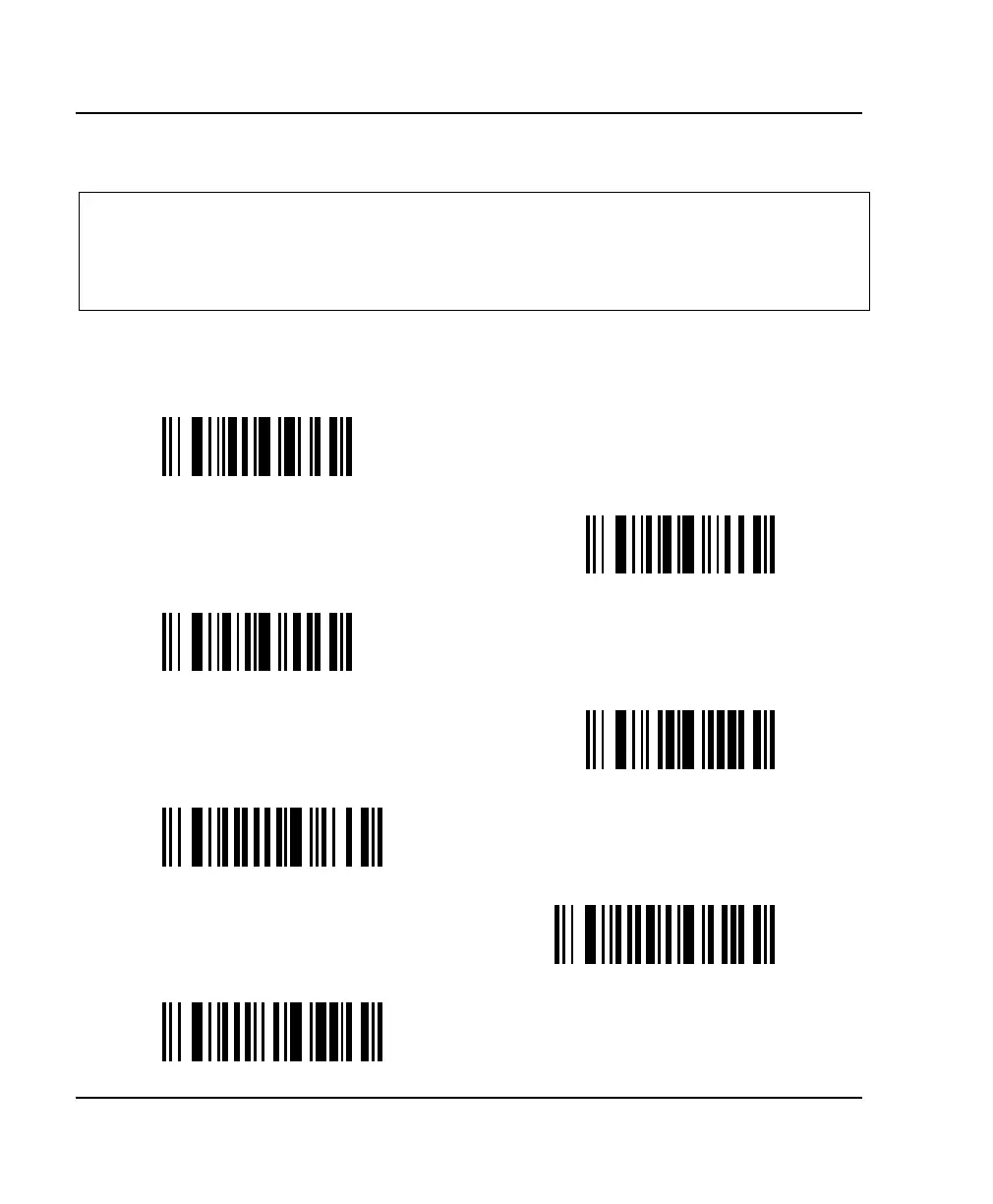

pulse duration
- times in ms represent the pulse duration of a narrow bar or space
- speeds in parentheses are for standard UPC/EAN bar codes with 0.33 mm narrow-bar elements
- emulated pulse duration speed = [ 100 x ( r / t ) ] cm/s, where r = actual narrowest element
(mm) and t = setup duration element (ms)
Example
if r = 0.45 mm and t = 0.4 ms, emulated speed = 100 x (0.45 / 0.4) = 112.5 cm/s
0.15 ms (220 cm/s EAN 100%) (*)
\58\0F\60
0.19 ms (175 cm/s EAN 100%)
\58\13\60
0.26 ms (125 cm/s EAN 100%)
\58\1A\60
0.44 ms (75 cm/s EAN 100%)
\58\2C\60
0.66 ms (50 cm/s EAN 100%)
\58\01\02\60
0.88 ms (37.5 cm/s EAN 100%)
\58\01\18\60
1.32 ms (25 cm/s EAN 100%)
\58\02\04\60
