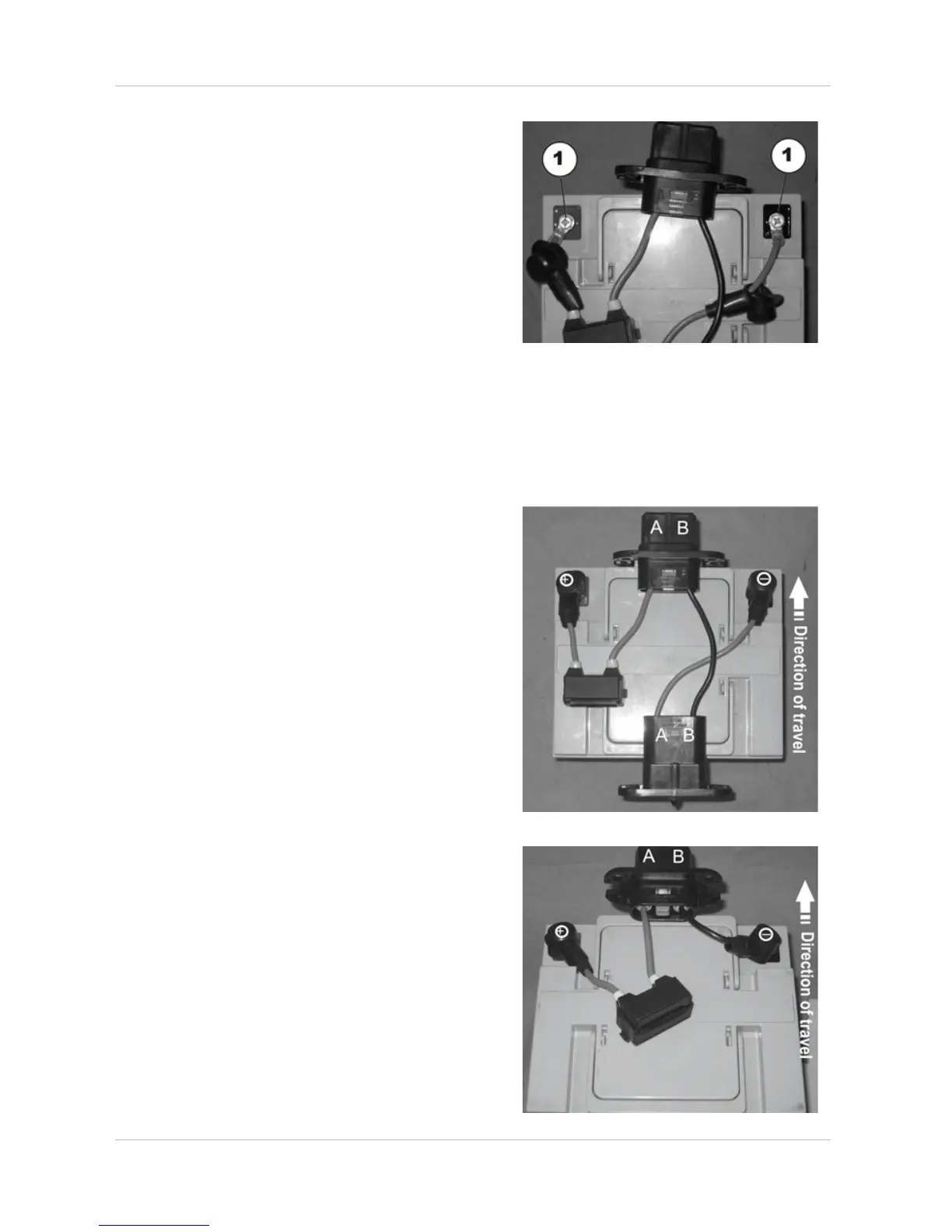

• Loosen the battery terminal clamps (1) with the
Phillips screwdriver.
• First undo the screw on the negative terminal
(black cable) with the Phillips screwdriver.
• After this, undo the bolt on the positive
terminal (red cable).
• Reassembly of the batteries takes place in
reverse order
• Ensure that the battery cage sockets/plugs
have been correctly refitted. A polarity diagram
is located in each battery case cover.
• Front battery
• The battery case socket is located at the front
(flange central).
• Socket side A is on the left in the direction of
travel.
• Socket side B is on the right in the direction of
travel.
• The battery case plug is located at the rear
(flange flush).
• Plug side A is on the left in the direction of
travel.
• Plug side B is on the right in the direction of
travel.
• Rear battery
• The battery case socket is located at the front
(flange central).
• Socket side A is on the left in the direction of
travel.
• Socket side B is on the right in the direction of
travel.
