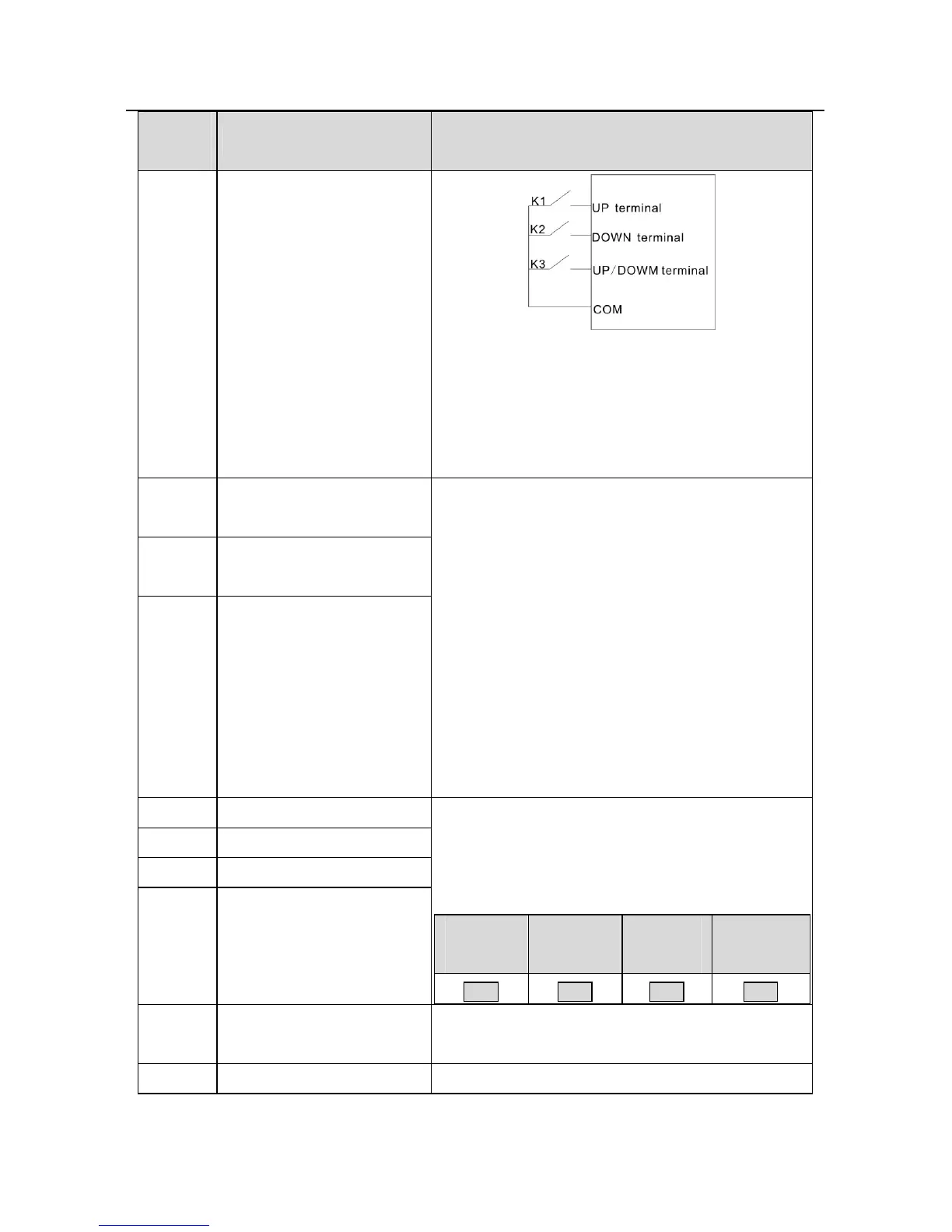

Goodrive200 inverters Basic operation instruction
170
Set
value
Function Instructions
clear
Frequency increasing/decreasing setting clear
terminal can cancel the assistant channel frequency
set by the internal UP/DOWN of the inverter to make
the reference frequency restore to the frequency
reference by the main reference frequency channel.
13
Shifting between A setting
and B setting
This function can realize the shifting between the
frequency setting channels.
The 13
th
function can realize the shifting between A
frequency reference channel and B frequency
reference channel.
The 14
th
function can realize the shifting between A
frequency reference channel and the combination
setting channel set by P00.09
The 15
th
function can realize the shifting between B
frequency reference channel and the combination
setting channel set by P00.09
14
Shifting between A setting
and combination setting
15
Shifting between B setting
and combination setting
16 Multi-step speed terminal 1
The 16 step speeds can be set by the combination of
digital state of four terminals.
Note: multi-step speed 1is the low position, multi-step
speed 4 is the high position.
Multi-step
speed 4
Multi-step
speed 3
Multi-step
speed 2
Multi-step
speed 1
BIT3 BIT2 BIT1 BIT0
17 Multi-step speed terminal 2
18 Multi-step speed terminal 3
19 Multi-step speed terminal 4
20 Multi-step speed pause
Shield the multi-step speed selection terminal function
to keep the setting value at the current state.
21 ACC/DEC time selection 1
Select 4 ACC/DEC time by the combination of the 2
