Goodrive200 inverters Function codes
82
Function
code
Name
Detailed instruction of parameters
Default
value
Modify
filter time

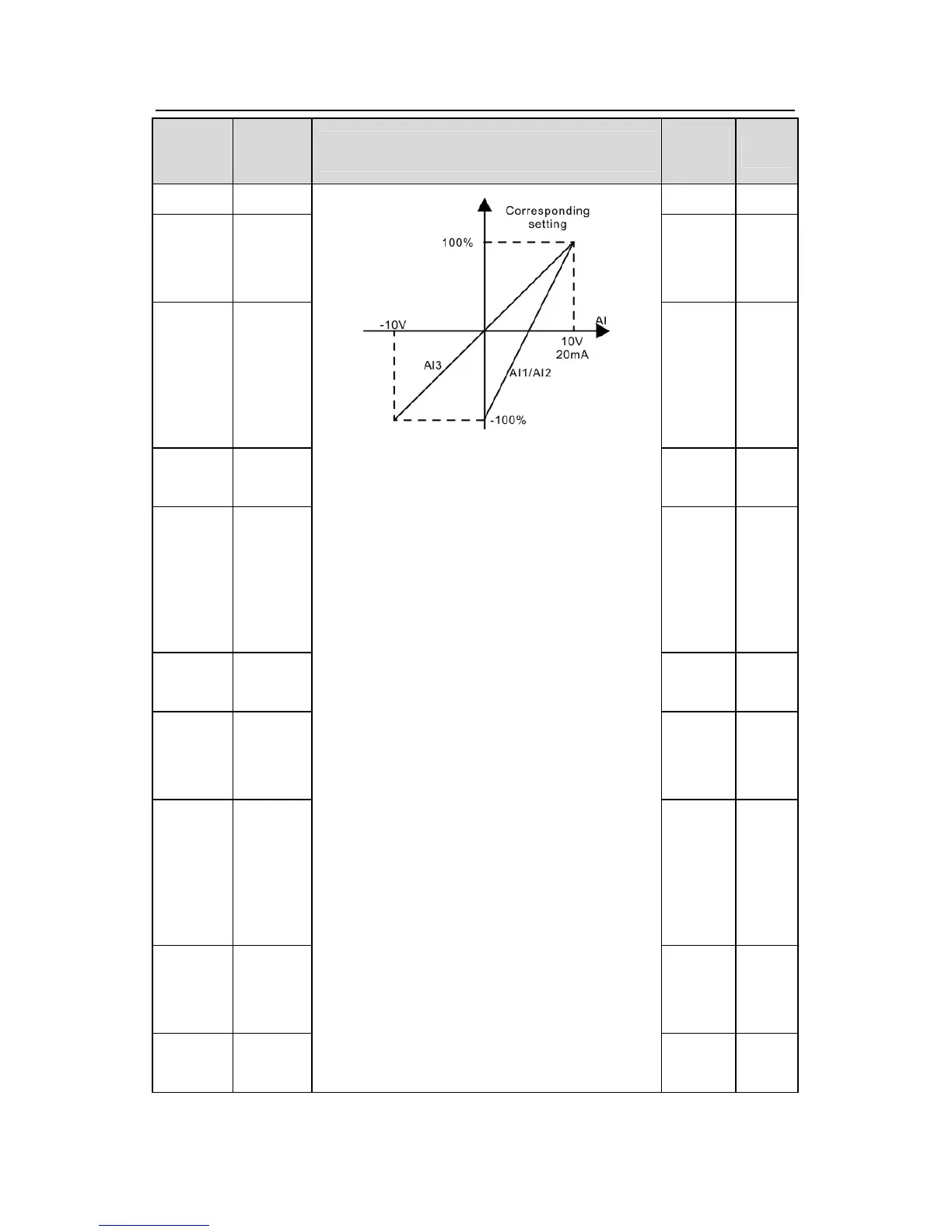

Input filter time: this parameter is used to adjust
the sensitivity of the analog input. Increasing the
value properly can enhance the anti-interference
of the analog, but weaken the sensitivity of the
analog input
Note: Analog AI1 and AI2 can support 0~10V or
0~20mA input, when AI1 and AI2 selects 0~20mA
input, the corresponding voltage of 20mA is 5V.
AI3 can support the output of -10V~+10V.
The setting range of P05.32:0.00V~P05.34
The setting range of P05.33:-100.0%~100.0%
The setting range of P05.34:P05.32~10.00V
The setting range of P05.35:-100.0%~100.0%
The setting range of P05.36:0.000s~10.000s
The setting range of P05.37:0.00V~P05.39
The setting range of P05.38:-100.0%~100.0%
The setting range of P05.39:P05.37~10.00V
The setting range of P05.40:-100.0%~100.0%
The setting range of P05.41:0.000s~10.000s
The setting range of P05.42:-10.00V~P05.44
The setting range of P05.43:-100.0%~100.0%
The setting range of P05.44: P05.42~P05.46
P05.37
L
ower limit
of
AI2
0.00V
○
P05.38
Correspon
ding
setting of
the lower
limit of AI2
0.0% ○
P05.39
Upper limit
of AI2
10.00V
○
P05.40
Correspon
ding
setting of
the upper
limit of AI2
100.0%
○
P05.41
AI2 input
filter time
0.100s
○
P05.42
L
ower limit
of
AI3
-10.00V
○
P05.43
Correspon
ding
setting of
the lower
limit of AI3
-100.0%
○
P05.44
Middle
value of
AI3
0.00V
○
P05.45
Correspon
ding
0.0% ○
