Operation
Drive Controls, Switches and Instruments
52 52
9811-3400-4

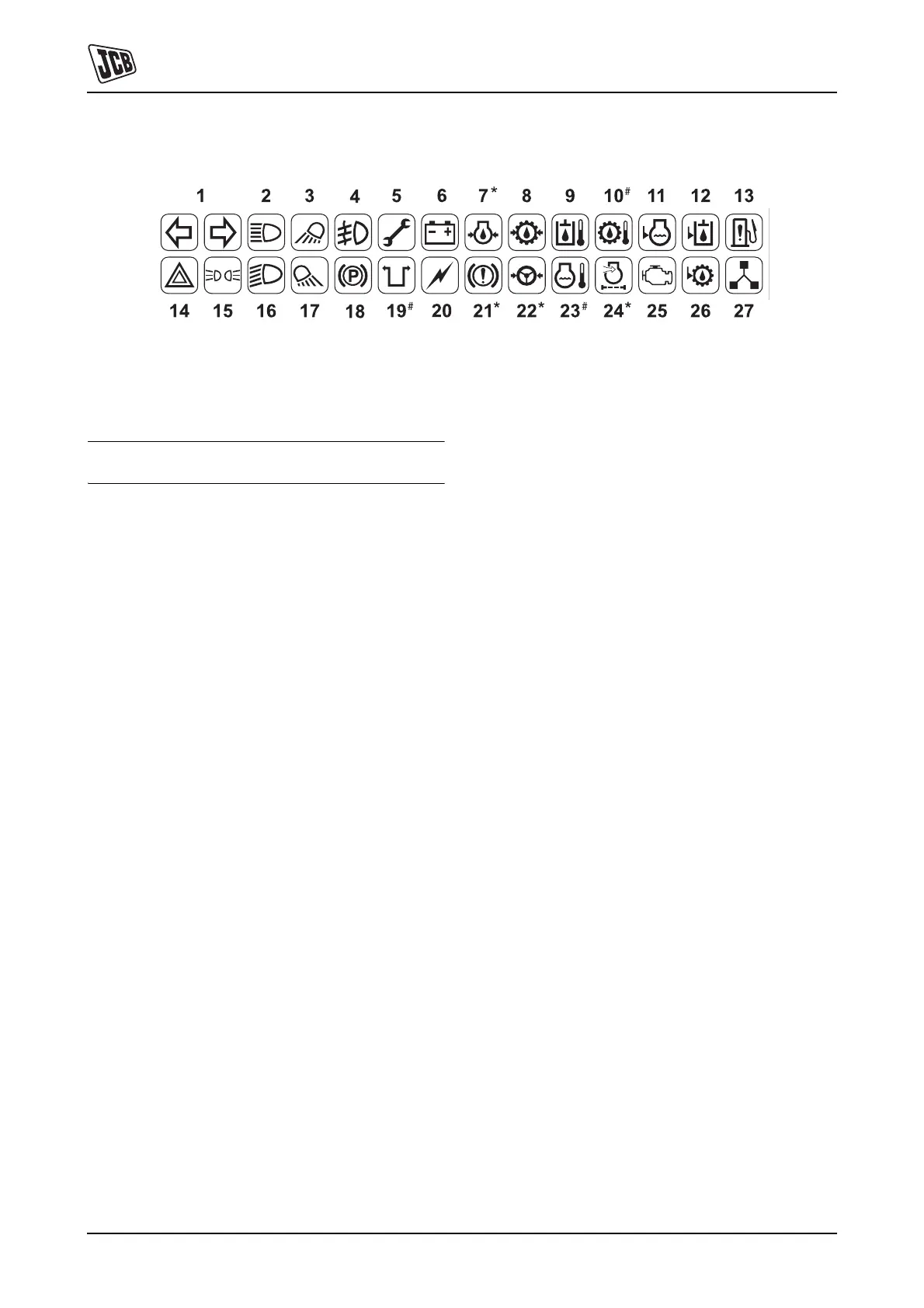

Warning and Indicator Lights
P4-2018
794940-3
Fig 35.
Warning Light Test (Daily)
!MCAUTION
Do not use the machine if any of the warning lights do
not illuminate. Have the fault rectified immediately.
4-2-1-3
1 Turn on the power by turning the starter key to IGN.
2 All the fault warning lights should illuminate during the
start up cycle.
3 If any of the fault warning lights fail to illuminate,
contact your JCB Dealer.
Functions
When lit, warning lights shown with an asterisk (*) will
initiate the automatic engine shut down system. Refer to
Automatic Engine Shut Down.
When lit, warning lights shown with an a hash (#) will
initiate the automatic engine shut down system and
prevent the engine from starting until the fault is cleared.
Refer to Automatic Engine Shut Down and Start Inhibit.
1 Direction Indicators
Visual Only. Left or Right flashes with the direction
indicators. Both flash when Hazard Warning Lights
are on. Use the indicators to signal before turning.
2 Main Beam On
Visual Only. Lights up when the headlight main
beams are switched on. Switch the main beams off
for on-coming traffic.
3 Front Work Lights On
Visual Only. Lights up when the front work lights are
switched on.
4 Rear Fog Light On
Visual Only. Lights up when the rear fog light is
switched on.
5 Service Required
Visual with Message "SERVICE REQD" displayed
on the top line of the display panel. If lit, contact
your JCB Dealer.
Note: If diagnostic option is fitted, the Service
Required warning and message will be displayed at
pre-set intervals and also if the diagnostic computer
memory is full. The Service Required is reset when
data is down loaded by your JCB Dealer.
6 Battery Voltage
Audible/Visual with Message "BATTERY LOW"
displayed on the top line of the display panel.
Illuminated if the battery voltage is low.
7* Engine Oil Pressure Low
Audible/Visual with Message "ENG OIL PRESS"
displayed on the top line of the display panel.
Operates if the engine oil pressure drops too far.
The light should go out when the engine is started.
8 Not used.
