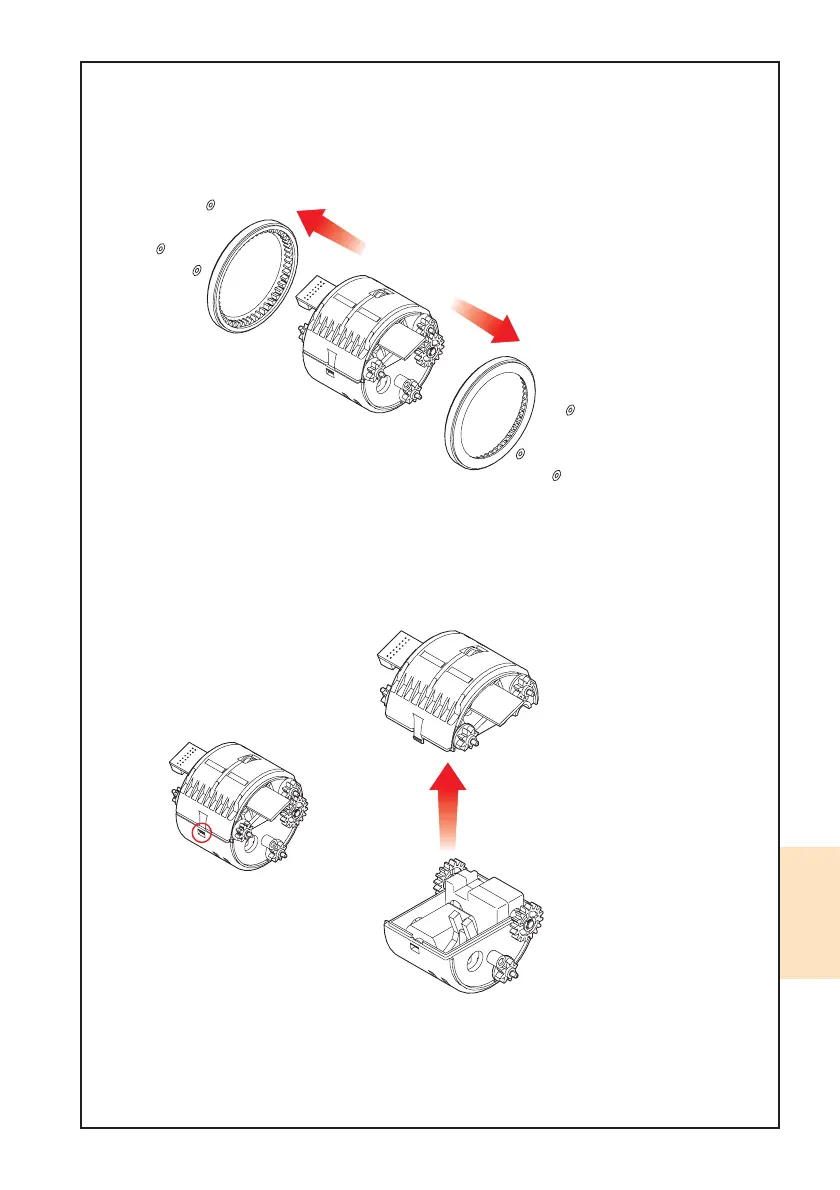

5. Remove the Feed Roller Assy of the both side of the Center Unit. Take out three (3)
washers each from the both side of the Center Unit.
6. Insert the minus driver or equivalent into the encircled area as shown below. Lift up
the Center Guide A and remove it from the Center Guide B.
