TAIKO Service Manual

6-6

CHAPTER

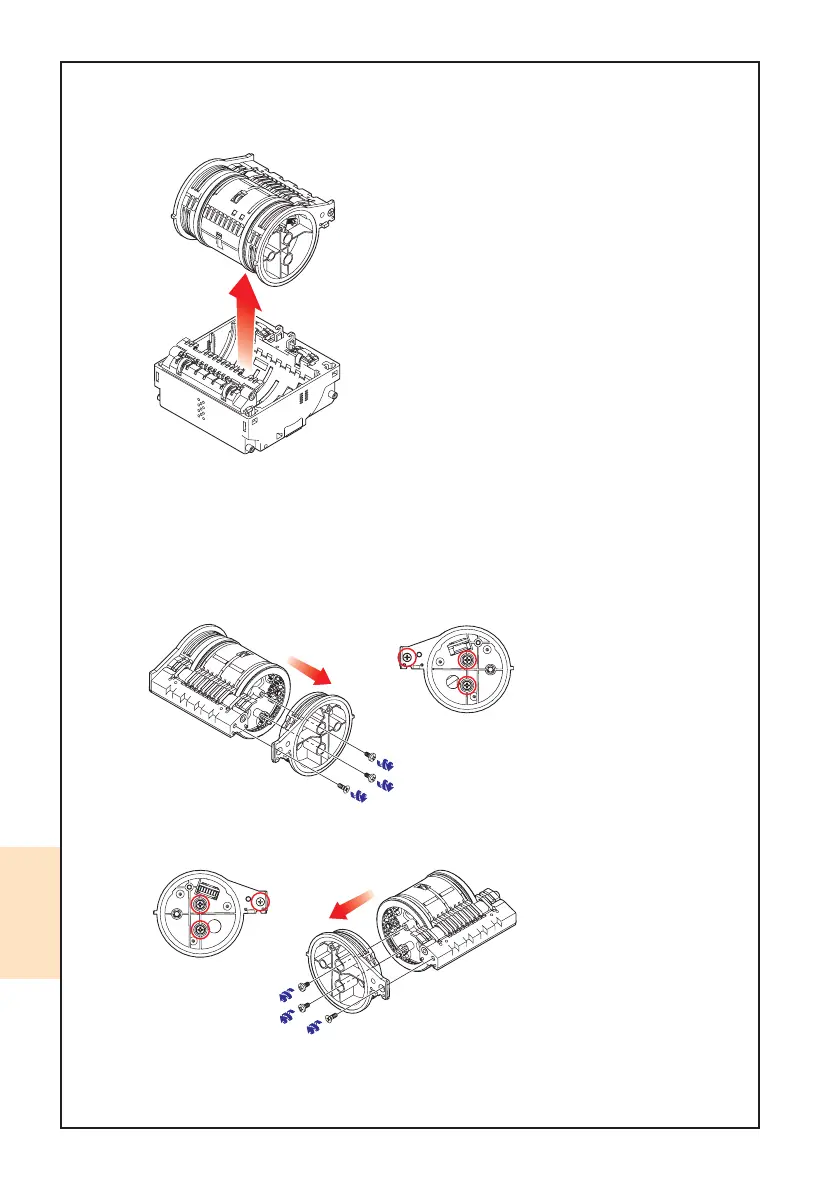

3. Remove the transport unit form the Lower Base.

4. Take out three (3) screws each from the both side of the Transport Unit. Remove the

Center Guide.
