2-17

TAIKO Service Manual

CHAPTER

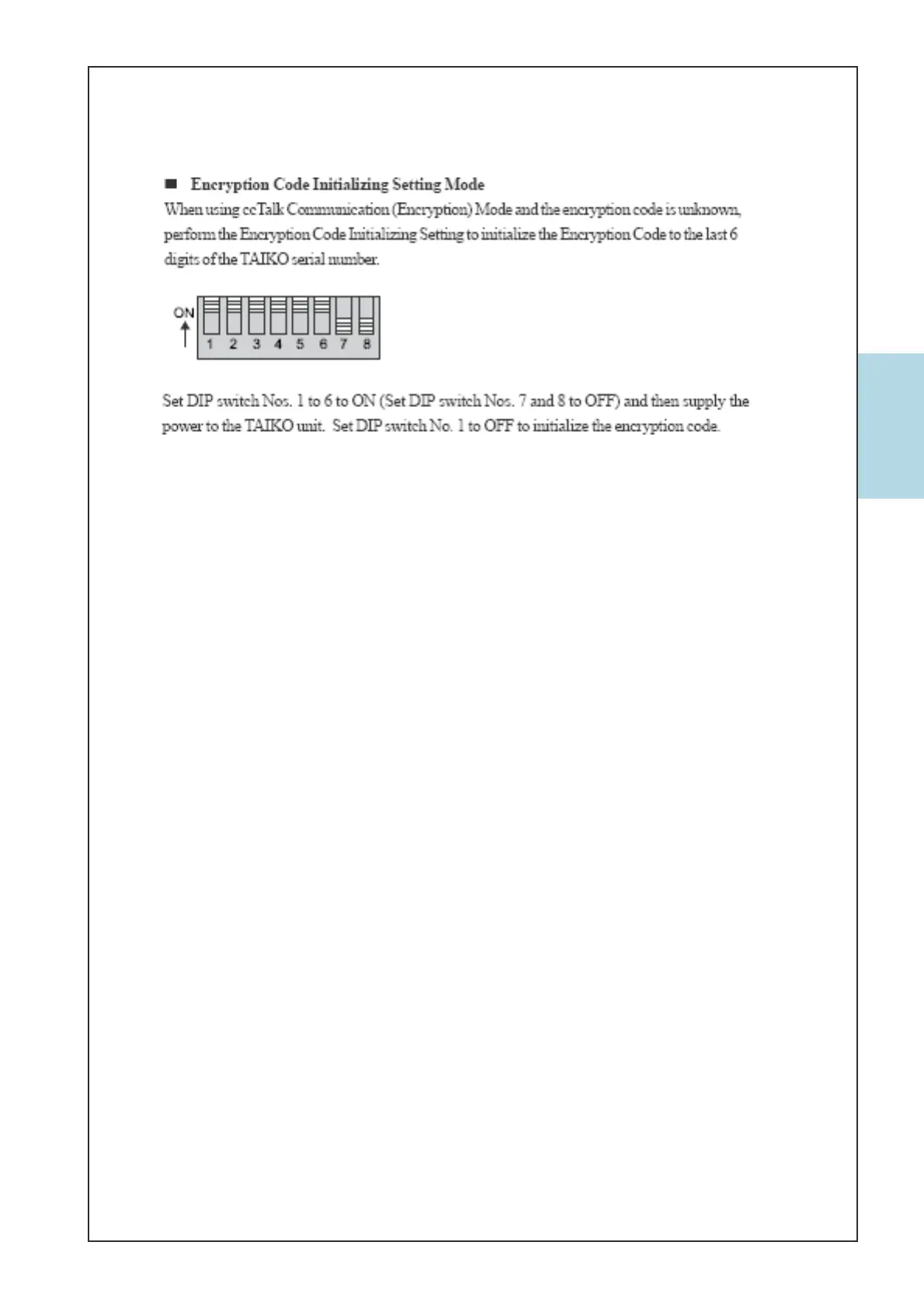

When using ccTalk Communication(Encryption)Mode and the encryption code is unknown

perform the Encryption Code Initialisation Setting to improve the Encryption to the last 6

didgits of the TAIKO serial number.

Set DIP switch No. 1 to 6 to ON ( Set DIP switch No. 7 and 8 to OFF) and the supply

the power to the TAIKO unit. Set DIP switch No. 1 to OFF to initialize the encryption code.

Encryption Code Initializing Setting Mode
