3 – 36
3

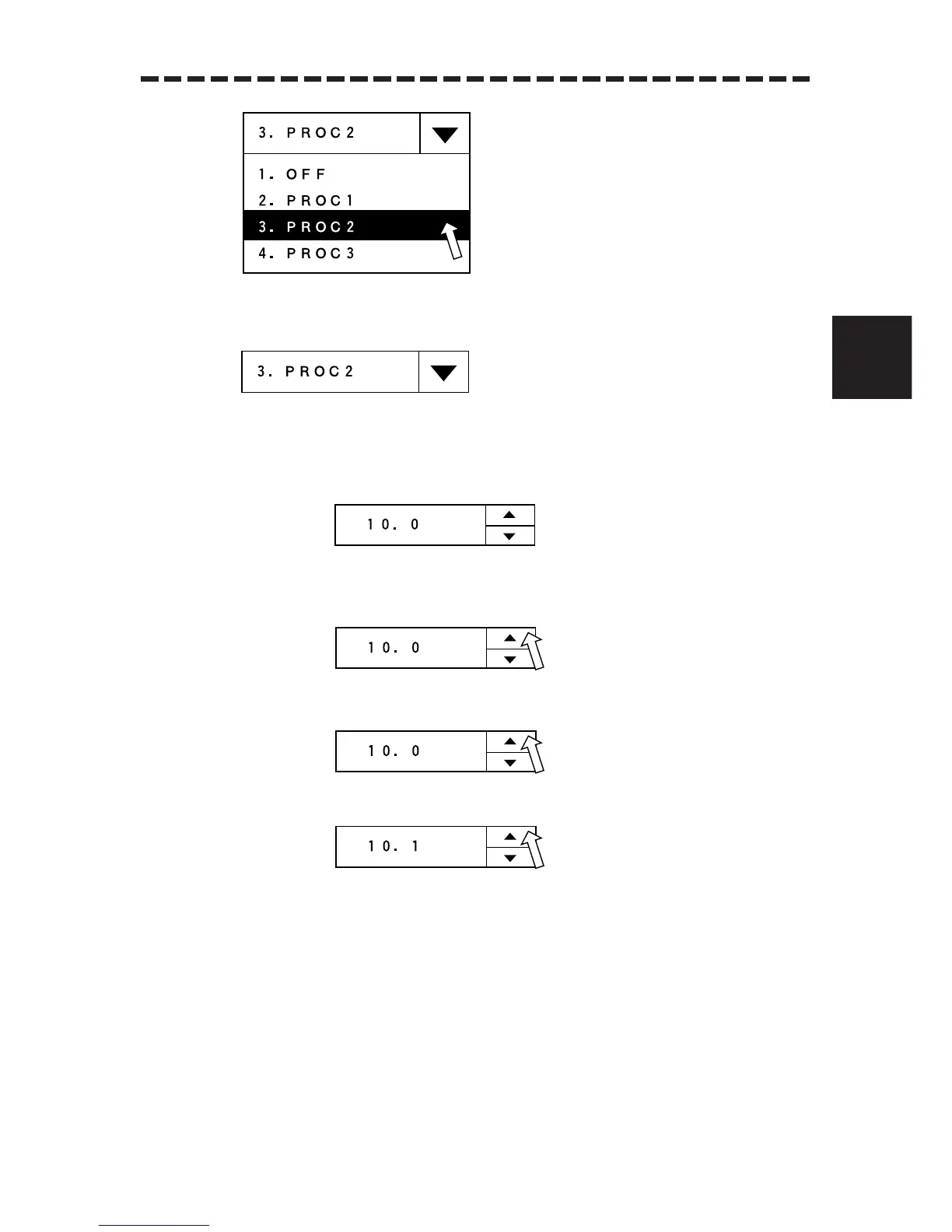

3.4 BASIC OPERATIONS
.
..
y
Position the arrow cursor over the desired selection and selected it, then press the trackball section
left button.
u
The pull-down menu will be closed and the setting will be determined.
[
33
] Value Input Type of Setting Changes
This method can be used in most of boxes where a numeric value is to be entered.
q 0.0-100.0kts
When the value is set as shown in the figure q:
The minimum and maximum (min-max) are displayed on the left side and the unit is also displayed
if present.
w 0.0-100.0kts
To increase the value, move the arrow cursor to the position in the figure w (upward triangle) with
the trackball.
e 0.0-100.0kts
With the arrow cursor on the position in the figure w, click the trackball section left button once.
r 0.0-100.0kts
The value will be increase in the minimum step.
t To increase the value continuously:
Hold down the trackball section left button in the figure e.
y To decrease the value:
Move the arrow cursor to the downward triangle in the figure w.
The following procedures are the same as for increasing.
