FX-3R Maintenance Guide
12-3
4) Next, press the [MENU] button. [+] is shown at the lower right corner of the screen. Touch its
center portion.
5) [+] is shown at the lower left corner of the screen. Touch its center portion.
6) [+] is shown at the upper right corner of the screen. Touch its center portion.
7) [+] is shown at the upper left corner of the screen. Touch its center portion.

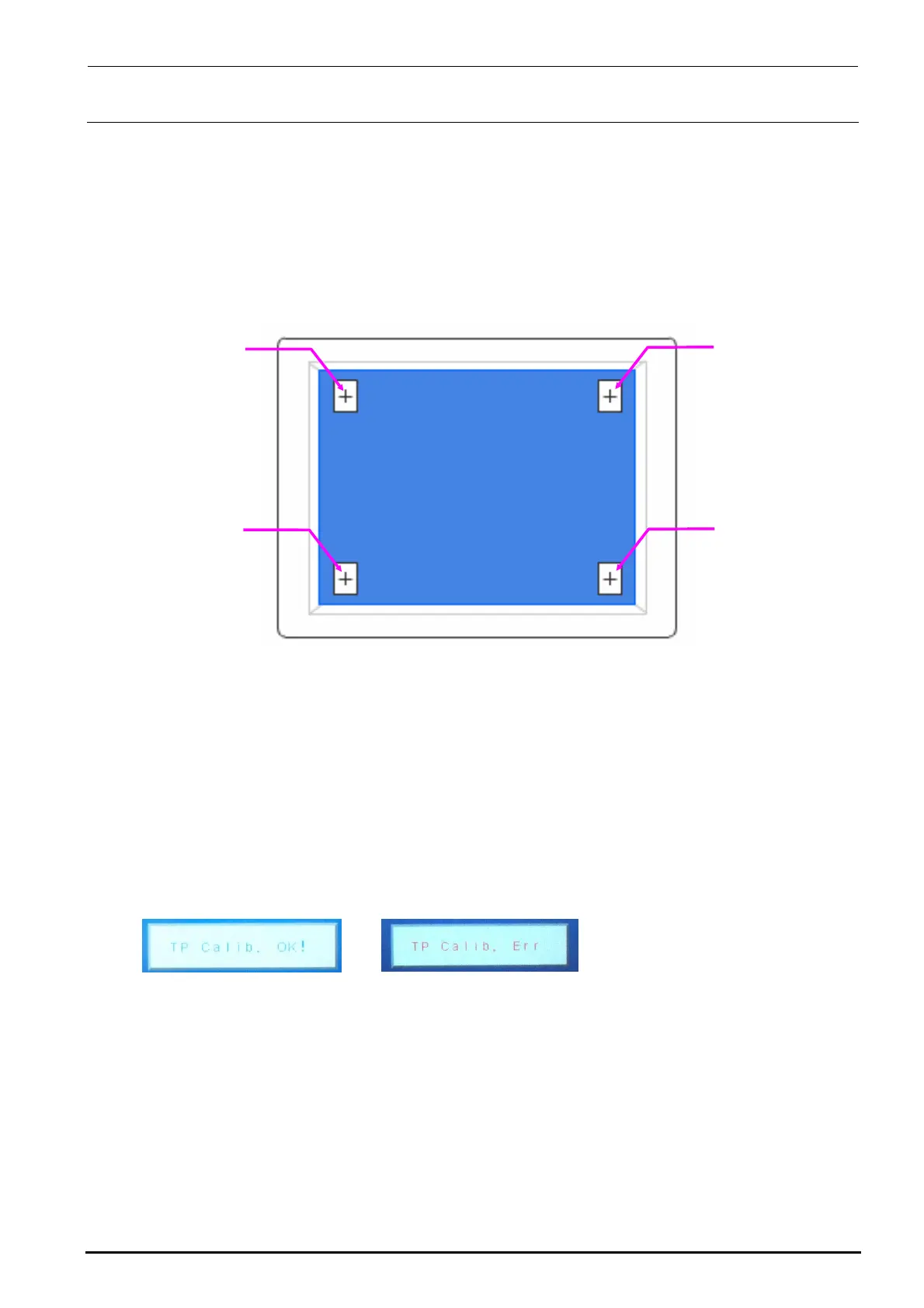

Touch positions on monitor screen
CAUTION
To adjust the touch panel, use finger or touch pen with a round tip.
Do not use any propelling pencil or sharp object. Always press the center portion of the
calibration point. The target is 1 mm or less.
If a position other than the mark is pressed, ERR appears after approx. 5 sec. have elapsed. At
this time, restart the adjustment from work step No. 1.
8) Finally, when “TP Calib. OK!” is shown, this means that the setting has been completed
successfully.
Completed successfully. Err display
CAUTION
If “TP Calib. Err” appears during operation or at the end of the operation, restart the adjustment
from work step No. 1.
Rev. 1.00
