Installing the ACX1000 or ACX1100 Mounting Brackets
To attach the mounting brackets, you need the following tools:
•
Phillips (+) screwdriver, number 2
Two mounting brackets for front or rear mounting ship with the router (see
Figure 19 on page 100 and Figure 20 on page 100).
To attach both mounting brackets to either the front or rear of the chassis:
1. Align the bracket with the two sets of mounting holes.
2. Insert the four screws at the top and bottom of the bracket, and tighten each partially.
3. Tighten the four screws completely.
4. Repeat the procedure for the other bracket.

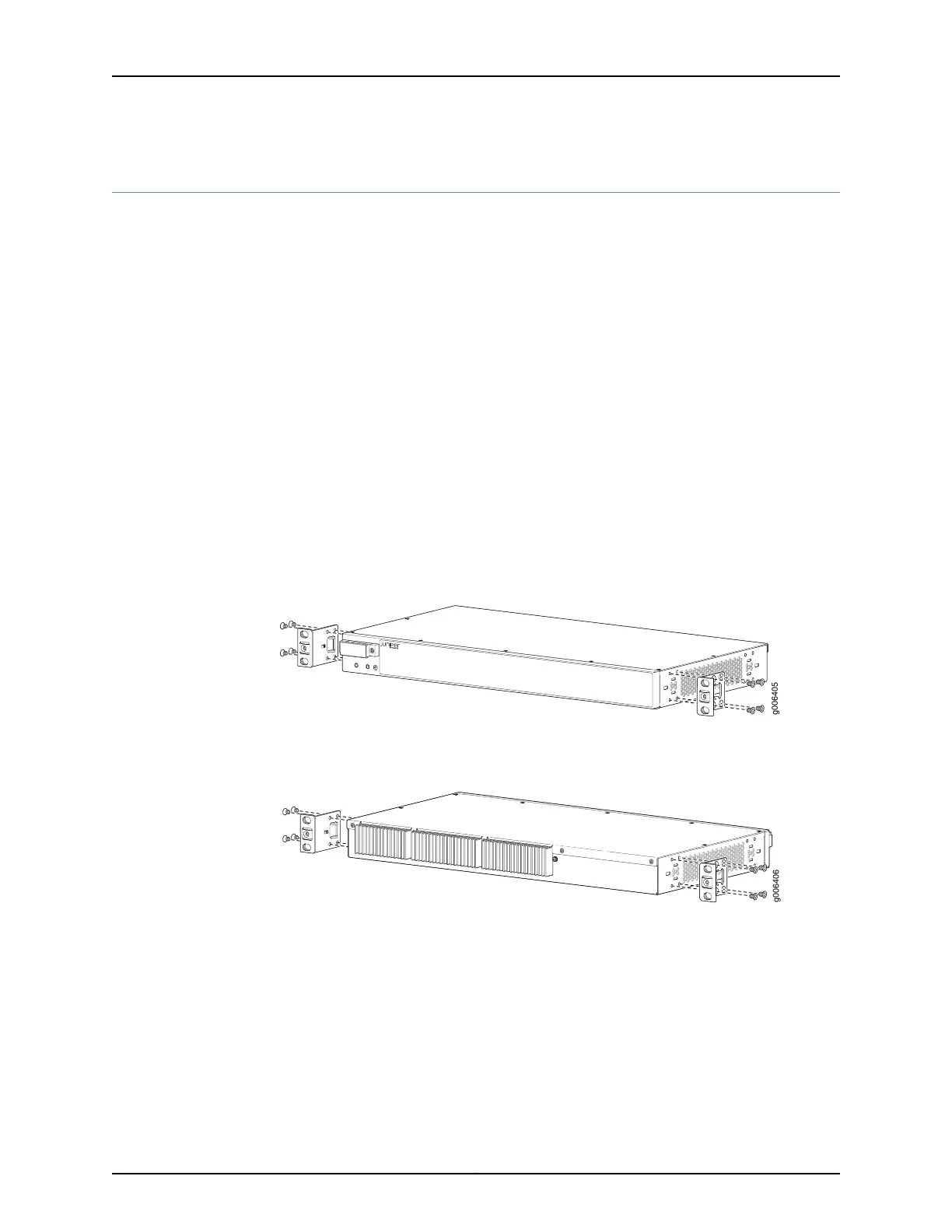

Figure 19: Installing the Mounting Brackets to the Front of the ACX1000
or ACX1100 Router
Figure 20: Installing the Mounting Brackets to the Rear of the ACX1000
or ACX1100 Router
Related
Documentation
Installing and Connecting an ACX1000 or ACX1100 Router Overview on page 97•
• Installing the ACX1000 or ACX1100 Router in the Rack on page 101
