CHAPTER 13
Connecting the Router to External Devices
•
Connecting ACX1000 or ACX1100 Routers to Management Devices on page 109
•
Connecting the ACX1000 or ACX1100 Router to an External Alarm-Reporting
Device on page 111
•
Connecting the ACX1000 or ACX1100 Router to External Clocking Devices on page 112
Connecting ACX1000 or ACX1100 Routers to Management Devices
To connect external devices and cables to the router, you need the following tools:
•
RJ-45 Ethernet cable and RJ-45 to DB-9 serial port adapter (provided)
•
Management host, such as a PC, with an Ethernet port (not provided)
•
Connecting the Router to a Network for Out-of-Band Management on page 109
•
Connecting the Router to a Management Console or Auxiliary Device on page 110
Connecting the Router to a Network for Out-of-Band Management
To connect to the MGMT port on the ACX1000 or ACX1100 router:
1. Turn off the power to the management device.
2. Plug one end of the Ethernet cable into the MGMT port on the router.
(Figure 25 on page 109 shows the connector. Figure 26 on page 110 shows the port.)
3. Plug the other end of the cable into the network device.

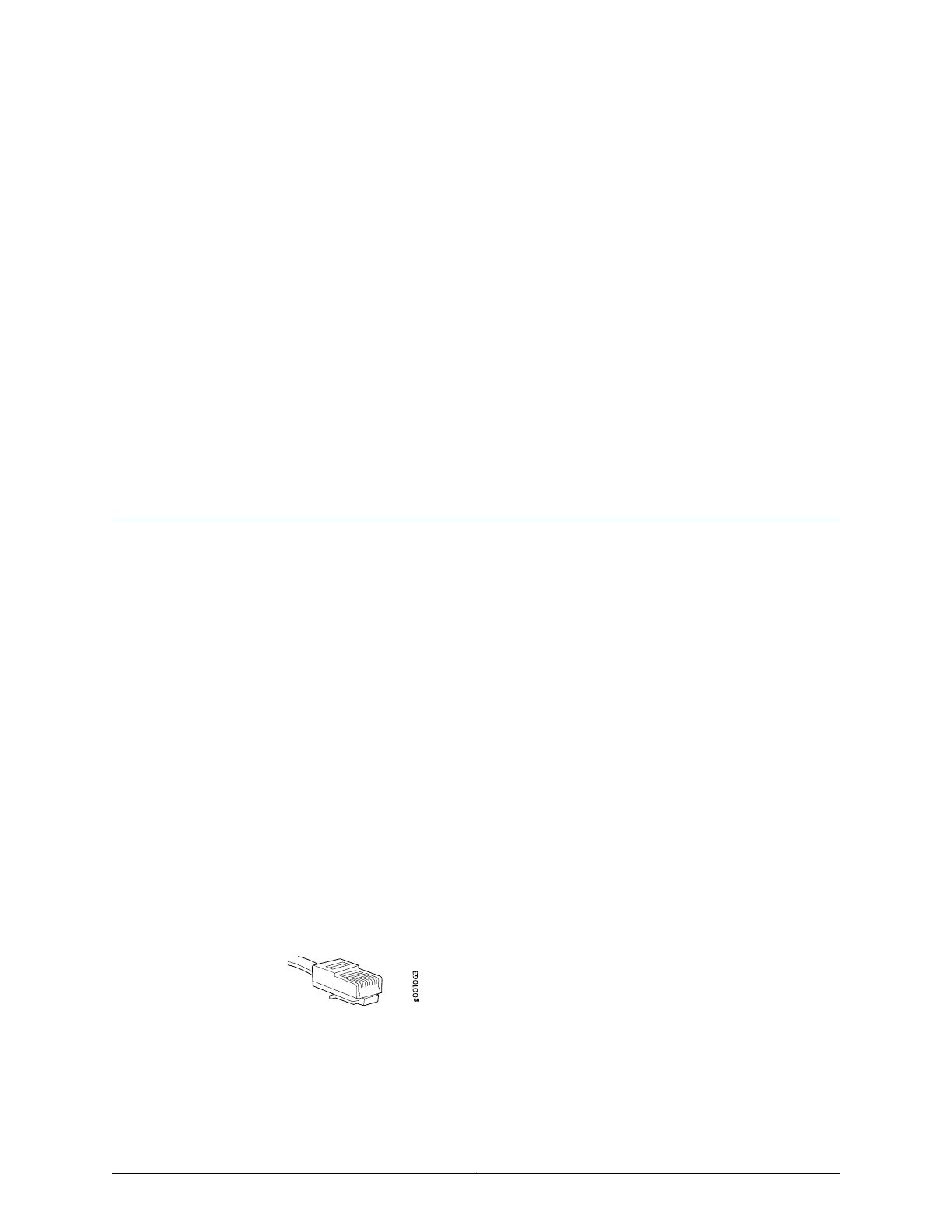

Figure 25: Ethernet Cable Connector
109Copyright © 2017, Juniper Networks, Inc.
