Figure 26: Ethernet Port
g006423
Console Server
PC
CONSOLE/AUX
port
Connecting the Router to a Management Console or Auxiliary Device
You can connect a console, laptop, modem, or other auxiliary device by connecting a
serial cable to the port on the front panel labeled CONSOLE/AUX. This port accepts a
serial cable with an RJ-45 connector, which is provided with the router.
To connect a management console or auxiliary device:
1. Turn off the power to the console or auxiliary device.
2. Plug the RJ-45 end of the serial cable into the AUX port or CONSOLE port on the front
panel (Figure 27 on page 110 shows the connector. Figure 28 on page 110 shows the
ports.)
3. Plug the female DB-9 end into the device's serial port.
NOTE:
For console devices, configure the serial port to the following values:
•
Bits per second—9600
•
Data bits—8
•
Parity—None
•
Stop bits—1
•
Flow control—None

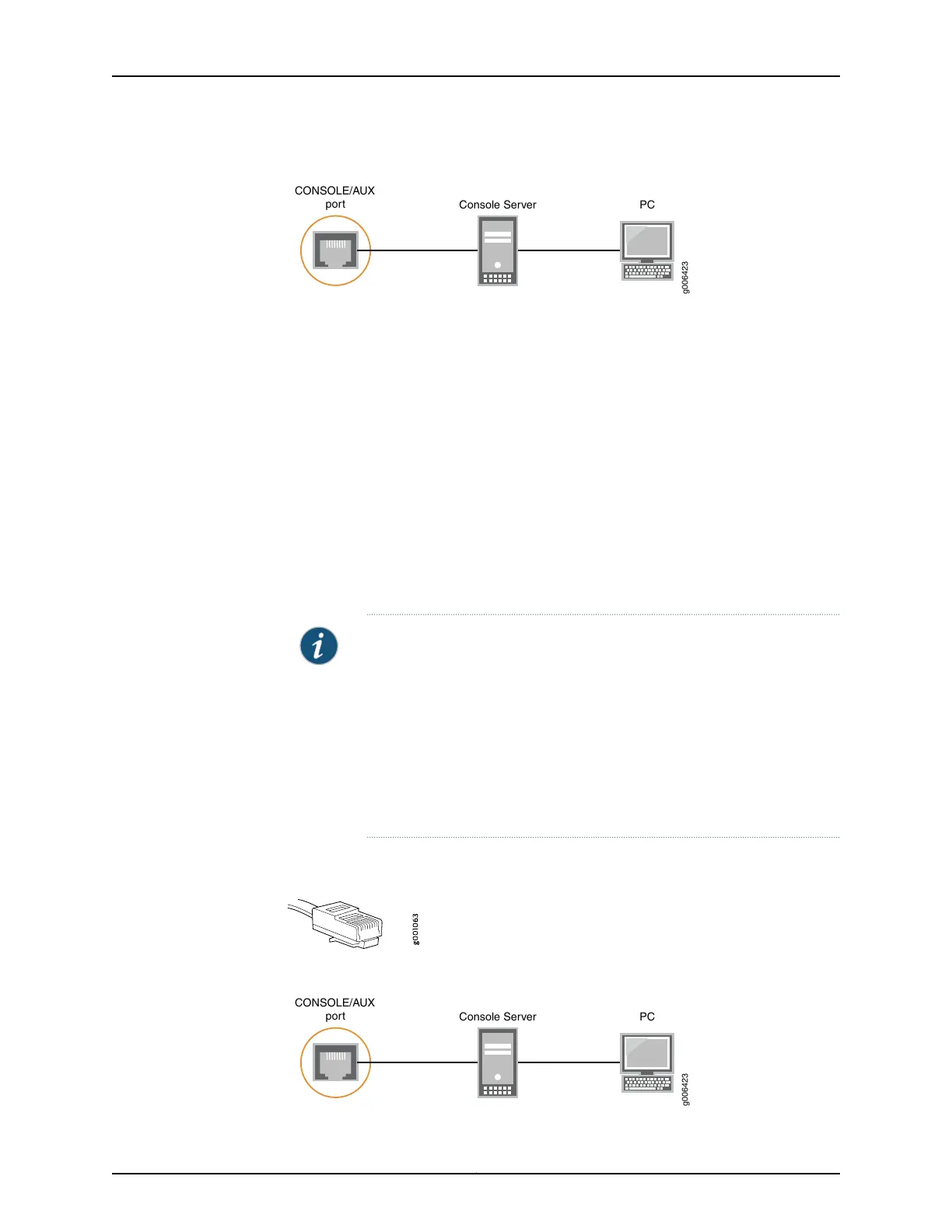

Figure 27: Routing Engine Console and Auxiliary Cable Connector
Figure 28: Auxiliary and Console Connections
g006423
Console Server
PC
CONSOLE/AUX
port
