Installing an ACX1000 or ACX1100 Console or Auxiliary Cable
The CONSOLE/AUX port on the front panel of the router accepts an RS-232 (EIA-232)
serial cable with RJ-45 connectors.
To connect a cable between the router and the console or auxiliary device:
1. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the
ESD points on the chassis.
2. Connect one end of the replacement cable into the CONSOLE/AUX port.
3. Plug the other end of the cable into the device's serial port.
Related
Documentation
Console/Auxiliary Port Connector Pinout on ACX Series Routers on page 65•
Replacing an ACX1000 or ACX1100 Management Ethernet Cable
1.
Removing an ACX1000 or ACX1100 Management Ethernet Cable on page 122
2.
Installing an ACX1000 and ACX1100 Management Ethernet Cable on page 122
Removing an ACX1000 or ACX1100 Management Ethernet Cable
To remove a serial cable connected to a management device:
1. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the
ESD points on the chassis.
2. Press the tab on the connector, and pull the connector straight out of the MGMT port.
Figure 30 on page 122 shows the connector.
3. Disconnect the cable from the network device.

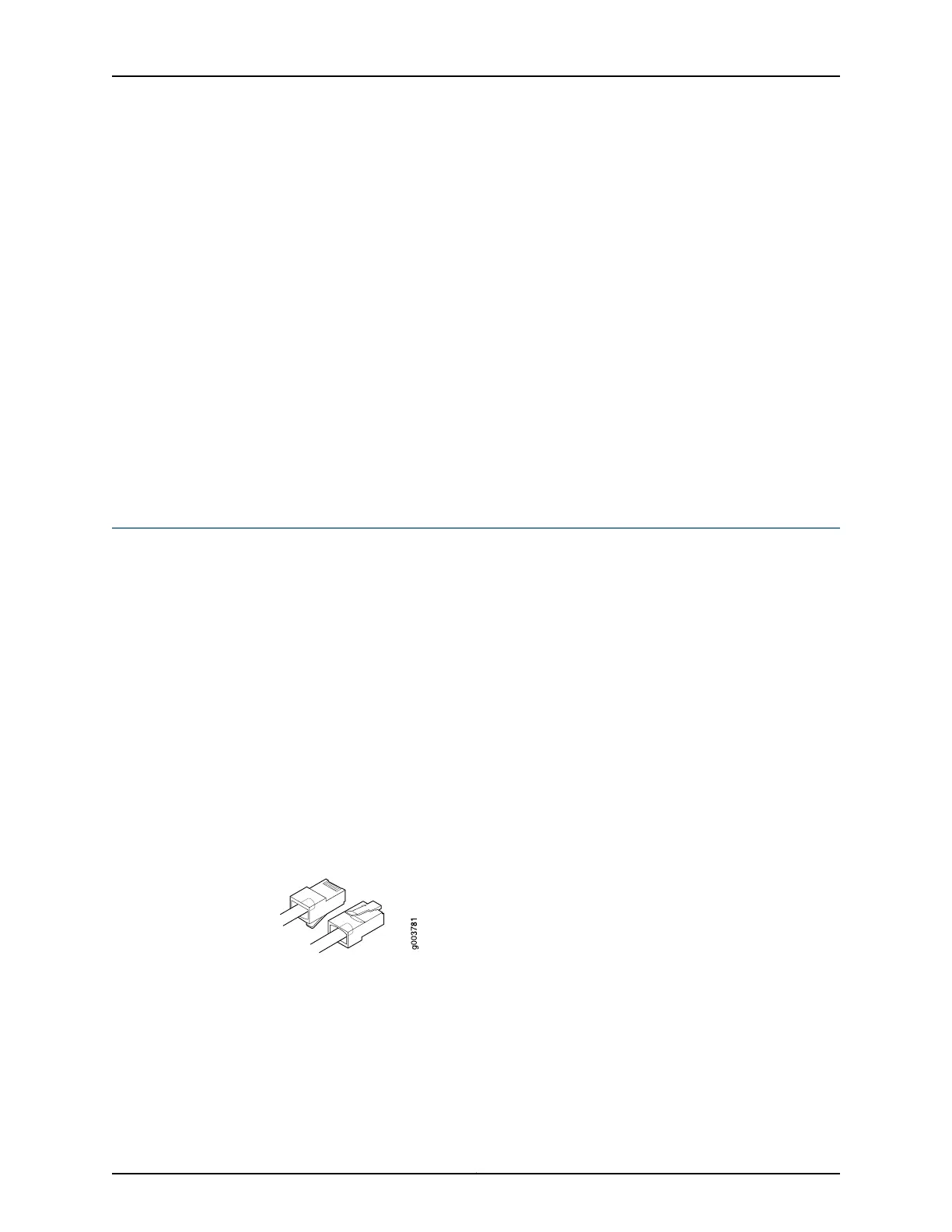

Figure 30: Ethernet Cable Connectors
Installing an ACX1000 and ACX1100 Management Ethernet Cable
To install a serial cable connected to a management device:
1. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the
ESD points on the chassis.
Copyright © 2017, Juniper Networks, Inc.122
