The compact routers are one rack unit (U; that is, 1.75 in., or 4.45 cm) tall. Several routers
can be stacked in a single floor-to-ceiling rack for increased port density per unit of floor
space.
The chassis is a rigid sheet metal structure that houses all the other router components.
The chassis measures 1.75 in. (4.45 cm) high, 9.4 in. (24 cm) deep, and 17.5 in. (44.5 cm)
wide. The outer edges of the mounting brackets extend the width to 19 in. (48 cm) (from
the front-mounting brackets to the rear of the chassis). The chassis installs in standard
300-mm deep (or larger) enclosed cabinets, 19-in. equipment racks, or telco open-frame
racks.
ACX1000 Router Description
The ACX1000 routers contain eight T1/E1 ports and twelve Gigabit Ethernet ports, eight
of which are RJ-45 ports. The ports labeled COMBO PORTS provide an additional four
RJ-45 ports or four Gigabit Ethernet SFP ports. You can use only one set of combination
ports at a time.
Figure 1 on page 4 and Figure 2 on page 4 show the front and rear views of the ACX1000
router.

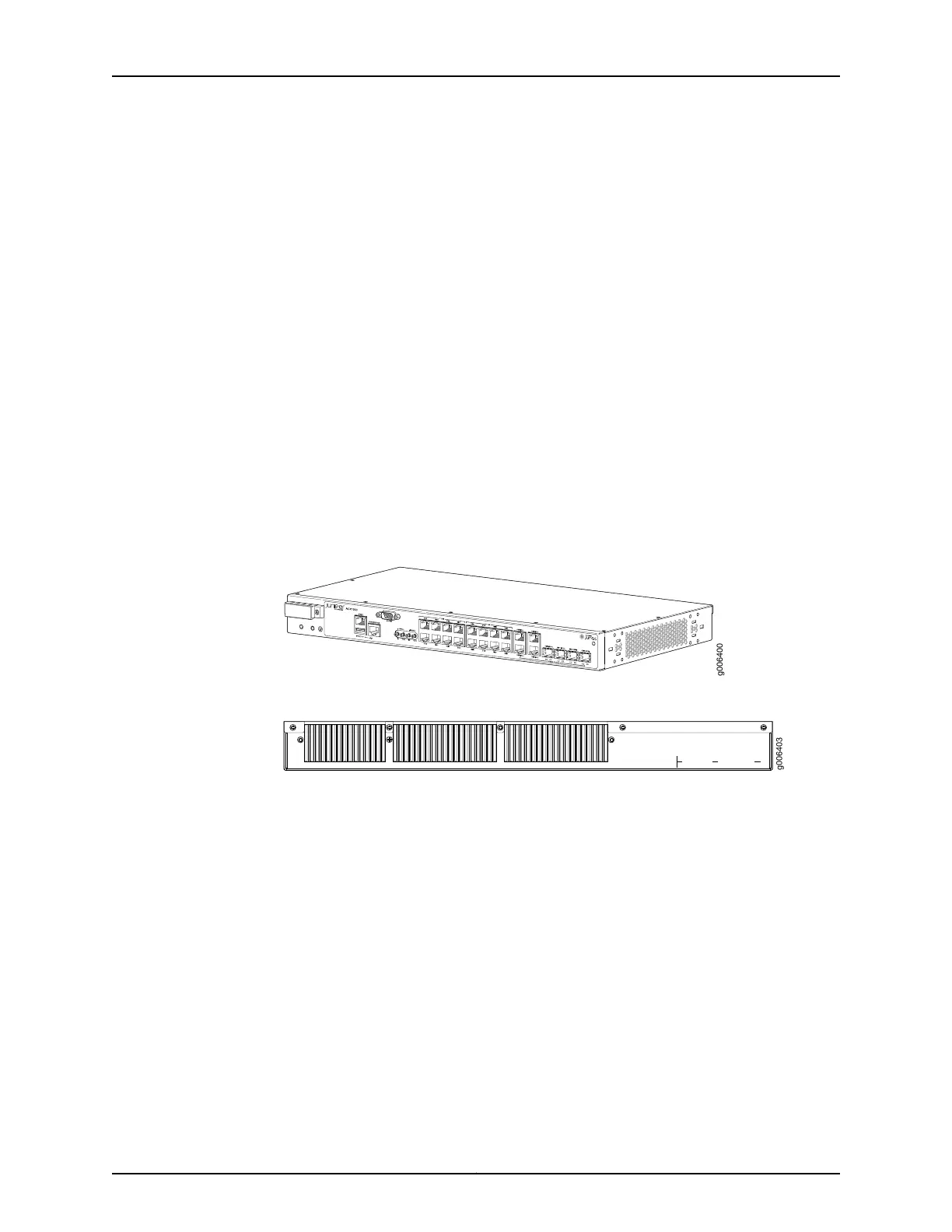

Figure 1: Front View of the ACX1000 Router
Figure 2: Rear View of the ACX1000 Router
ACX1100 Router Description
The ACX1100 routers contain twelve Gigabit Ethernet ports, eight of which are RJ-45
ports. The ports labeled COMBO PORTS provide an additional four RJ-45 ports or four
Gigabit Ethernet SFP ports. You can only use one set of combination ports at a time.
Figure 3 on page 5 and Figure 4 on page 5 show the front and rear views of the ACX1100
router.
