CHAPTER 16
Installing and Replacing Components
•
Replacing an ACX500 or ACX1100 Console or Auxiliary Cable on page 121
•
Replacing an ACX1000 or ACX1100 Management Ethernet Cable on page 122
•
Replacing an ACX1000 or ACX1100 Fiber-Optic Cable on page 123
•
Replacing an ACX1000 or ACX1100 Transceiver on page 125
Replacing an ACX500 or ACX1100 Console or Auxiliary Cable
1.
Removing an ACX500 or ACX1100 Console or Auxiliary Cable on page 121
2.
Installing an ACX1000 or ACX1100 Console or Auxiliary Cable on page 122
Removing an ACX500 or ACX1100 Console or Auxiliary Cable
To remove a serial cable connected to a console or auxiliary device:
1. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the
ESD points on the chassis.
2. Press the tab on the connector, and pull the connector straight out of the
CONSOLE/AUX port. Figure 29 on page 121 shows the connector.
3. Disconnect the cable from the console or auxiliary device.

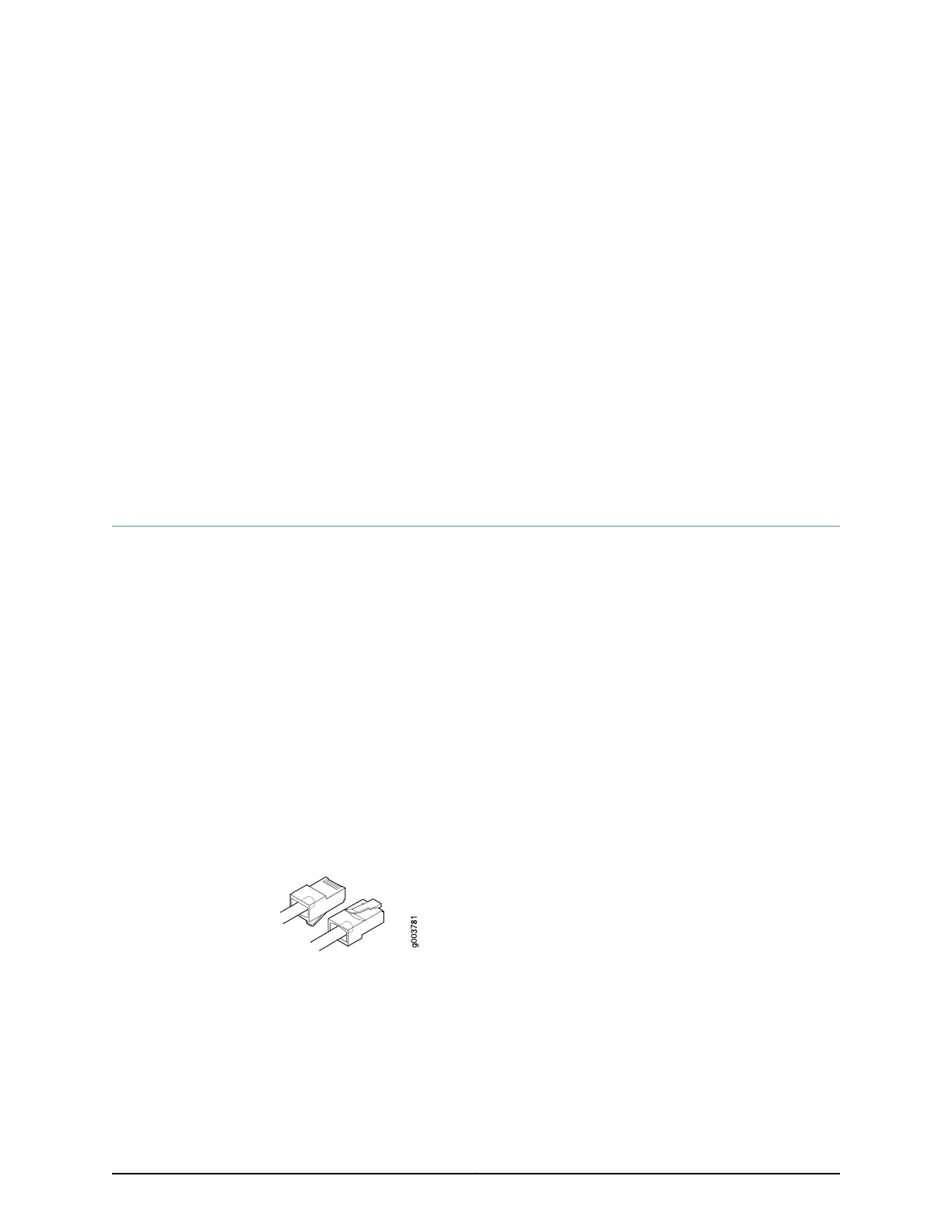

Figure 29: Ethernet Cable Connectors
