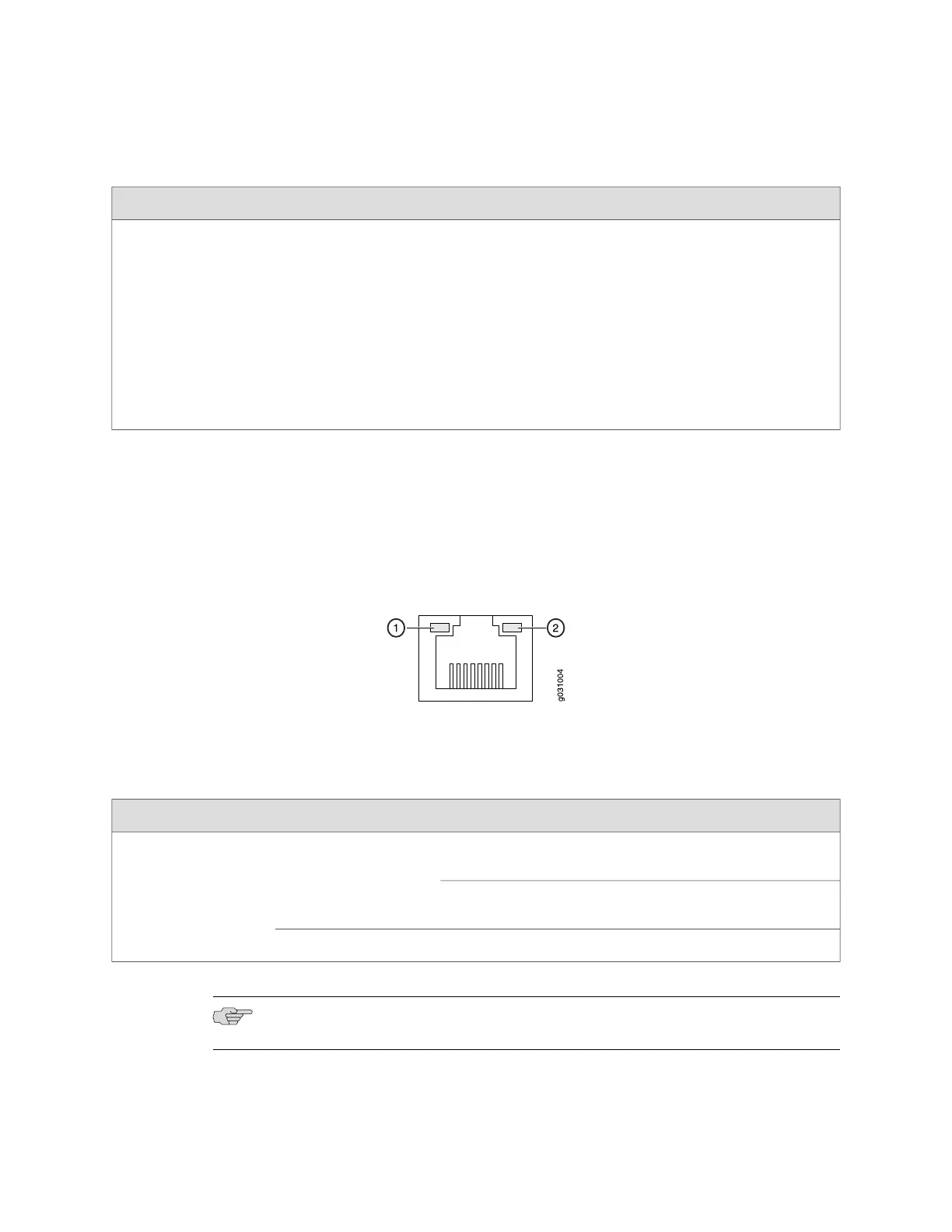

Page #30 background imageLoading...
Page #30 background image
Table 8: SRX100 Services Gateway Front Panel LEDs (continued)
UsageDescriptionComponentNumber
The Status LED can be used
to determine whether the
device is starting up, is
functioning normally, or has
failed.
The Status LED has the
following indicator colors:
Green and steadily on
indicates that the device
is functioning normally.
Amber and steadily on
indicates that the device
is starting up.
Red and steadily on
indicates that an error is
detected in the device.
Status LED4
SRX100 Services Gateway Ethernet Port LEDs
On the SRX100 Services Gateway, each Fast Ethernet port has one functional LED
on the left side that indicates Link and Activity. In Figure 5 on page 12, this LED is
marked as 1.
Figure 5: SRX100 Services Gateway Ethernet Port LEDs
The below table applies only to LED marked 1. The states of this LED are as follows:
Table 9: SRX100 Services Gateway Built-In Ethernet Port LEDs
DescriptionStateColorFunction
Link is active. Data communication is
taking place.
BlinkingGreenTX/RX/LINK
Link is active. No data communication
is taking place.
Steady
Link is inactive.OffUnlit
NOTE: The LED marked as 2 in the graphic is not functional in this release.
12 SRX100 Services Gateway LEDs
SRX100 Services Gateway Hardware Guide

Table of Contents

Other manuals for Juniper SRX100

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Juniper SRX100 and is the answer not in the manual?

Juniper SRX100 Specifications

General IconGeneral
Routing protocolsBGP, IS-IS, MPLS, OSPF
Switching protocolsVLAN 802.1Q, 802.3ad/LACP, STP
Supported network protocolsIPv4, IPv6, CLNS
Firewall securityYes
Security algorithms3DES, DES
Authentication methodRADIUS, RSA SecureID, LDAP
VPN supportIPsec VPN
Data transfer rate0.1 Gbit/s
Input voltage100 - 240 V
Input frequency50/60 Hz
Heat dissipation35 BTU/h
Power requirements100-240, 50/60
Power over Ethernet (PoE)No
Power consumption (typical)30 W
SafetyUL 60950-1, CSA 60950-1, AS / NZS 60950-1, AS / NZS 60950-1, CB Scheme, EN 60950-1
CertificationFCC Class B ICES class B AS / NZS CISPR22 Class B AS / NZS CISPR22 Class B VCCI Class B EN 55022 Class B, EN 300386
Mounting typeRack mounting
Internal memory1024 MB
Storage temperature (T-T)-20 - 70 °C
Operating temperature (T-T)0 - 40 °C
Weight and Dimensions IconWeight and Dimensions
Weight1100 g
Dimensions (WxDxH)216 x 147 x 36 mm
