ULTRAFLOW®54(H)/(J)
KamstrupA/S∙TechnicalDescription∙5512‐1554_J1_GB_04.2018
15
5 Dimensioned sketches
All measurements are in mm, unless otherwise stated.
5.1 ULTRAFLOW
®
54 (H)
ULTRAFLOW
®
54 (H), G¾B and G1B

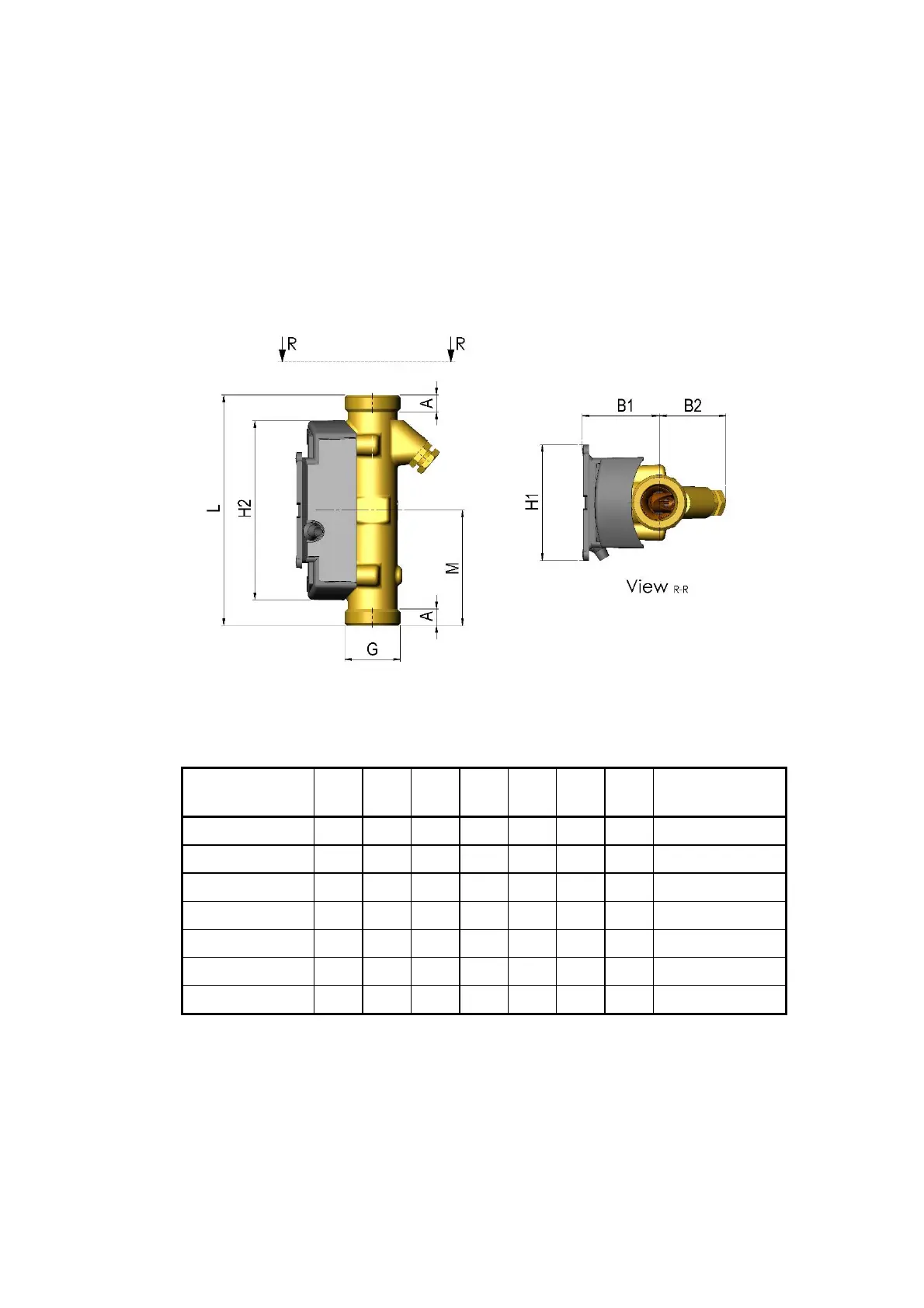

Figure 1
Thread EN ISO 228-1
Thread L M H2 A B1 B2 H1
Approx. weight
kg
G¾B (q
p
0.6;1.5) 110 L/2 86 8 37 32 55 0.41
G1B (q
p
1.5) 110 L/2 86 12 37 32 55 0.46
G1B (q
p
0.6;1.5) 130 L/2 86 12 37 32 55 0.51
G1B (q
p
2.5) 130 L/2 86 12 40 35 55 0.53
G¾B (q
p
1.5) 165 L/2 86 8 37 32 55 0.51
G1B (q
p
0.6;1.5) 190 L/2 86 12 37 32 55 0.61
G1B (q
p
2.5) 190 L/2 86 12 40 35 55 0.67
Table 9
