ULTRAFLOW®54(H)/(J)
84
KamstrupA/S∙TechnicalDescription∙5512‐1554_J1_GB_04.2018
11.2.5 Print Label
This menu point enables you to print new type labels for Pulse Divider.
”Country code”: Select country code for Pulse Divider. Appears from Pulse Divider type label.
”Module”: Select output module. Appears from Pulse Divider type label.
”Power supply”: Select power supply. Appears from Pulse Divider type label.
”ULTRAFLOW
®
pulse factor (CCC)“: Select ULTRAFLOW
®
pulse factor. Appears from Pulse Divider type label.
”Pulse Divider pulse factor (DD)”: Select pulse factor of Pulse Divider. Appears from Pulse Divider type label.
”Pulse duration (E)”: Select pulse duration of Pulse Divider. Appears from Pulse Divider type label.
”SW: Revision”: Pulse Divider software revision. Appears from Pulse Divider type label.
”Serial No.”: Pulse Divider serial number: Appears from Pulse Divider type label.
”Year”: Pulse Divider production year: Appears from Pulse Divider type label.
”Offset X”: Horizontal offset for printing of label (positive value: Offset to the right).
”Offset Y”: Vertical offset for printing of label (positive value: Offset downwards).
”Example”: Shows examples of Pulse Divider type label with selected values.
”Print”: Prints type label on selected printer.
”Select label printer”: Select printer.

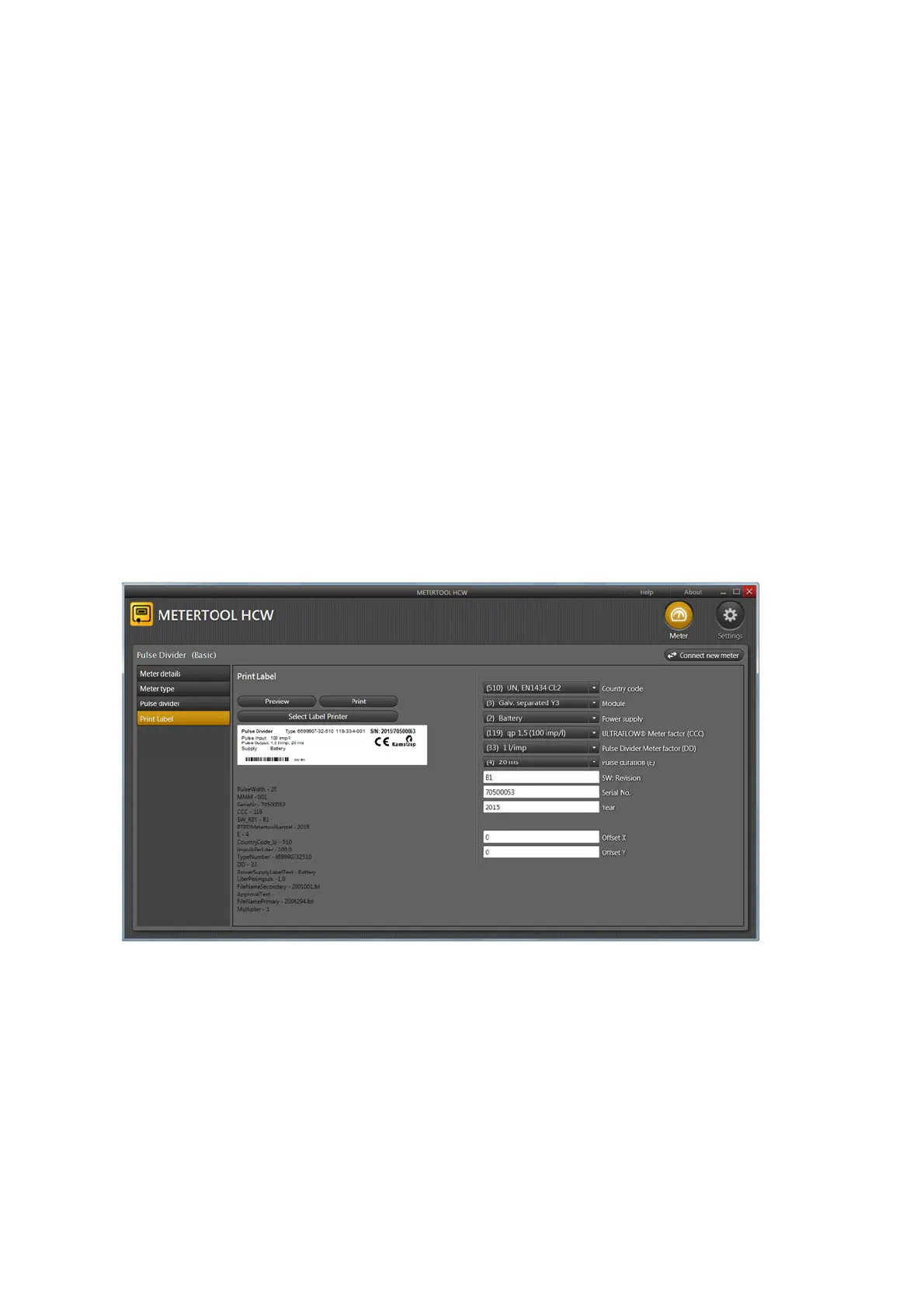

Figure 71. Print label.
Note: Replacing type label of Pulse Divider, legal marking requirements must be taken into account.
