7.5.3 Pulse Transmitter/Pulse Divider
Note: At medium temperatures above 90 °C calculator and Pulse Transmitter/Pulse Divider must not be mounted
on the flow sensor. Instead wall mounting is recommended.

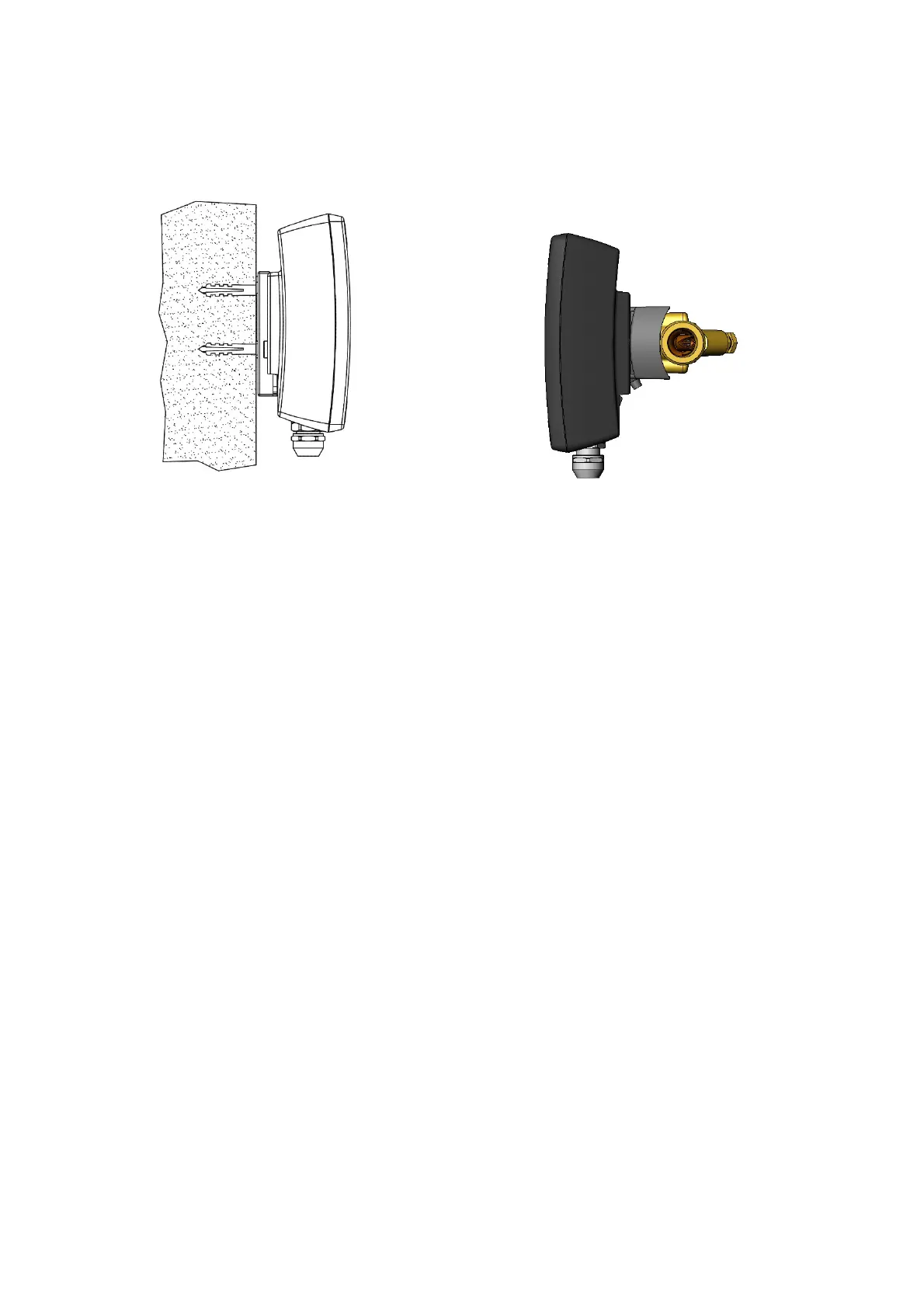

Figure 18. Wall mounted Pulse
Transmitter/Pulse Divider
Figure 19. Pulse Transmitter/Pulse Divider
mounted on ULTRAFLOW
®
54 (H).
