ULTRAFLOW®54(H)/(J)
26
KamstrupA/S∙TechnicalDescription∙5512‐1554_J1_GB_04.2018
7.5.1.3 Installations at ground level

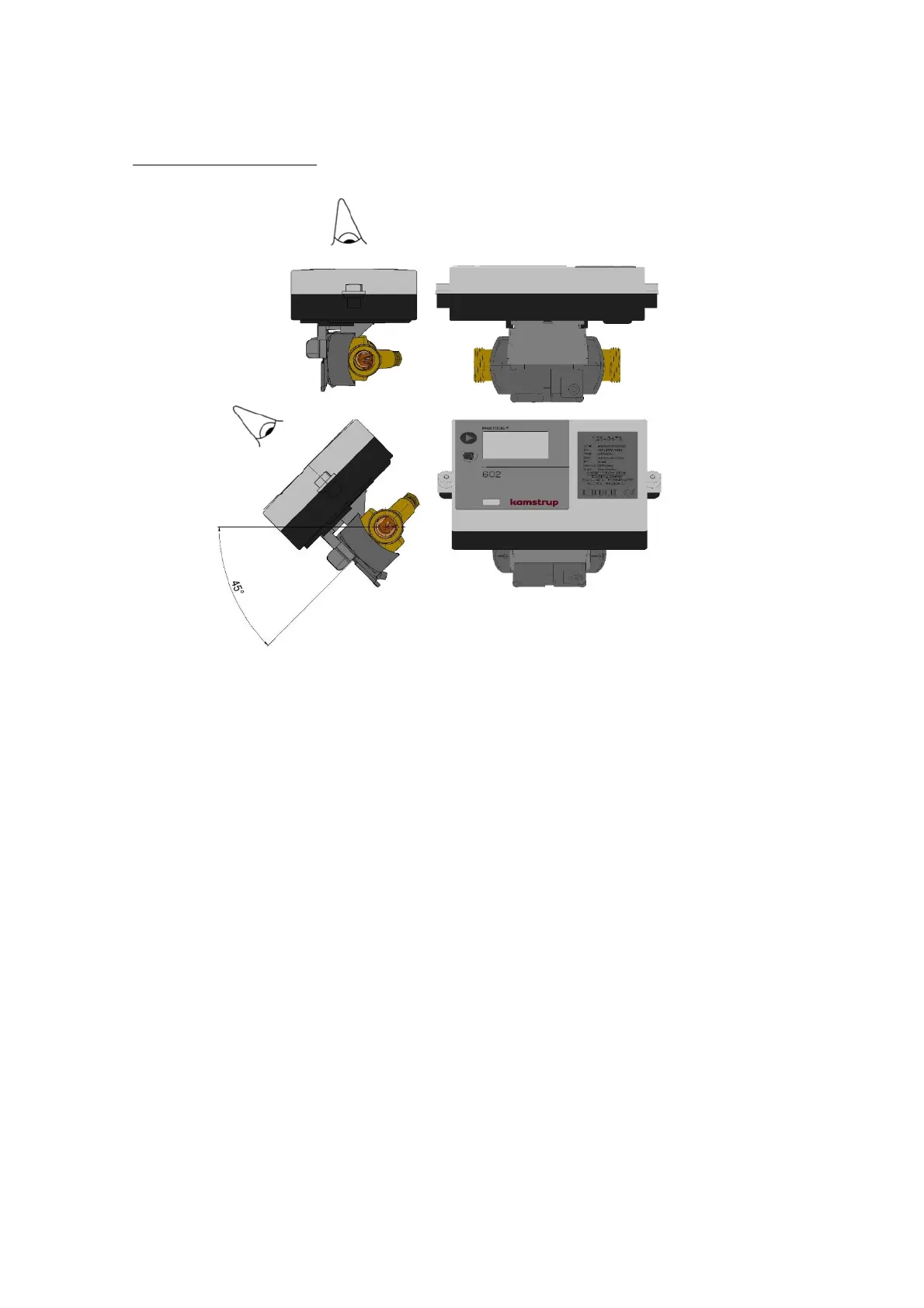

Figure 15. MULTICAL
®
mounted on ULTRAFLOW
®
54 (H) when installed at ground level.
In case of installations at ground level, it can be of advantage to mount MULTICAL
®
directly on ULTRAFLOW
®
by
means of the provided angle fitting. ULTRAFLOW
®
can be turned -45° downwards to optimise the readability of the
MULTICAL
®
display.
