ULTRAFLOW®54(H)/(J)
44
KamstrupA/S∙TechnicalDescription∙5512‐1554_J1_GB_04.2018
8.5 Pulse output of ULTRAFLOW
®
ULTRAFLOW
®
Type Push-Pull
Output impedance ~10 k
Pulse duration 2…5 ms
Duration of pause Depending on actual pulse frequency

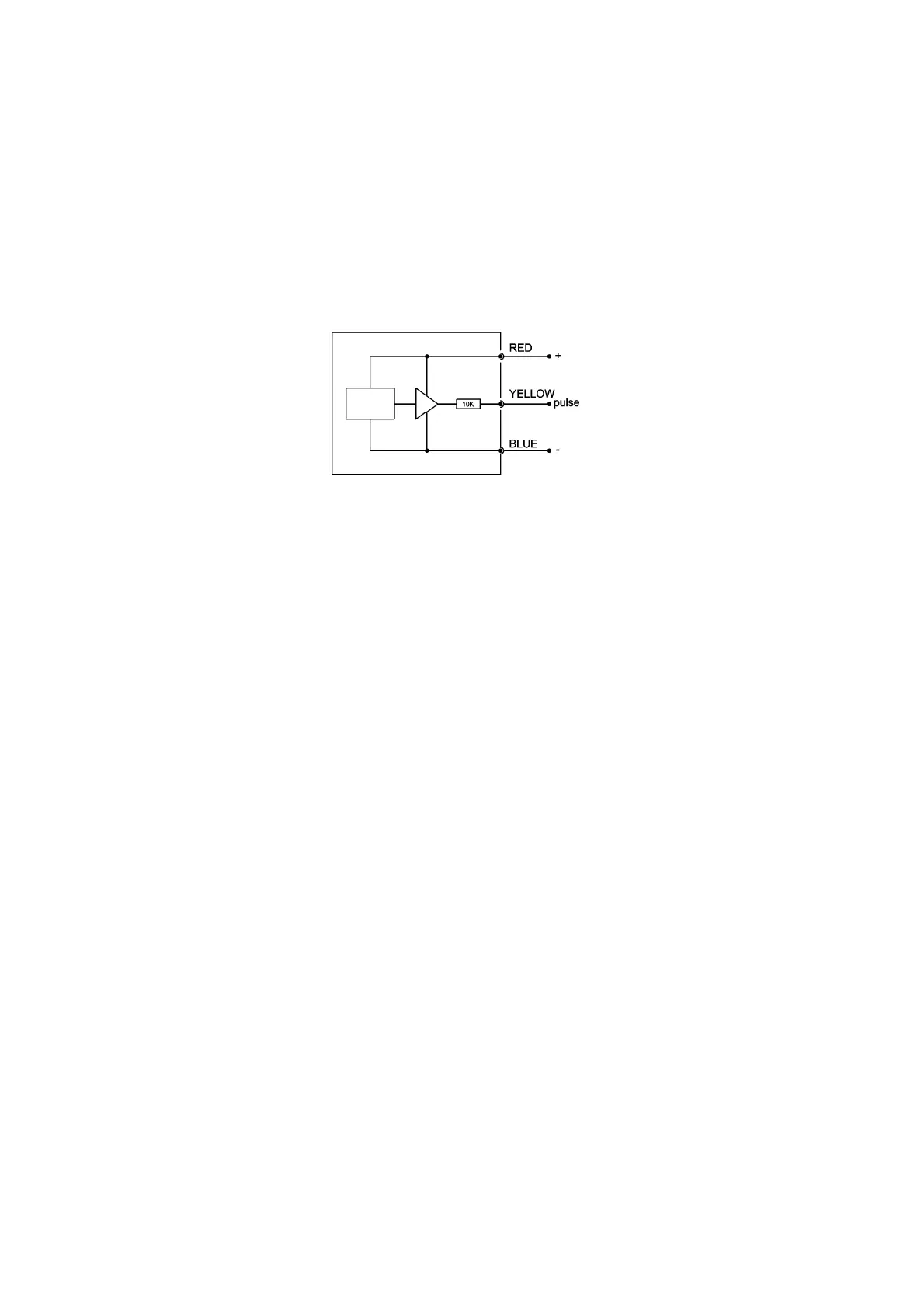

Figure 38. Block diagram for ULTRAFLOW
®
.
