ULTRAFLOW®54(H)/(J)
KamstrupA/S∙TechnicalDescription∙5512‐1554_J1_GB_04.2018
81
11.2.4 Pulse divider
Configuration of Pulse Divider is used for adapting flow signals to calculators, e.g. if ULTRAFLOW
®
is connected to
a "foreign" calculator, which does not support Kamstrup's quick pulses.
”ULTRAFLOW
®
pulse factor (CCC)“: Based on ULTRAFLOW
®
pulse factor. Appears from ULTRAFLOW
®
type label.
”Pulse Divider pulse factor (DD)”: Only valid pulse factors can be selected.
”Pulse duration
(
E
)
”: Pulse Divider pulse duration. Only valid pulse durations can be
selected.
”Write”: Programs the Pulse Divider with the selected data.

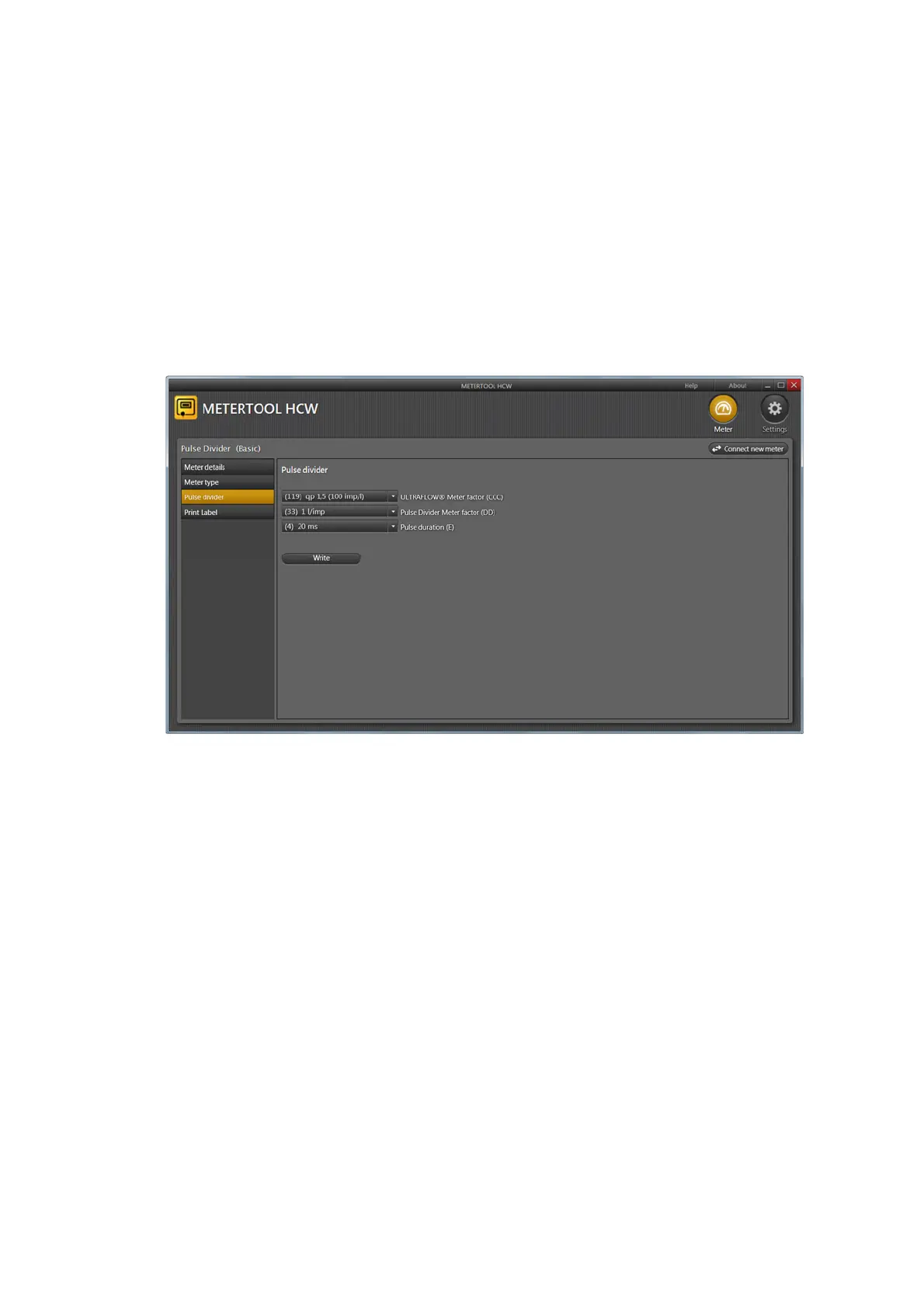

Figure 70. Pulse divider.
See Table 28 and Table 29 for valid configuration variants.
