7.4 Humidity and condensation
Wires/cables must in general hang freely downwards after cable connections to form a drip nose for drainage of
water and condensation.
7.4.1 Orientation of Pulse Transmitter and Pulse Divider
Mounting Pulse Transmitter and Pulse Divider, the cable connections must always be horizontally or downwards
oriented in order to avoid the risk of water and condensation being led into the electronics box via the cables.
This is especially important in moist environments.
Furthermore, wires/cables must in general hang freely downwards after cable connections to form a drip nose for
drainage of water and condensation.

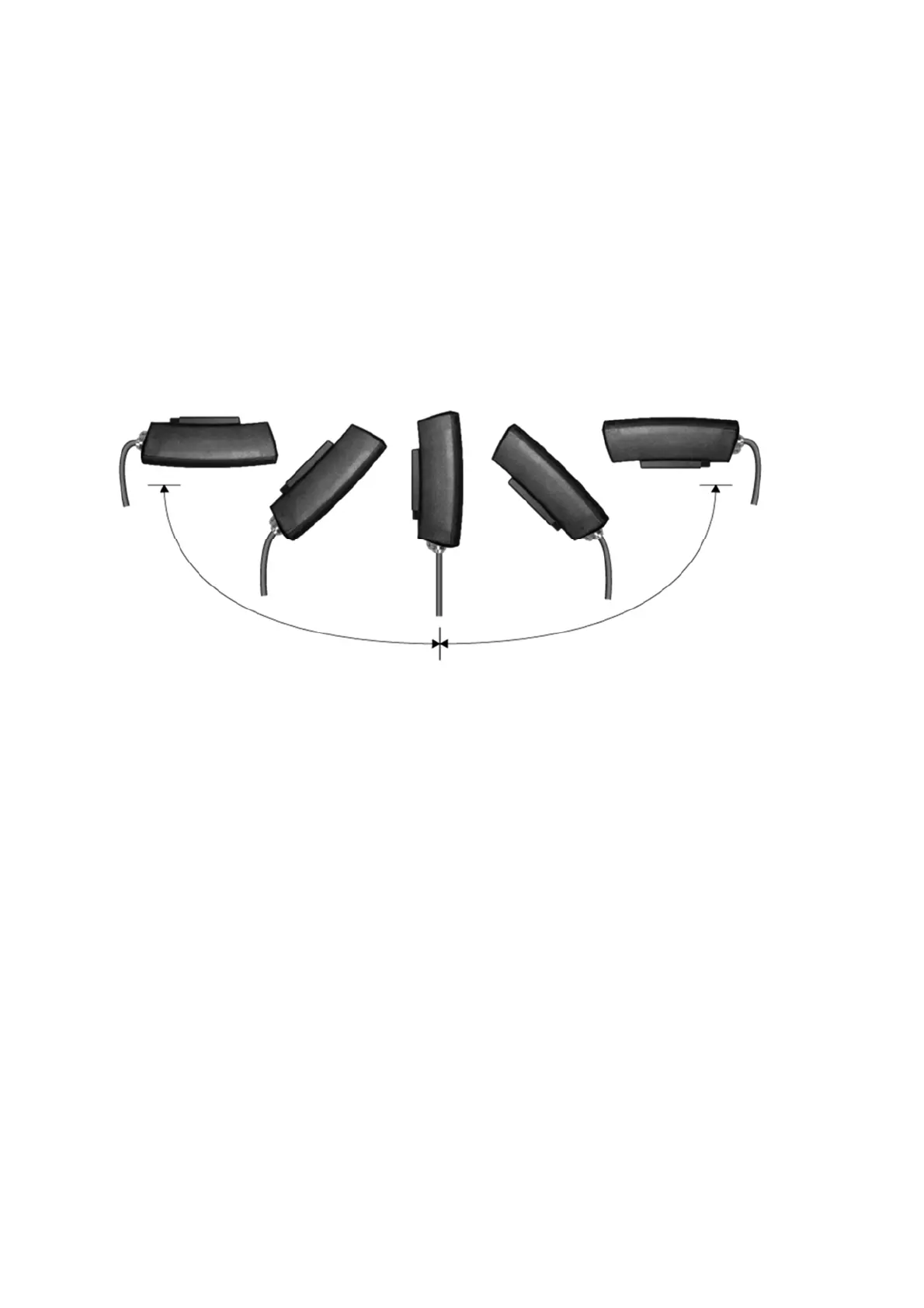

Figure 12. Orientation of Pulse Transmitter/Pulse Divider
Max. 90° Max. 90°
