10.4.4 Pulse Divider type no. 6699-607
Setting up and programming Pulse Divider type no. 6699-607: A Pulse Divider is used for adapting the flow signal
to a calculator, e.g. if a “foreign” calculator is connected to Kamstrup ULTRAFLOW
®
and the coding (number of
pulses CCC or pulse duration) does not correspond.

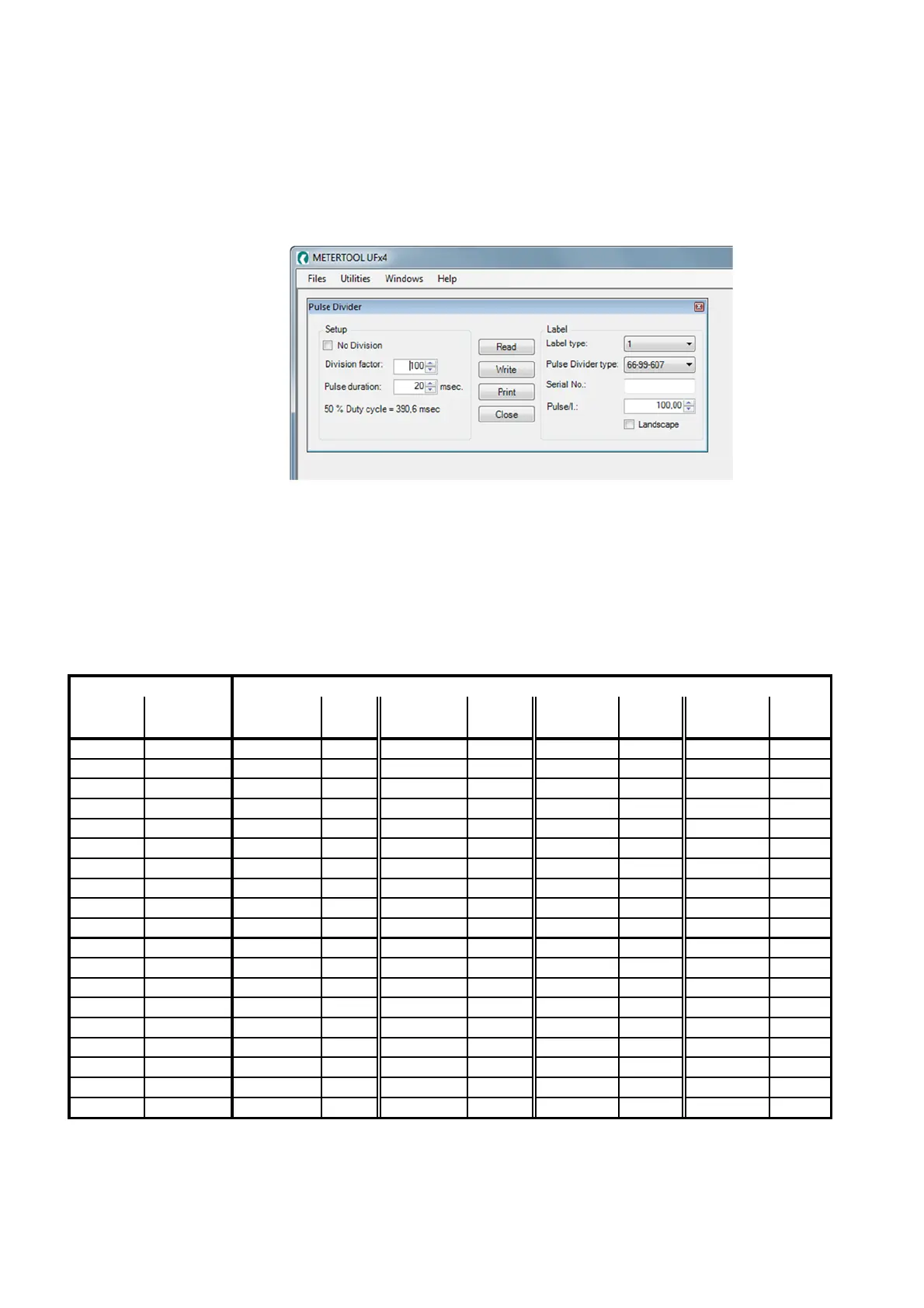

Open ”Pulse Divider”
”Read”: Reads the current coding of the Pulse Divider.
”Write”: Programs the Pulse Divider with the entered data.
”Label type”: Makes it possible to select position on Kamstrup label sheet.
”Print”: Prints Pulse Divider label on the standard printer selected in the PC.
”Close”: Terminates Pulse Divider.
q
p
Pulse factor Pulse factor Divider Pulse factor Divider Pulse facto
r
Divider Pulse facto
r
Divider
[m³/h] [imp/l] [l/imp] [l/imp] [l/imp] [l/imp]
0.6 300 1 300 2.5 750
1.5 100 1 100 2.5 250 10 1000
2.5 60 1 60 2.5 150 10 600
3 50 1 50 2.5 125 10 500
3.5 50 2.5 125 10 500 25 1250
6 25 10 250 25 625
10 25 10 250 25 625
10 15 10 150 25 375
15 10 10 100 25 250 100 1000 250 2500
25 10 10 100 25 250 100 1000 250 2500
25 6 10 60 25 150 100 600 250 1500
40 5 25 125 100 500 250 1250
60 2.5 100 250 250 625
100 1.5 100 150 250 375
150 1 100 100 250 250 1000 1000 2500 2500
250 0.6 100 60 250 150 1000 600 2500 1500
400 0.4 250 100 1000 400 2500 1000
600 0.25 1000 250 2500 625
1000 0.25 1000 250 2500 625
ULTRAFLOW
®
Pulse Divider
Table 25. Pulse division table (pulse duration of divided pulses 100 ms default)
