ULTRAFLOW®54(H)/(J)
22
KamstrupA/S∙TechnicalDescription∙5512‐1554_J1_GB_04.2018
7.1 Mounting of ULTRAFLOW
®
54 (H)/(J) (separately mounted)

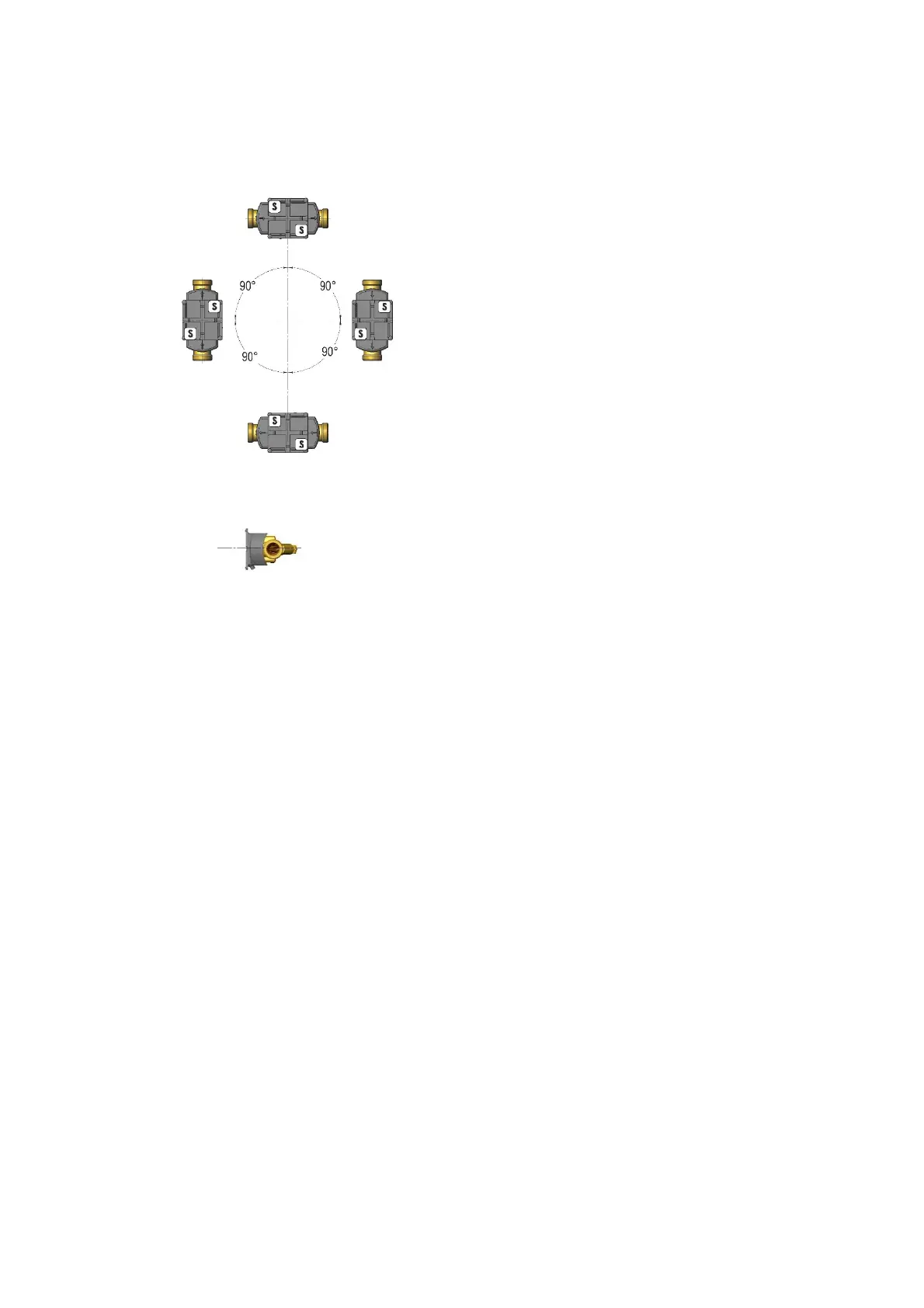

Figure 10
ULTRAFLOW
®
54 can be installed horizontally, vertically,
or at an angle.
Important!
The plastic casing ought to be placed on the side (when
installed horizontally).
