Keithley 6430 User Manual

17-96 SCPI Command Reference
The queue for the :KEY? query command can only hold one key-press.
When :KEY? is sent over the bus, and the SourceMeter is addressed to talk,
the key-press code number for the last key pressed (either physically or with
:KEY) is sent to the computer.
The key-press code number for the last key pressed (either physically or
with :key) is sent to the computer.
Read version of SCPI standard
:VERSion?
:SYSTem:VERSion? Read SCPI version
Description This query command is used to read the version of the SCPI standard being
used by the SourceMeter. Example code:
1996.0
The above response message indicates the version of the SCPI standard.
6430 SUB-FEMTOAMP SourceMeter ®
OUTPUT
EDIT
TOGGLE
POWER
RANGE
DISPLAY
ON/OFF
AUTO
RANGE
1
2
8
26
19125292215
16
23
31
7
30
6
14
21
13
20
28
4
27
3
11
18
10
17
9
24
Parameters
<NRf> = 1 RANGE up arrow key
2 SOURCE down arrow key
3 left arrow key
4 MENU key
5 FCTN key
6 FILTER key
7 SPEED key
8 EDIT key
9 AUTO key
10 right arrow key
11 EXIT key
12 V (SOURCE) key
13 LIMITS key
14 STORE key
15 V (MEAS) key
16 TOGGLE key
17 RANGE down arrow key
18 ENTER key
19 I (SOURCE) key
20 TRIG key
21 RECALL key
22 I (MEAS) key
23 LOCAL key
24 ON/OFF key
25 - (not used)
26 SOURCE up arrow key
27 SWEEP key
28 CONFIG key
29 Ω key
30 REL key
31 DIGITS key

EXIT ENTER
CONFIG MENU
SWEEP
TRIG
REL
LOCAL
FILTER
LIMIT
DIGITS SPEED
V
Ω
MEAS
I
FCTN
V
I
SOURCE
2 30
1
6 7
8 9
4
+/-
5
STORE
RECALL
EDIT

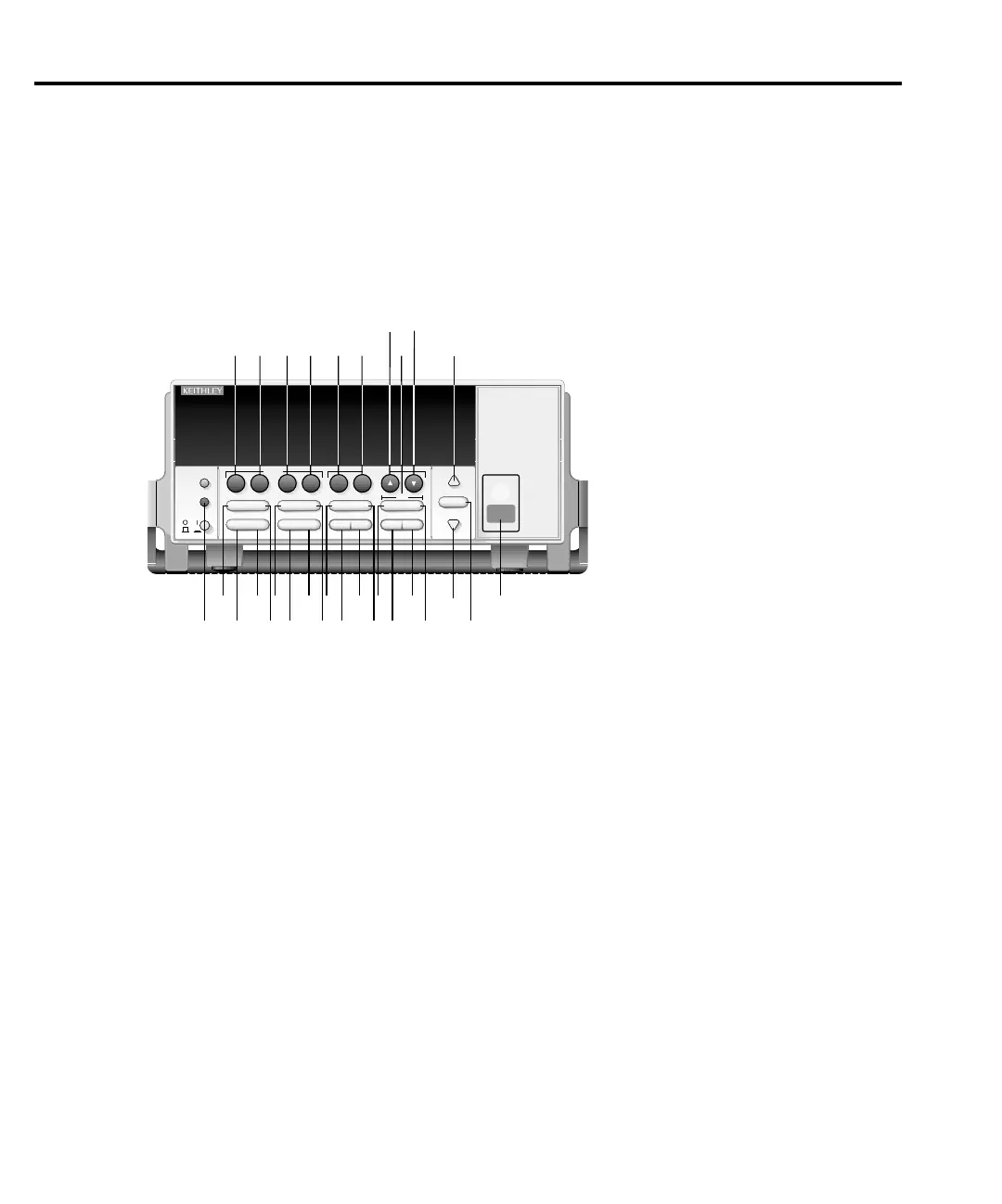

Figure 17-3
Key-press
codes
