18-22 Performance Verification
1pA-100nA range accuracy
1. With the power off, connect the digital multimeter and calibration standard to the
Model 6430 mainframe and Remote PreAmp as shown in Figure 18-7. (Connect the
mainframe INPUT/OUTPUT HI and LO jacks to DMM INPUT HI and LO respec-
tively. Connect the PreAmp IN/OUT HIGH jack directly to the Model 5156 OUTPUT
jack, and connect the BNC shorting cap to the 100GΩ resistance jack. Also be sure to
remove the link between the Model 5156 SHIELD and CHASSIS jacks.)
WARNING:NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
WARNING:NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
MADE IN
U.S.A.
INPUT/
OUTPUT
42V
PEAK
250V
PEAK
TRIGGER
LINK
4-WIRE
SENSE
HI
LO
LINE RATING
100-240VAC
50, 60, HZ
100VA MAX
RS232
IEEE-488
(ENTER IEEE ADDRESS
WITH FRONT PANEL MENU)
250V
PEAK
5V
PEAK
5V
PEAK
5V
PK
V, Ω,
GUARD
GUARD
SENSE
LINE FUSE
SLOWBLOW
2.5A, 250V
INTERLOCK-
DIGITAL I/O
REMOTE
PreAmp
!
Connect PreAmp IN/OUT HIGH Jack
Directly to 5156 OUTPUT Jack
using triax male-to-male Adapter
BNC Shorting Plug
(Connect to Resistor
Being used)
Note: Remove Link Between
SHIELD and CHASSIS
Mainframe/PreAmp Cable
Model 6430
Input HI
Input LO
Digital Multimeter
100GΩ
1 nF
100nF
10GΩ
1GΩ
100MΩ
Model 5156 Electrometer Calibration Standard

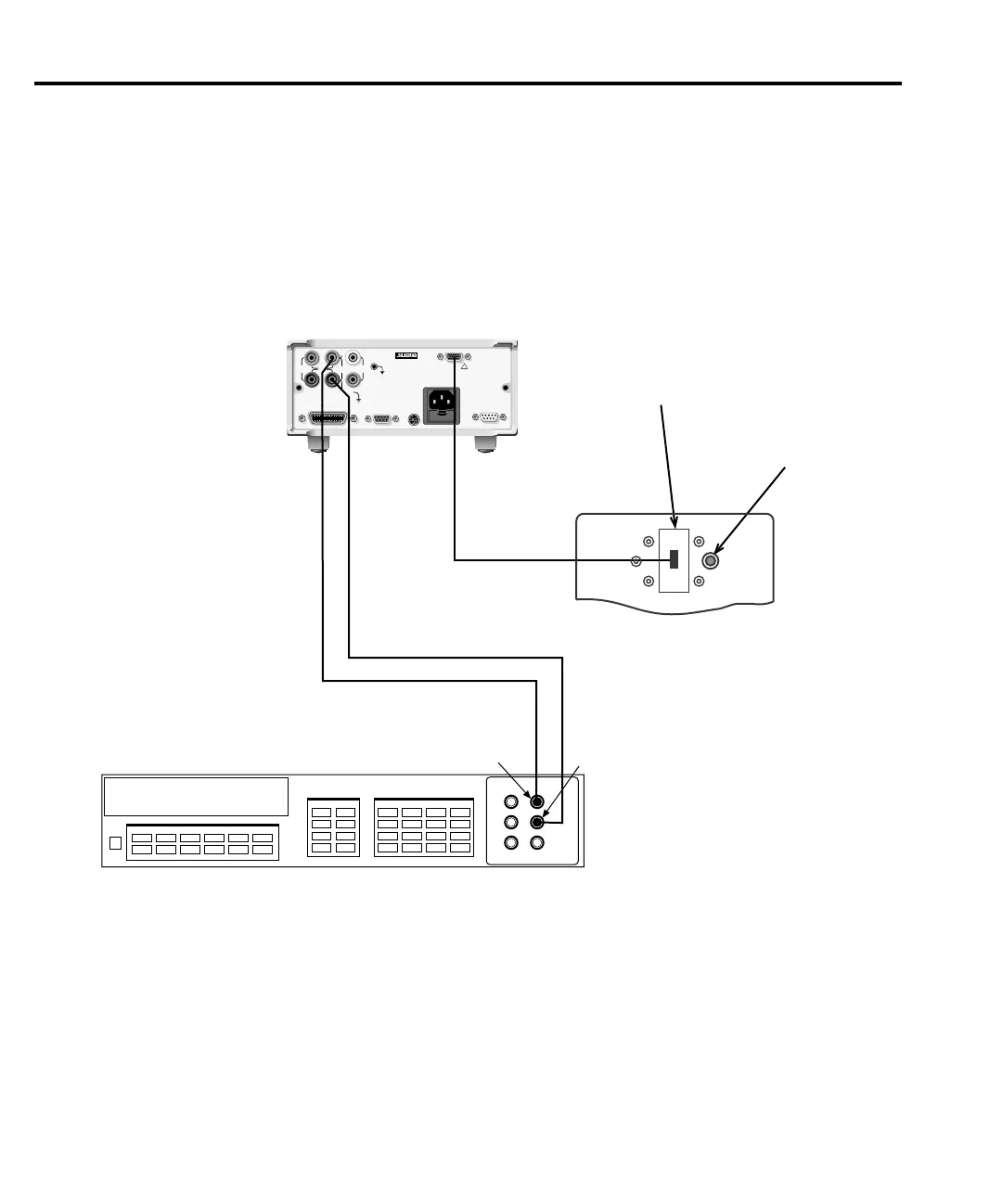

Figure 18-7
Connections for
1pA-100nA
range current
verification tests
