5 Math Waveforms
See Also • “Units for Math Waveforms" on page 101
Integrate
 dt (integrate) calculates the integral of the selected source. It shows the
accumulated amount of change.
You can use integrate to calculate the energy of a pulse in volt-seconds or
measure the area under a waveform by measuring the difference in the integrate
function value across the pulse or waveform.
 dt plots the integral of the source using the "Trapezoidal Rule". The equation is:
Where:
• I = integrated waveform.

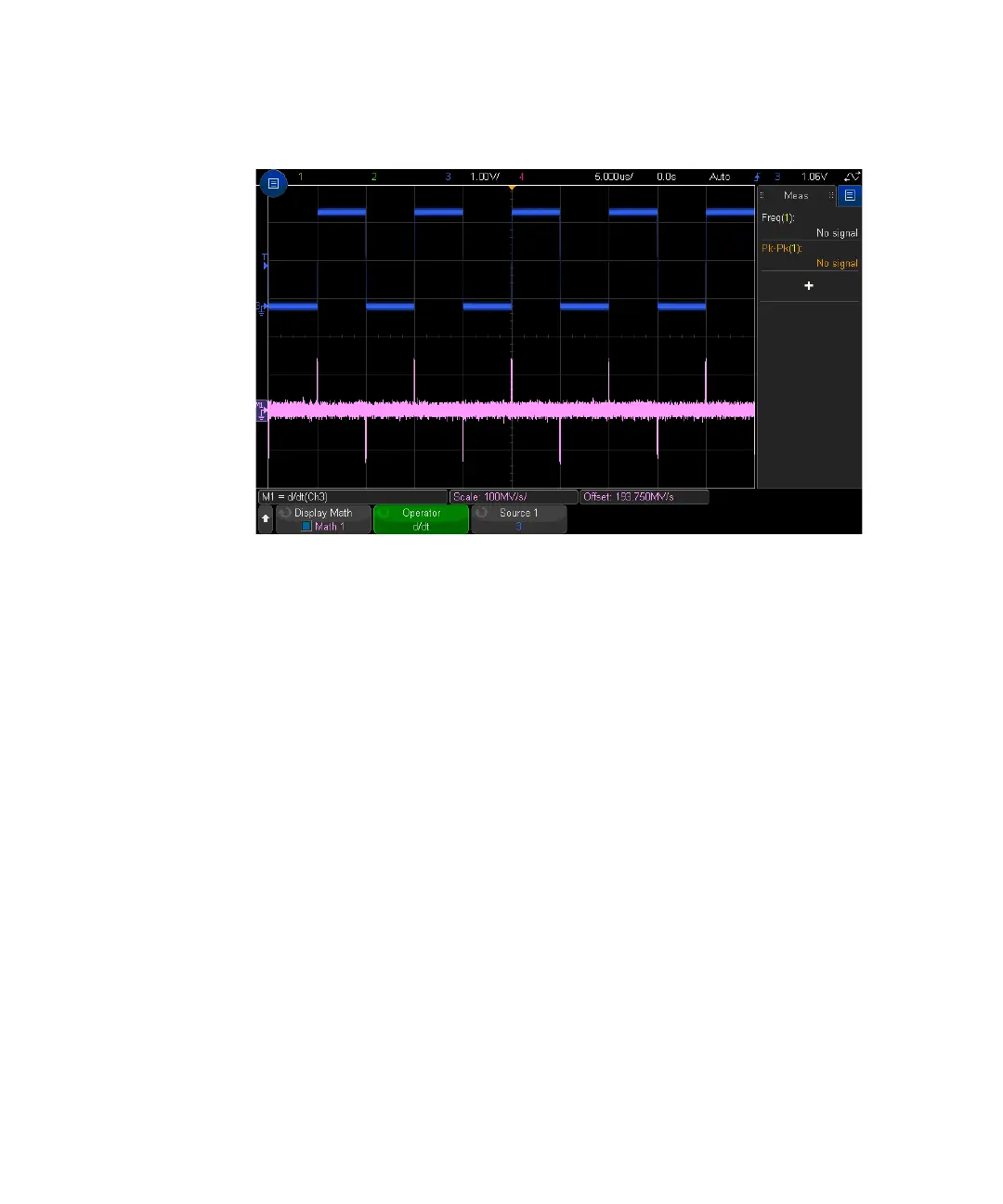

Figure 8 Example of Differentiate Function
I
n
= c
o
+Δt
∑
i=0
n
y
i
