When using the N2820A probe to make measurements on a battery-powered
(floating) device, always connect the supplied ground lead between ground on
your device and the probe's ground connector as shown in the following figure.
Simply snap the end of the ground lead onto the probe's connector. Without the
ground connection, the probe's common-mode input amplifier cannot properly
display waveforms.
Snapshot All
The Snapshot All measurement type displays a popup containing a snapshot of all
the single waveform measurements.
Charge Charge (in Amp-hours) is the measured area under
the waveform. See “Area" on page 266.
Average See “Average" on page 254.
Base See “Base" on page 252.
Peak-Peak See “Peak-Peak" on page 251.
DC RMS See “DC RMS" on page 255.
AC RMS See “AC RMS" on page 255.

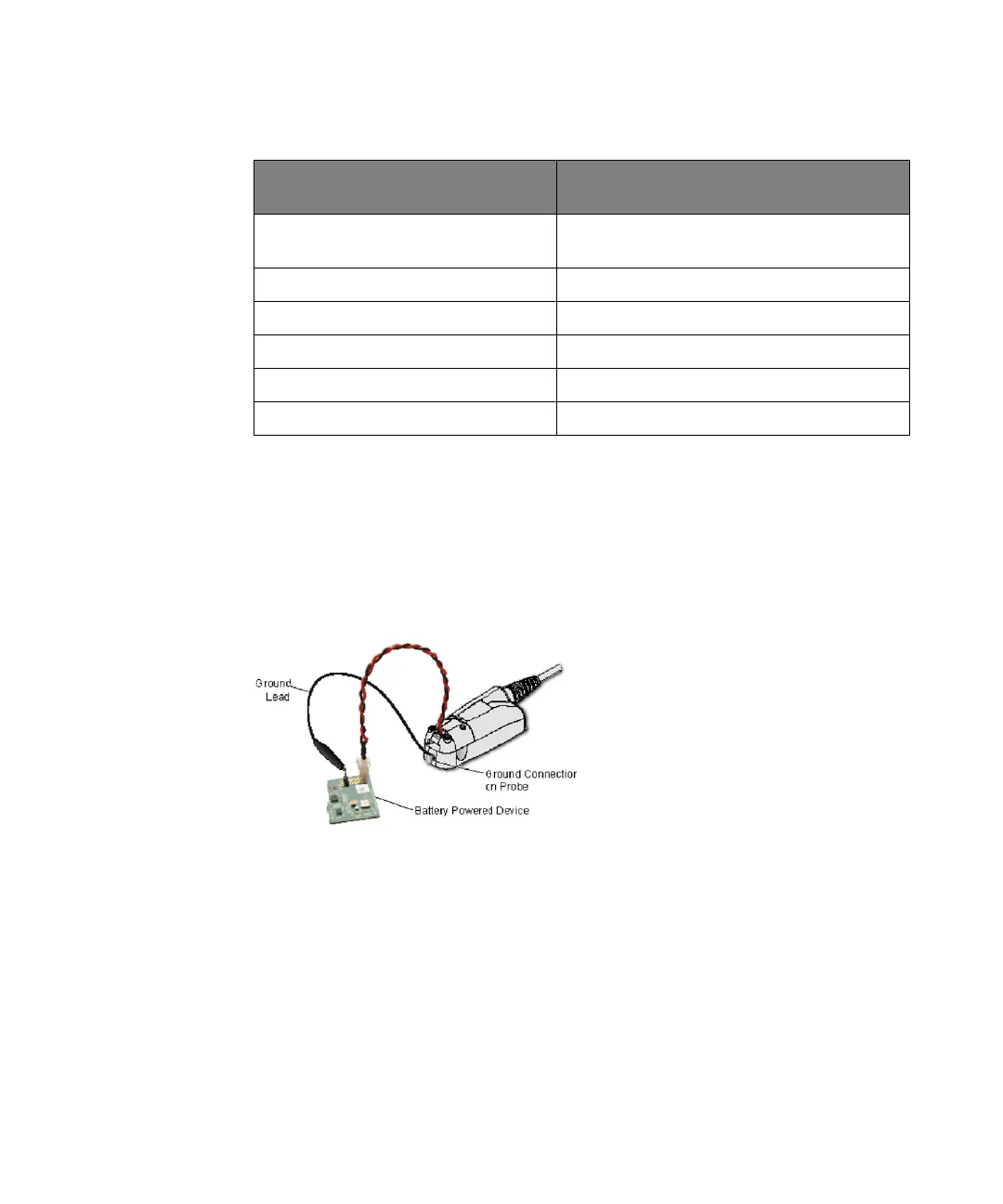

Figure 46 Measurements on Battery Powered Devices Using the N2820A Probe
Dual-Channel (N2820A Probe)
Measurement
Notes
