Use the Gain (A) softkey to specify the gain.
Use the Offset (B) softkey to specify the offset.
The Ax + B function differs from the Magnify math visualization function in that the
output is likely different than the input.
See Also • “Magnify" on page 121
Square
The square function calculates the square of the selected source, point by point,
and displays the result.
Press the Source softkey to select the signal source.
See Also • “Square Root" on page 113
Absolute Value
The absolute value function changes negative values in the input to positive values
and displays the resulting waveform.

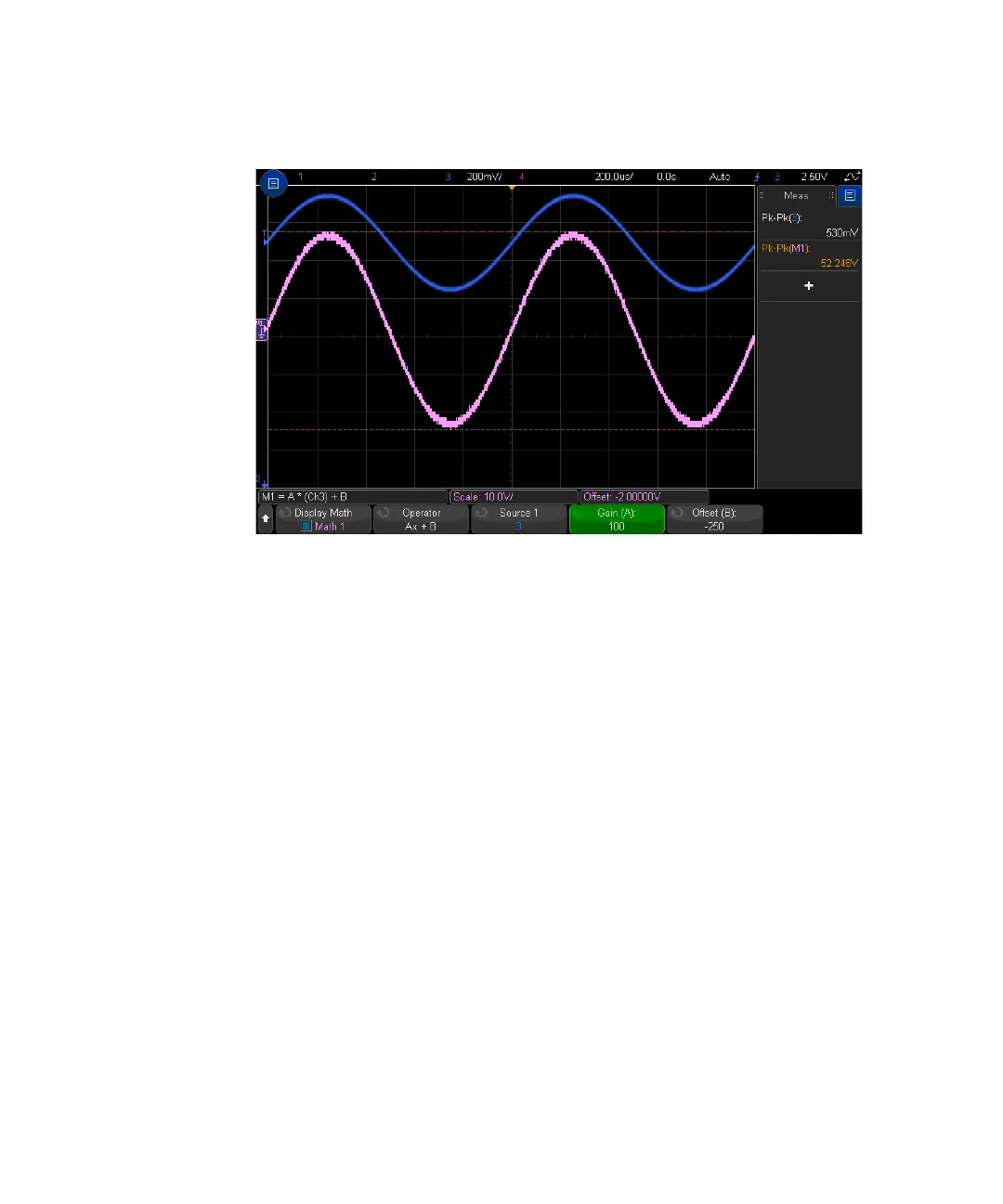

Figure 12 Example of Ax + B
