Waveform Generator 19
Keysight InfiniiVision 3000T X-Series Oscilloscopes User's Guide 311
To insert a point:
1 Press Point #; then, use the Entry knob to select the point after which the new
point will be inserted.
2 Press Insert Point.
All points are adjusted to maintain uniform time spacing between points.
To remove a point:
1 Press Point #; then, use the Entry knob to select the point you want to remove.
2 Press Remove Point.
All points are adjusted to maintain uniform time spacing between points.
Capturing Other Waveforms to the Arbitrary Waveform

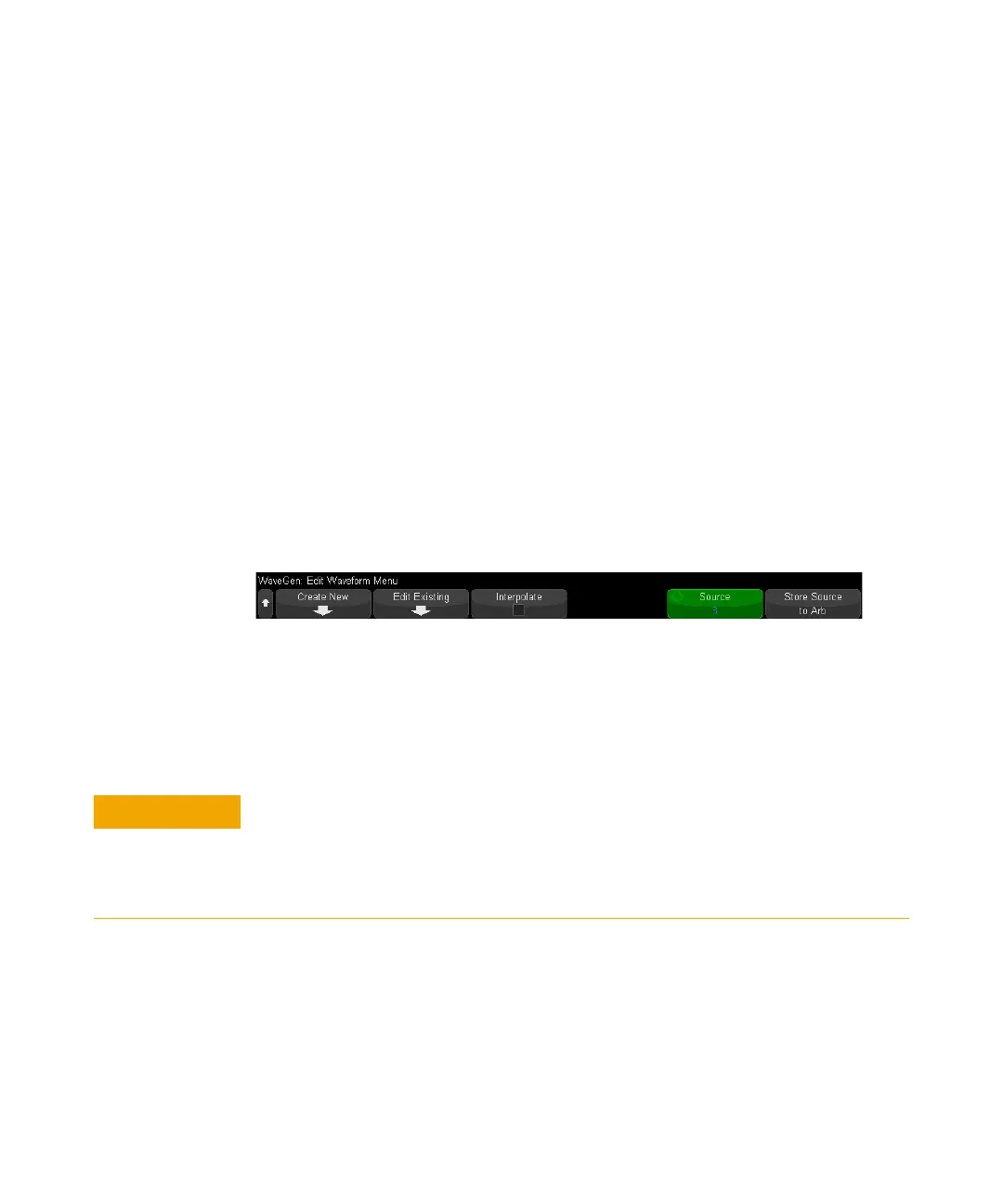

The Edit Waveform Menu is opened by pressing Edit Waveform in the main
Waveform Generator Menu.
To capture another waveform to the arbitrary waveform:
1 Press Source; then, use the Entry knob to select the analog channel, math, or
reference location whose waveform you wish to capture.
2 Press Store Source to Arb.
The source waveform is decimated into 8192 (maximum) or fewer arbitrary
waveform points.
When you create a new arbitrary waveform, the existing arbitrary waveform definition is
overwritten. Note that you can use the [Save/Recall] key and menu to save arbitrary
waveforms to one of four internal storage locations or to a USB storage device, and you
can recall them later. See “To save arbitrary waveforms" on page 328 and “To
recall arbitrary waveforms" on page 333.
